2007 Chevrolet Express 1500 RWD V8-5.3LFACTORY OEM SERVICE PROCEDURE
Antitheft and Alarm Systems: Locations
Immobilizer Component Views

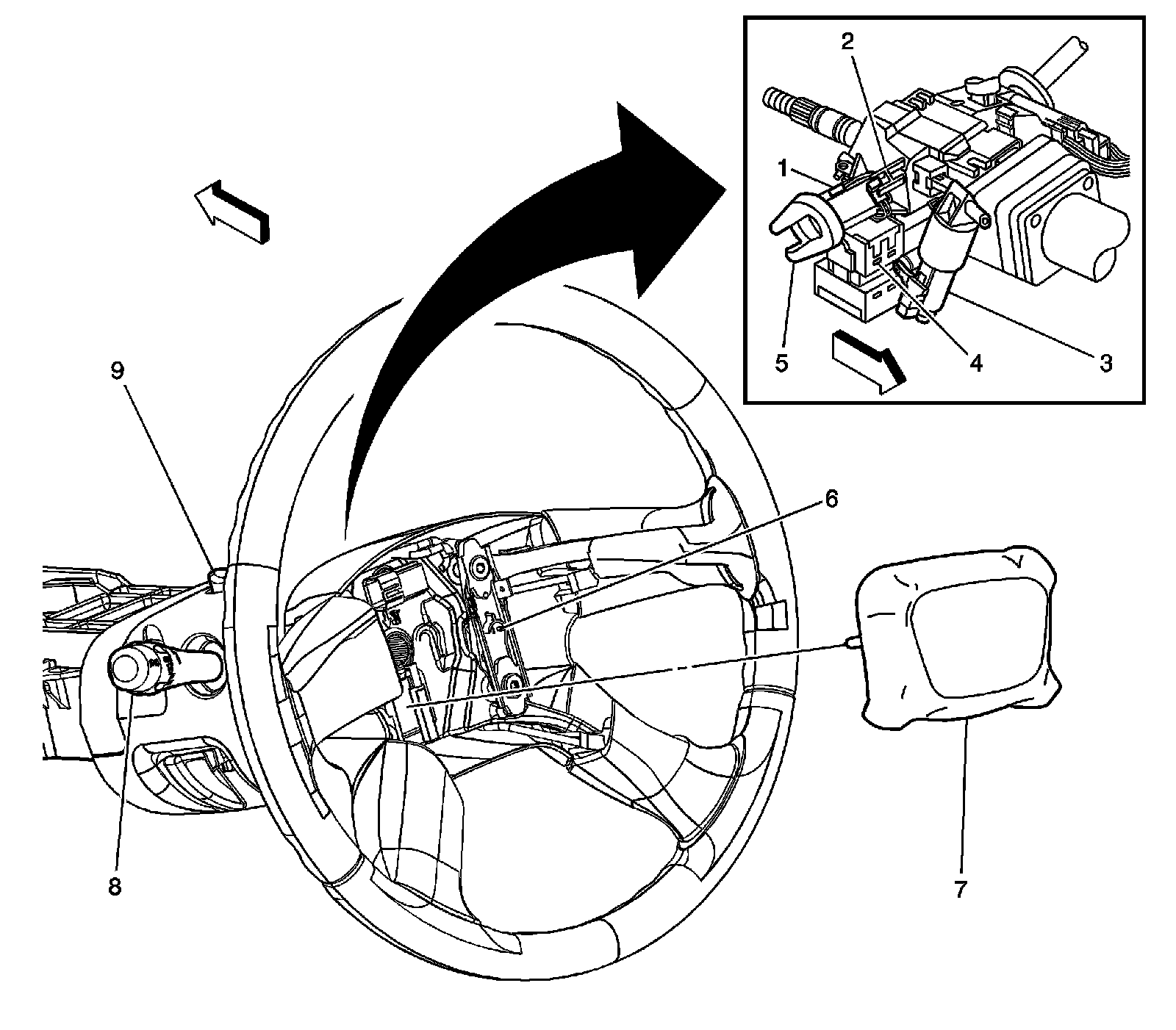

Upper Steering Column
1 - Passlock Sensor
2 - Ignition Key Alarm Switch
3 - Ignition Lock Cylinder Control Actuator
4 - Ignition Switch
5 - Ignition Key Cylinder
6 - Horn Switch
7 - Inflatable Restraint Steering Wheel Module
8 - Turn Signal/Multifunction Switch
9 - Hazard Switch
