2007 Chevrolet Express 1500 RWD V6-4.3LFACTORY OEM SERVICE PROCEDURE
Symptom Related Diagnostic Procedures
REAR WINDOW DEFOGGER INOPERATIVE
TEST DESCRIPTION

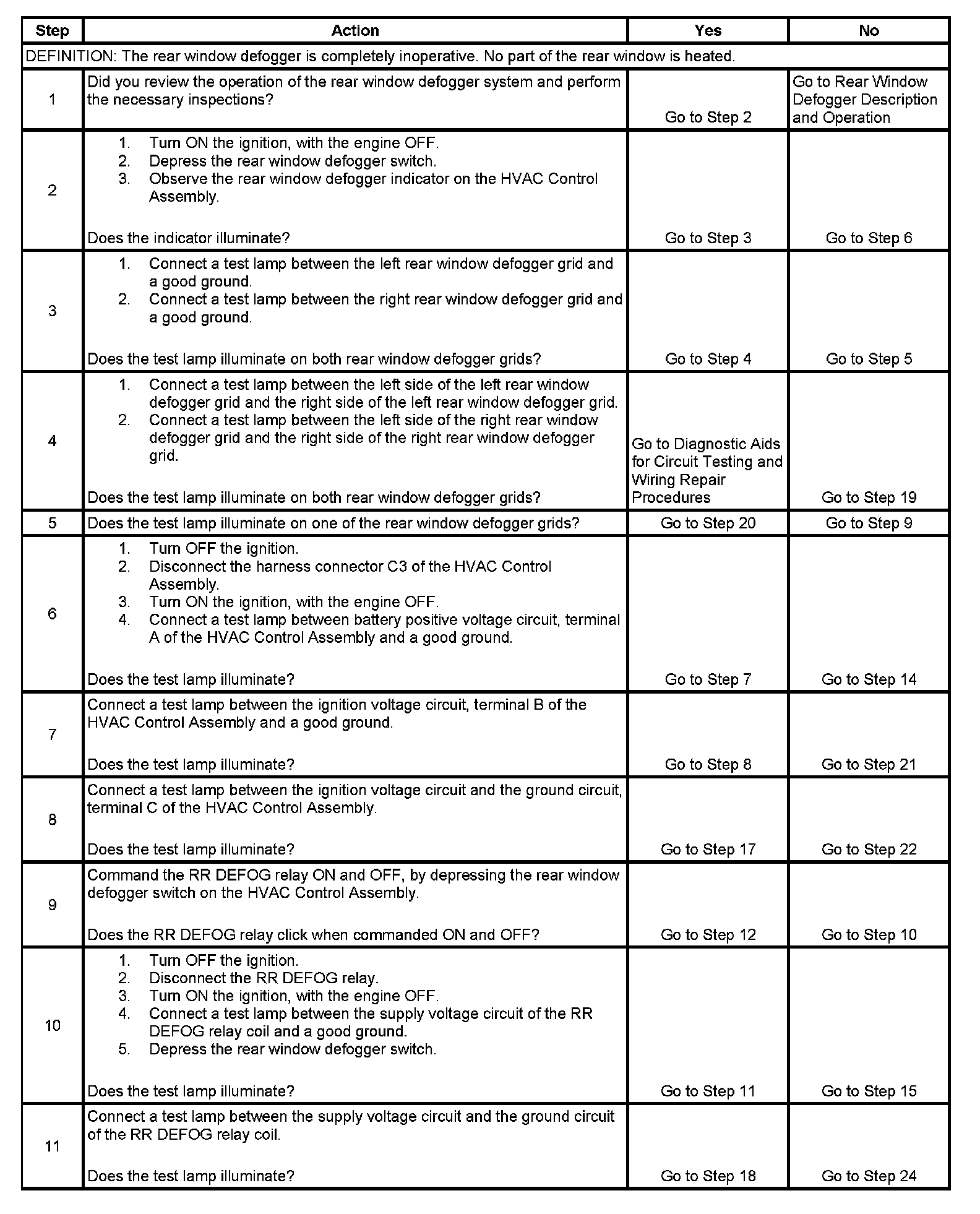

Step 1 - Step 11:

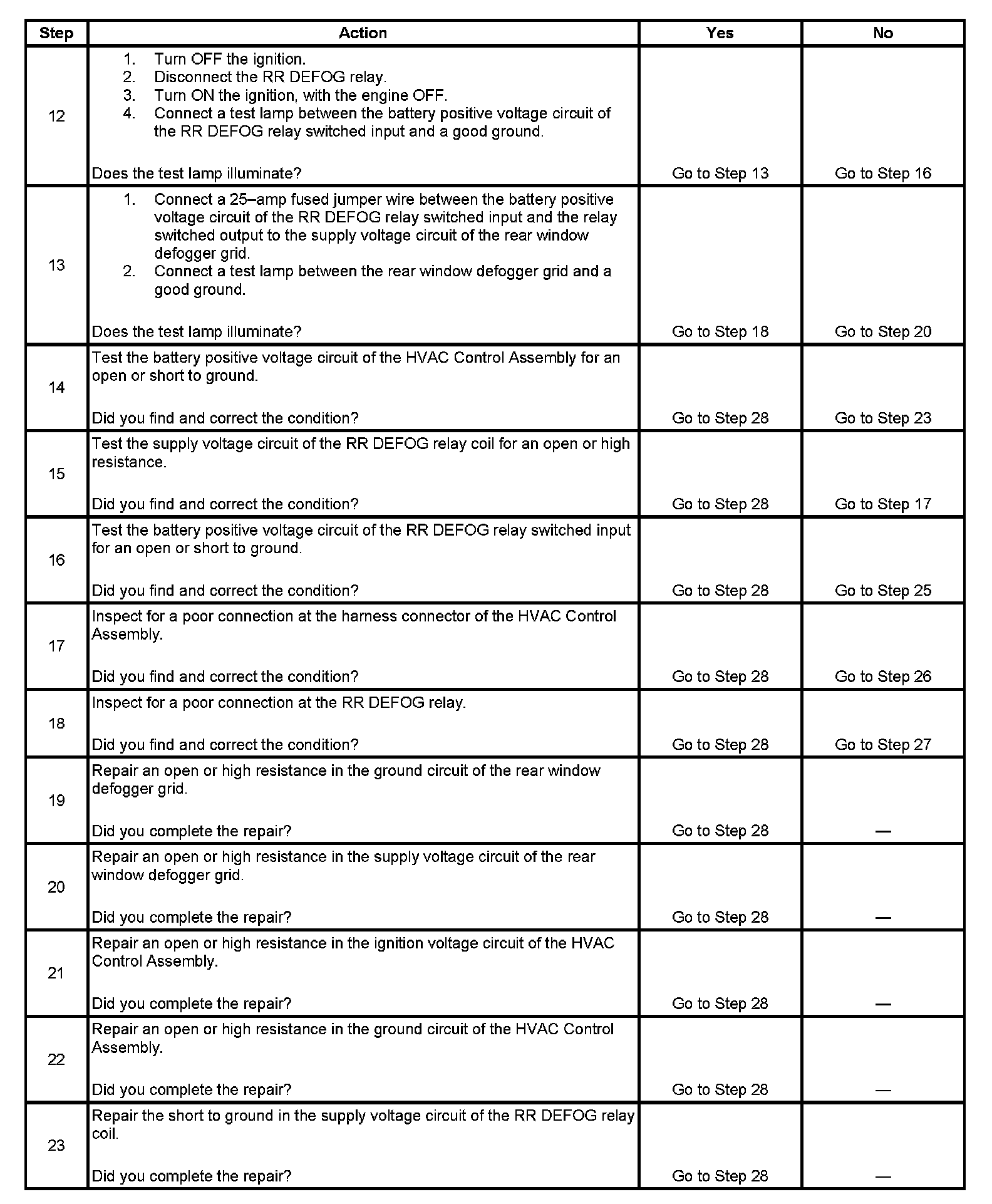

Step 12 - Step 23:

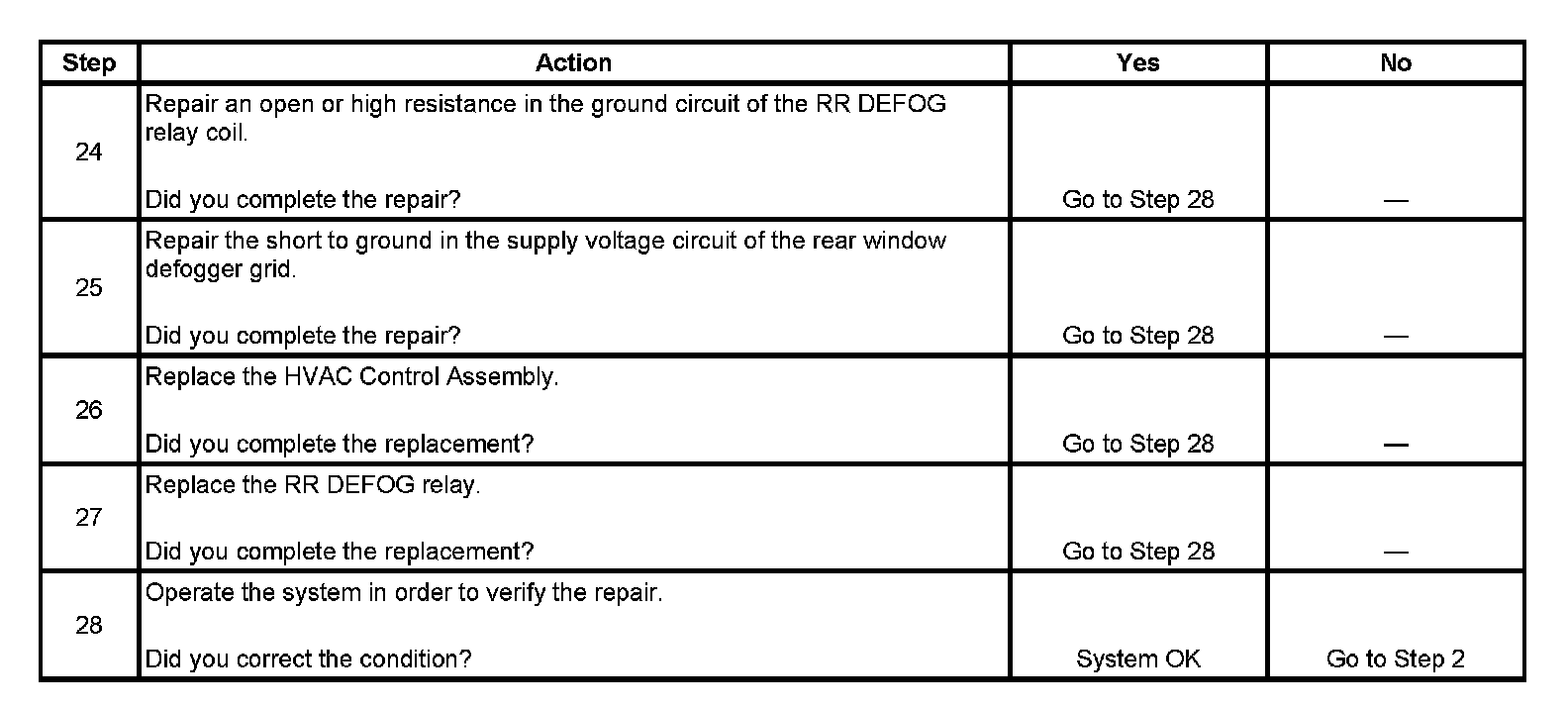

Step 24 - Step 28:
The number below refers to the step number on the diagnostic table.
9. Listen for an audible click when the RR DEFOG relay operates. Command both the ON and OFF states of the RR DEFOG relay. Repeat the commands as necessary.
