2007 Chevrolet Express 1500 RWD V6-4.3LFACTORY OEM SERVICE PROCEDURE
Ignition Control Module: Service and Repair
Ignition Control Module Replacement
Removal Procedure
1. Remove the engine cover.

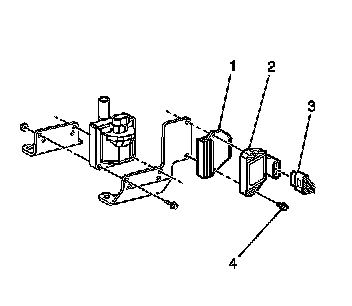

2. Disconnect the electrical connector (3).
3. Remove the screws (4) holding the ignition control module (2) and the heat sink (1) to the bracket.
4. Remove the ignition control module and the heat sink.
Installation Procedure
Notice: Refer to Fastener Notice.
1. Install the ignition control module (2) and the heat sink (1) on the bracket with the screws (4).
Tighten the screws to 3.5 N.m (31 lb in).
2. Reconnect the electrical connectors (3).
3. Install the engine cover.
4. Refer to Control Module References for programming and setup information. Programming and Relearning
