2007 Chevrolet Express 1500 RWD V6-4.3LFACTORY OEM SERVICE PROCEDURE
Fuel Injector Balance Test With Special Tool
Fuel Injector Balance Test with Special Tool
System Description

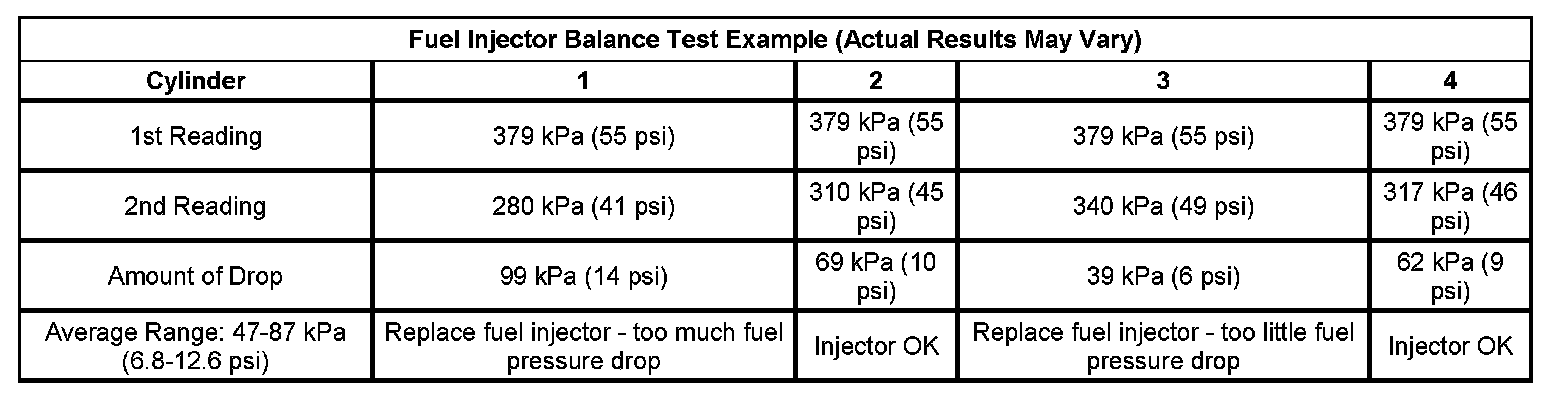

The scan tool is first used to energize the fuel pump relay. The fuel injector tester is then used to pulse each injector for a precise amount of time, allowing a measured amount of fuel into the manifold. This causes a drop in system fuel pressure that can be recorded and used to compare each injector.
Test Description

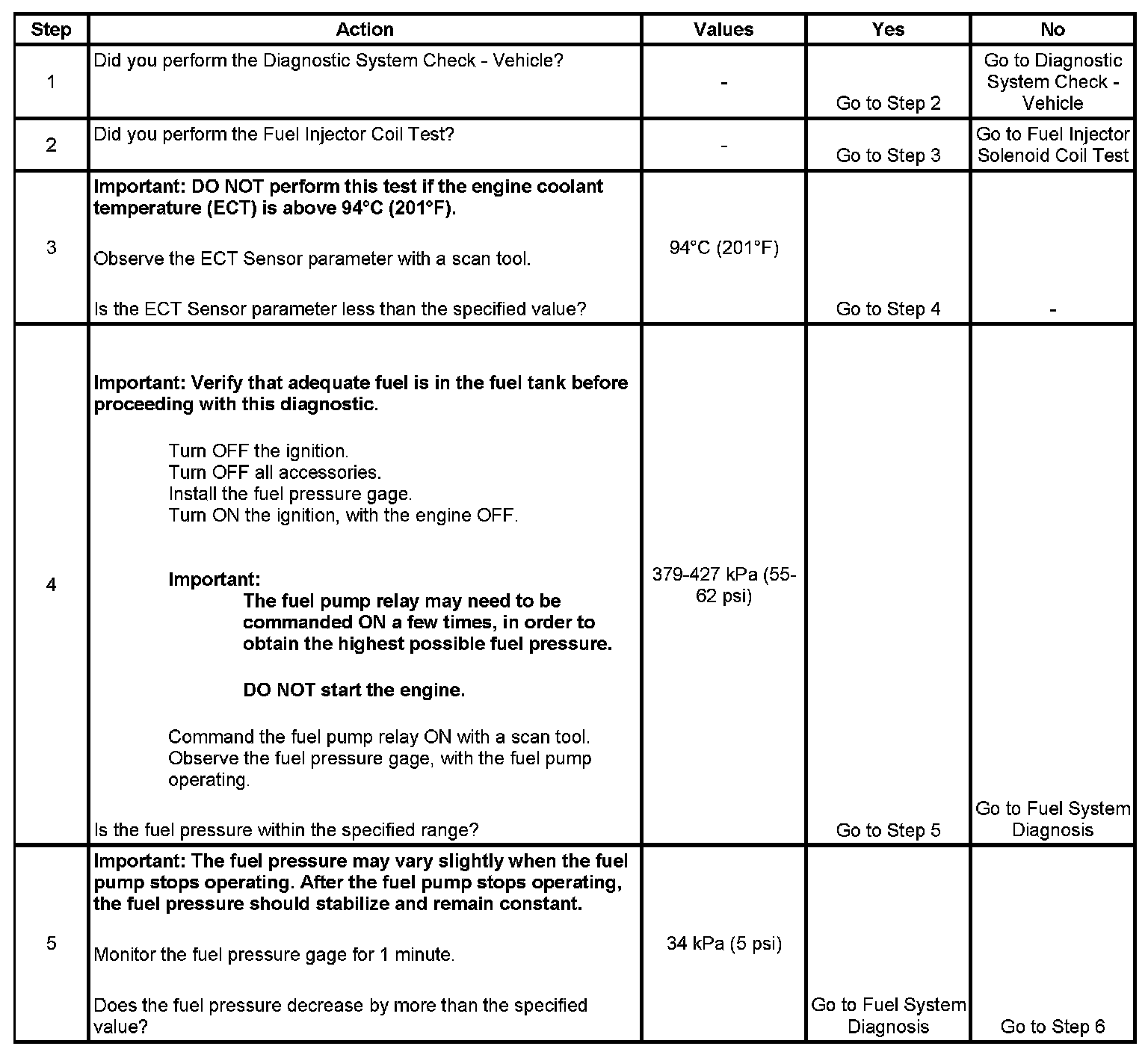

Step 1 - Step 5:

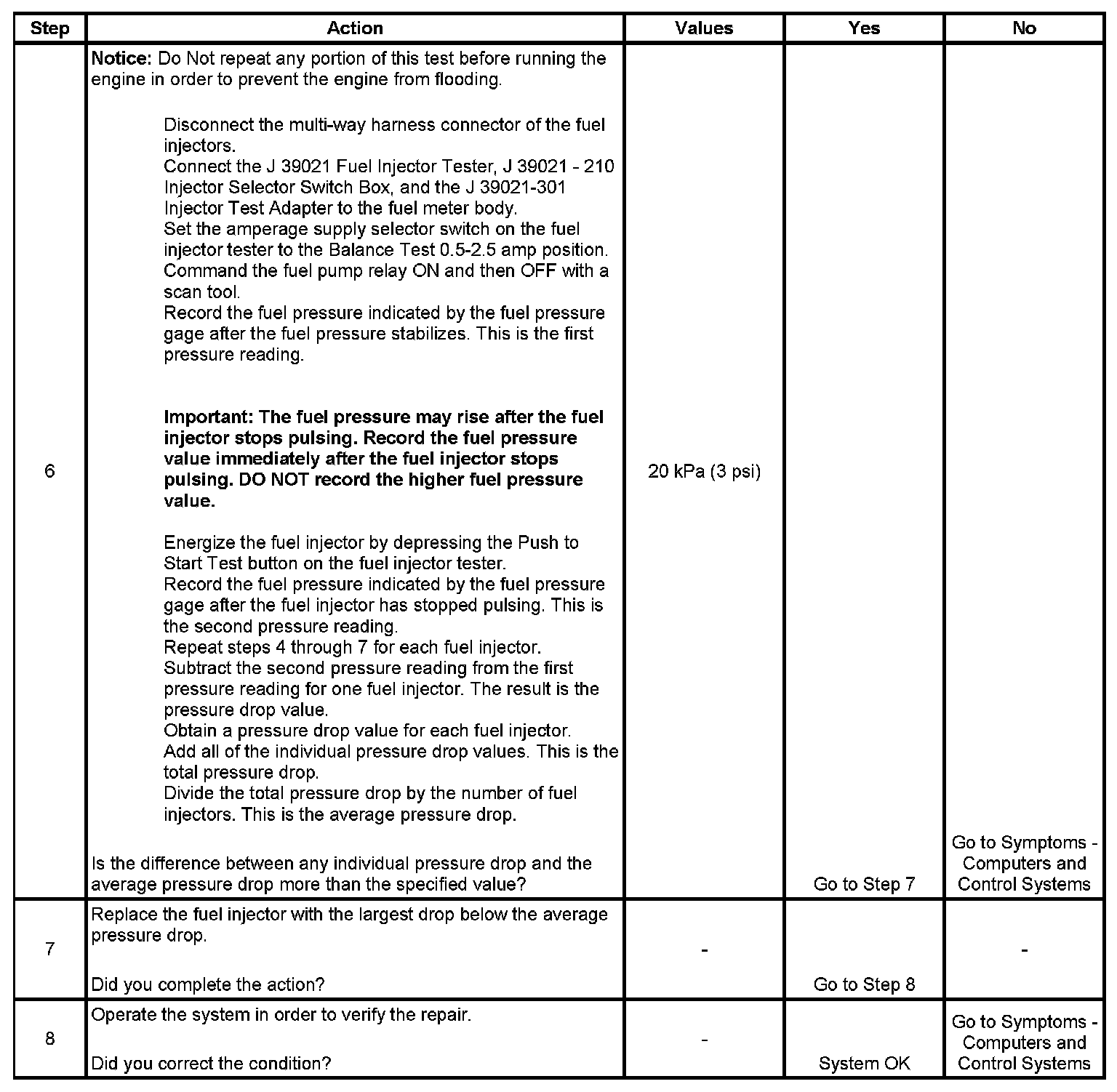

Step 6 - Step 8:
The number below refers to the step number on the diagnostic table.
3. The engine coolant temperature (ECT) must be below the operating temperature in order to avoid irregular fuel pressure readings due to hot soak fuel boiling.
