2007 Chevrolet Express 1500 RWD V6-4.3LFACTORY OEM SERVICE PROCEDURE
Cruise Control Module: Service and Repair
Cruise Control Module Replacement
Removal Procedure
1. Raise and support the hood.
2. Remove the air cleaner assembly from the vehicle.
* For the 4.3L engine, refer to Air Cleaner Assembly Replacement.
* For the 4.8L, 5.3L, and 6.0L engine, refer to Air Cleaner Assembly Replacement.
3. Disconnect the electrical connector from the cruise control module.
4. Disconnect the cruise control cable from the cruise control module. Refer Cruise Control Cable Replacement.

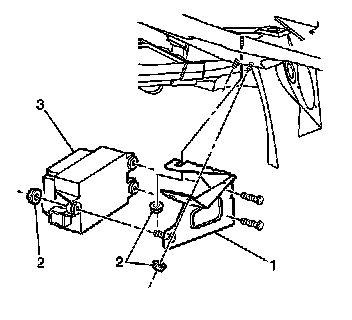

5. Remove the nuts (2) that retain the cruise control module to the cruise control bracket.
6. Remove the cruise control module (3) from the cruise control bracket (1).
7. Remove the cruise control module (3) from the vehicle.
Installation Procedure
1. Install the cruise control module (3) to the vehicle.
2. Install the cruise control module (3) to the cruise control bracket (1).
Notice: Refer to Fastener Notice.
3. Install the nuts (2) that retain the cruise control module (3) to the cruise control bracket (1).
Tighten the nuts to 5 N.m (44 lb in).
4. Connect the cruise control cable to the cruise control module.
5. Connect the electrical connector to the cruise control module.
6. Install the air cleaner assembly to the vehicle.
* For the 4.3L engine, refer to Air Cleaner Assembly Replacement.
* For the 4.8L, 5.3L, or 6.0L engine, refer to Air Cleaner Assembly Replacement.
7. Close the hood.
8. Refer to Programming and Relearning Programming and Relearning
