2007 Chevrolet Cutaway 6.6 2FACTORY OEM SERVICE PROCEDURE

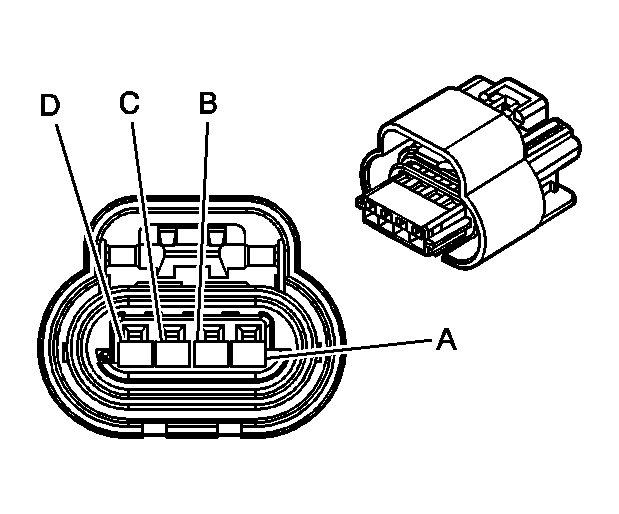

Ignition Control Module (ICM) Connector End View
Ignition Control Module (ICM) Connector & Terminal Parts Information
Connector Part Information
|
Terminal Part Information
|
Ignition Control Module (ICM) Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | PK | 139 | Ignition 1 Voltage |
| B | WH | 423 | IC Timing Control |
| C | BK | 1250 | Ground |
| D | WH/BK | 1847 | Ignition Coil Control |
