2007 Chevrolet Cutaway 6.6 2FACTORY OEM SERVICE PROCEDURE
Window Systems Component Views

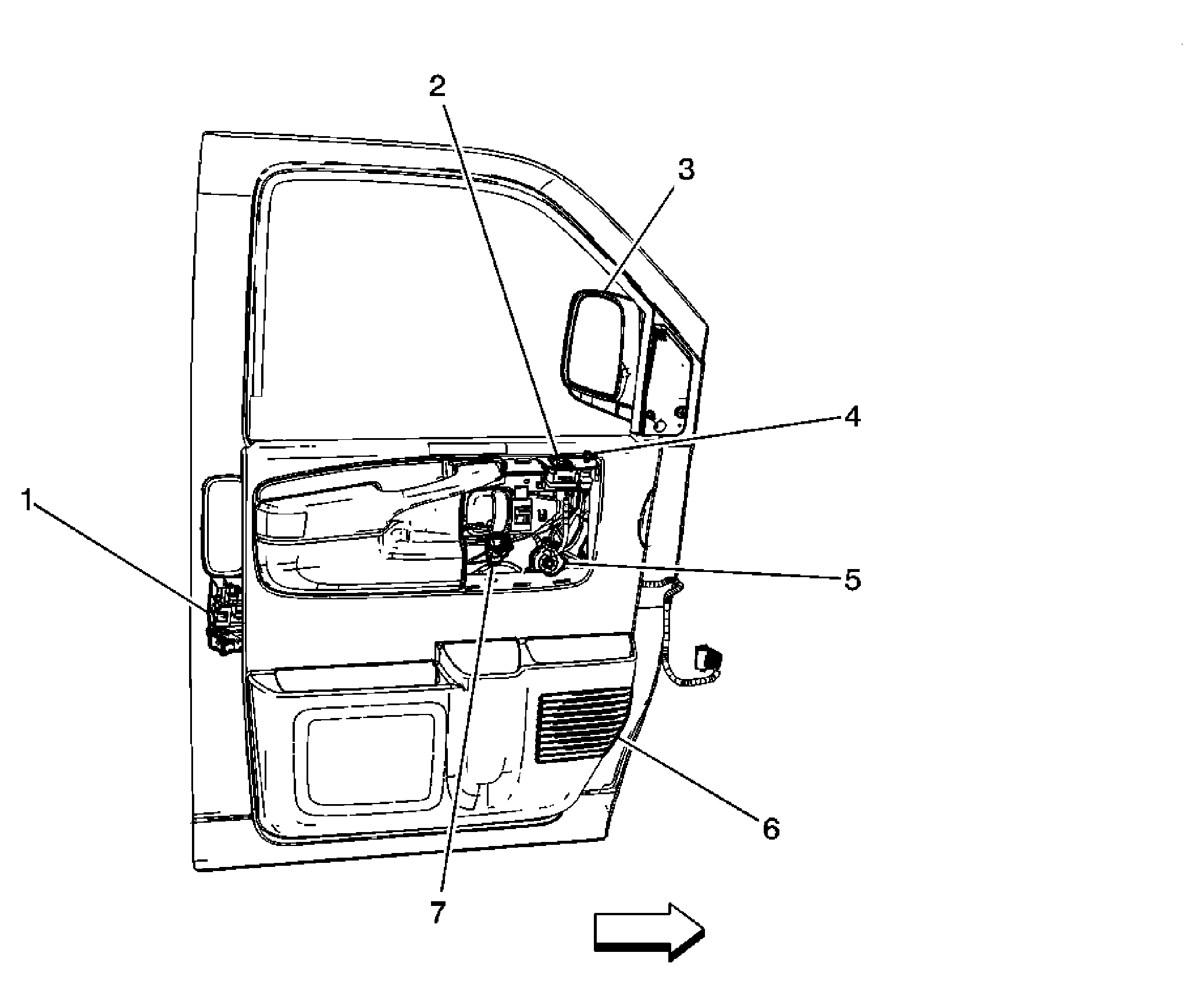

| Callout | Component Name |
|---|---|
| 1 | Door Latch Assembly - Driver |
| 2 | Window Switch - Driver (A31) |
| 3 | Outside Rearview Mirror - Driver |
| 4 | Outside Rearview Mirror Switch (DE5/DE7) |
| 5 | Window Motor - Driver (A31) |
| 6 | Speaker - LF Door |
| 7 | Door Lock Switch - Driver (AU3) |

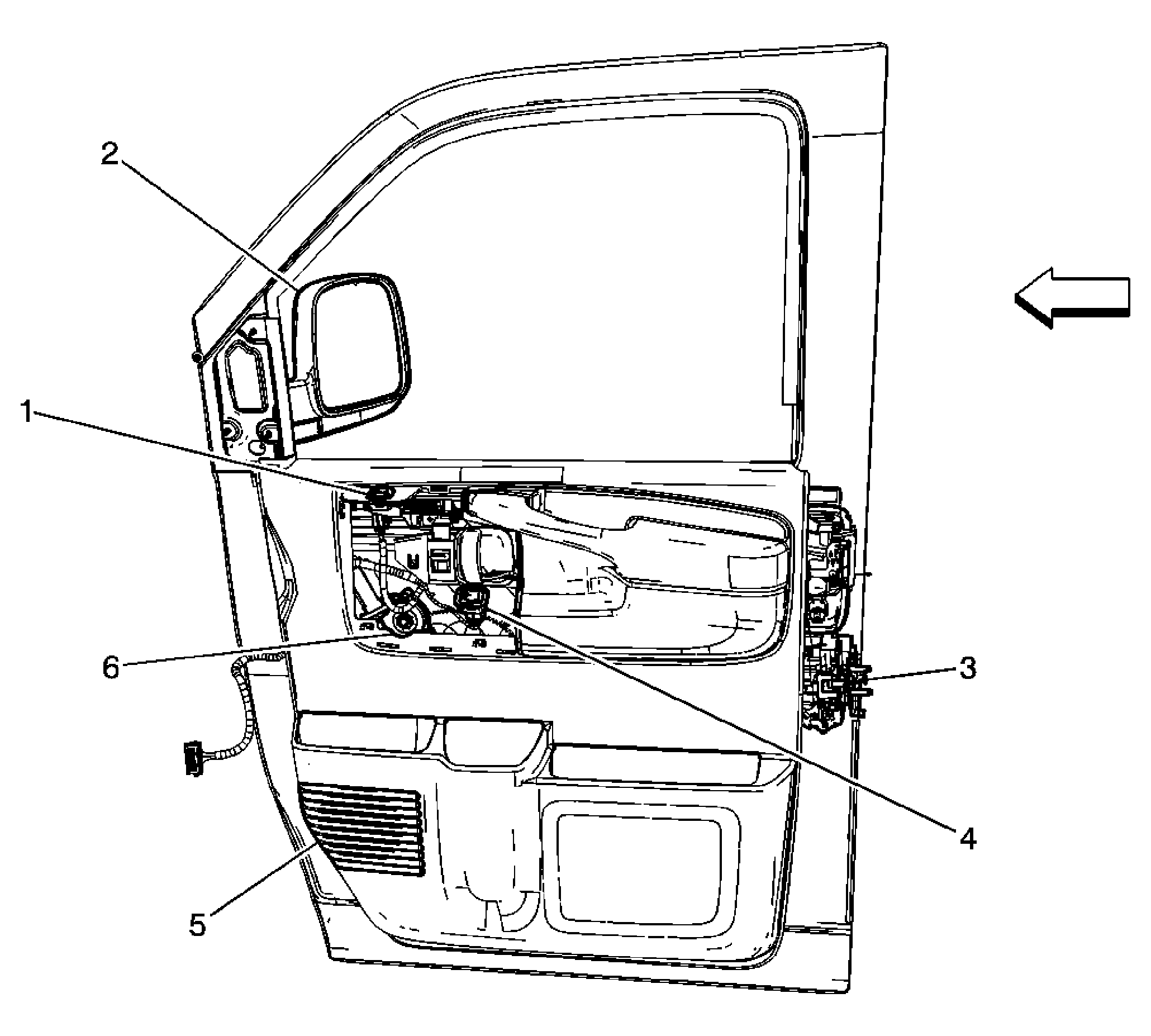

| Callout | Component Name |
|---|---|
| 1 | Window Switch - Front Passenger (A31) |
| 2 | Outside Rearview Mirror - Passenger |
| 3 | Door Latch Assembly - Passenger |
| 4 | Door Lock Switch - Front Passenger (AU3) |
| 5 | Speaker - RF Door |
| 6 | Window Motor - Passenger (A31) |

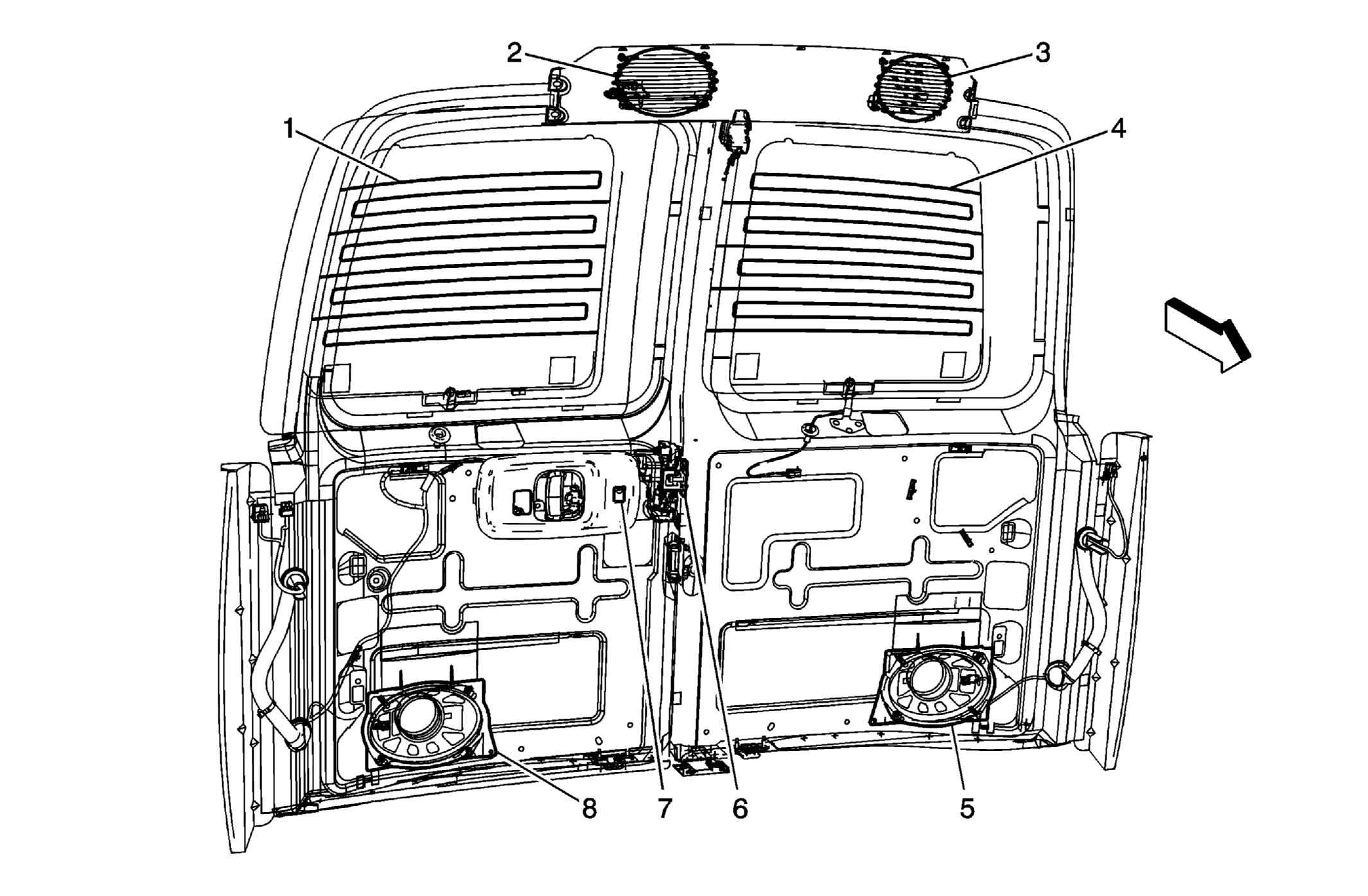

| Callout | Component Name |
|---|---|
| 1 | Rear Window Defogger Grid - Right (C49) |
| 2 | Speaker - RR |
| 3 | Speaker - LR |
| 4 | Rear Window Defogger Grid - Left (C49) |
| 5 | Speaker - LR Door (UB1/UC6) |
| 6 | Door Latch Assembly - Cargo |
| 7 | Door Lock Switch - Rear Cargo (AU3) |
| 8 | Speaker - RR Door (UB1/UC6) |
