2007 Chevrolet Cutaway 6.6 2FACTORY OEM SERVICE PROCEDURE

Data Communication Component Views

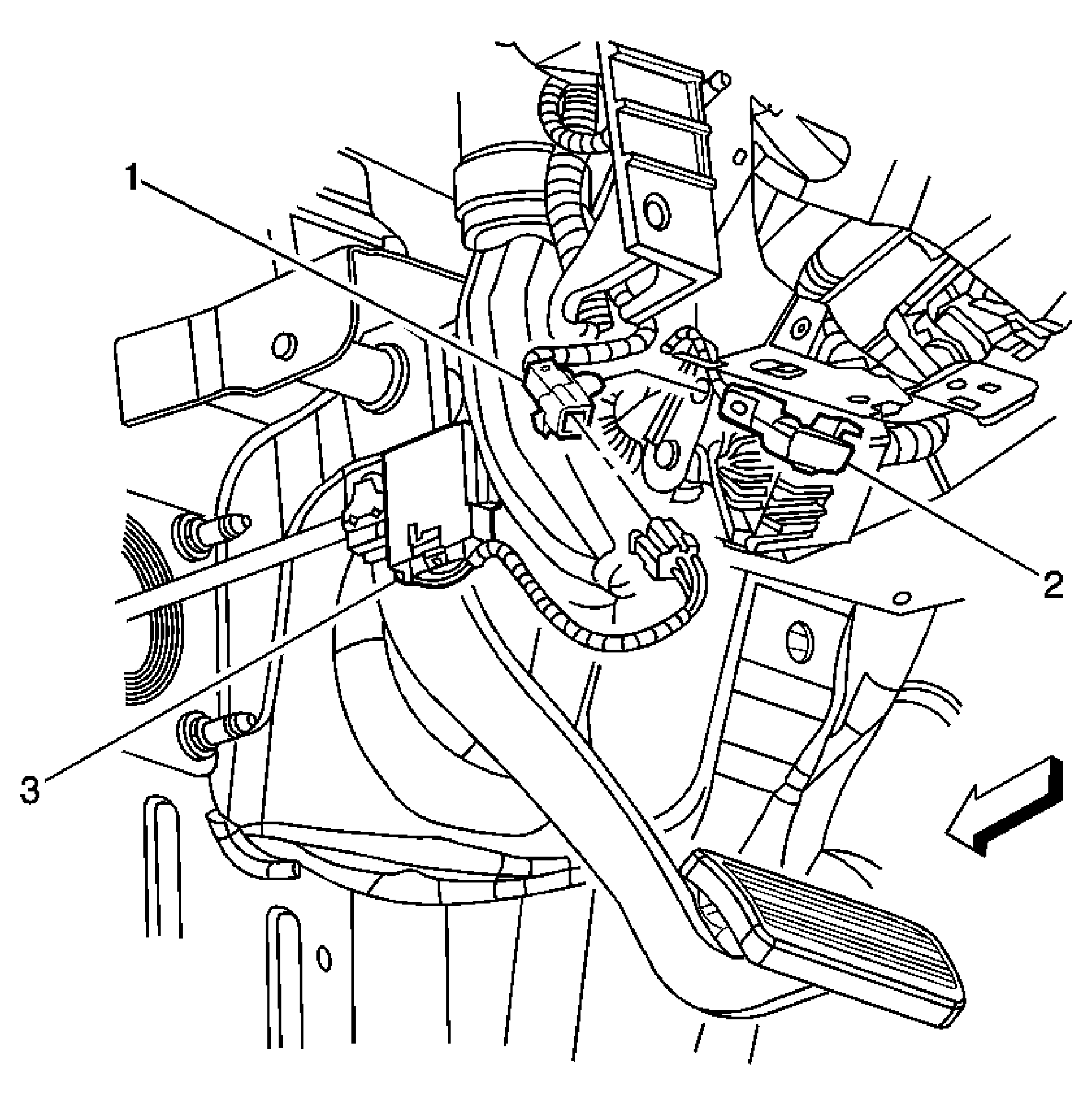

Fig 1: Component View Of I/P Harness Routing - Left Side Of I/P
GM883616Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C221
2 Data Link Connector (DLC)
3 Stop Lamp Switch Connector

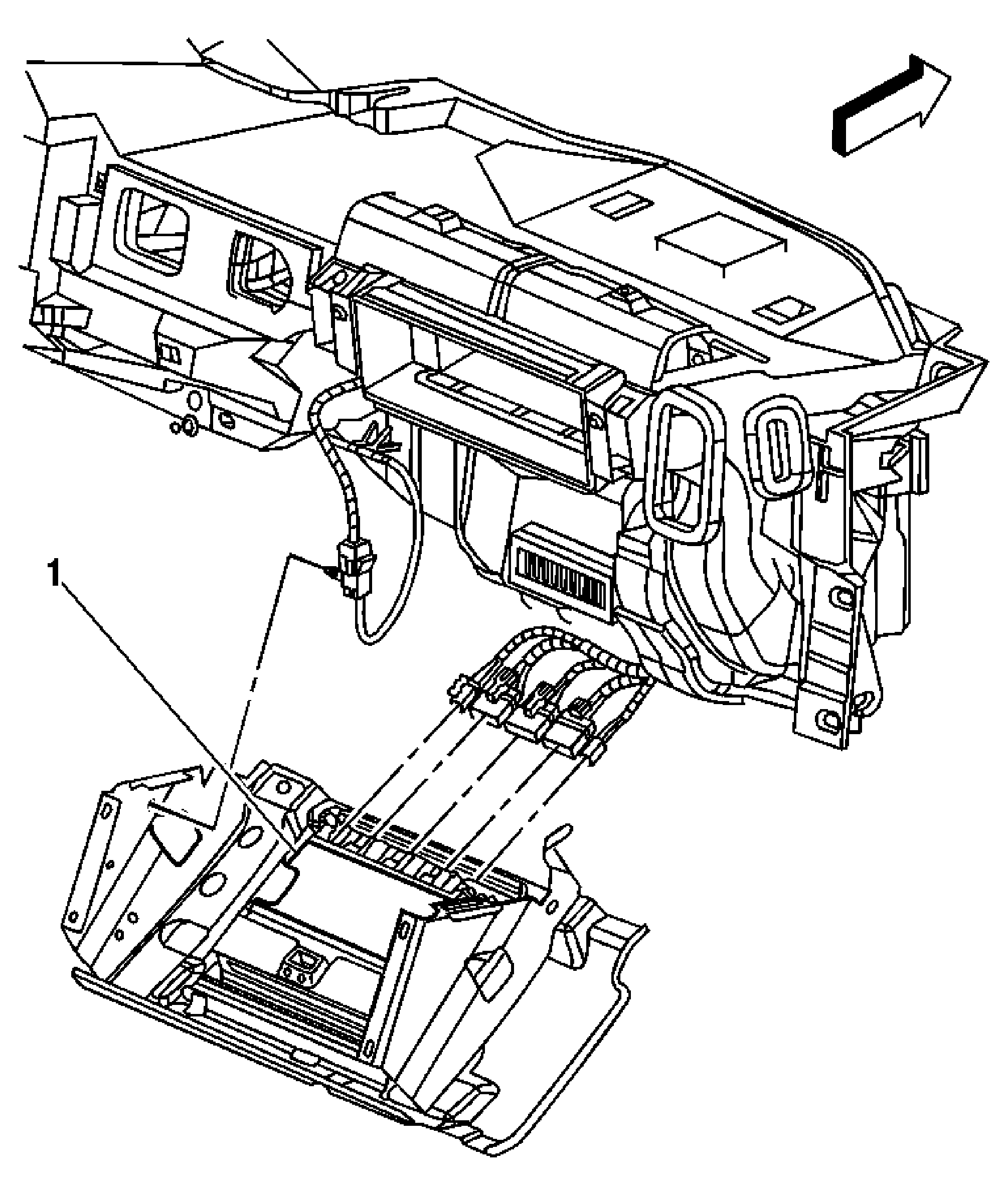

Fig 2: Component View - Right Side of the I/P
GM1208924Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
