2007 Chevrolet Cutaway 4.8 VFACTORY OEM SERVICE PROCEDURE

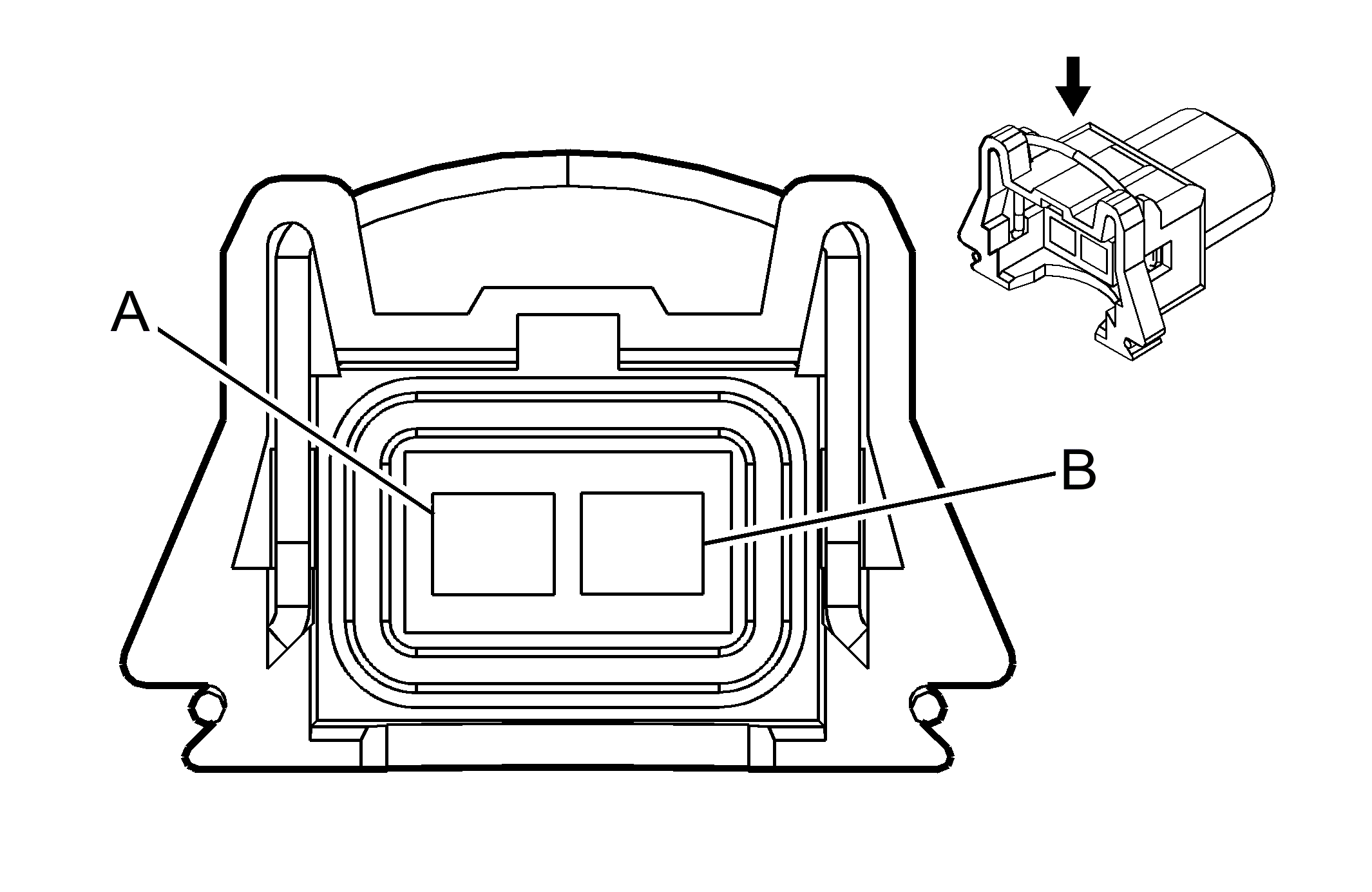

Knock Sensor (KS) Connector End View
Knock Sensor (KS) Connector & Terminal Parts Information
Connector Part Information
|
Terminal Part Information
|
Knock Sensor (KS) Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | D-BU | 496 | KS Signal |
| B | GY | 1716 | KS Signal |
