2007 Chevrolet Cutaway 4.8 VFACTORY OEM SERVICE PROCEDURE
Electronic Brake Control Module (EBCM) C1 - w/o JL4
Electronic Brake Control Module (EBCM) C1 - w/o JL4 Connector & Terminal Parts Information
Connector Part Information
|
Terminal Part Information
|

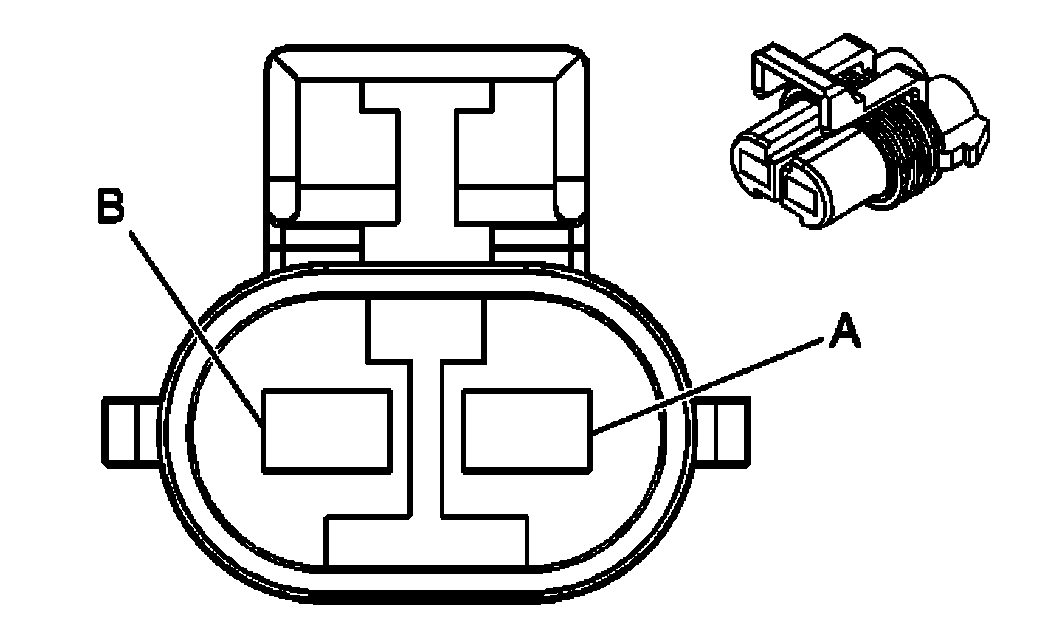

Electronic Brake Control Module (EBCM) C1 - w/o JL4 Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | BK | 1150 | Ground |
| B | RD/BK | 642 | Battery Positive Voltage |
