2007 Chevrolet Colorado 2WD L5-3.7LFACTORY OEM SERVICE PROCEDURE
Engine Control Module
Powertrain Control Module Connector End Views

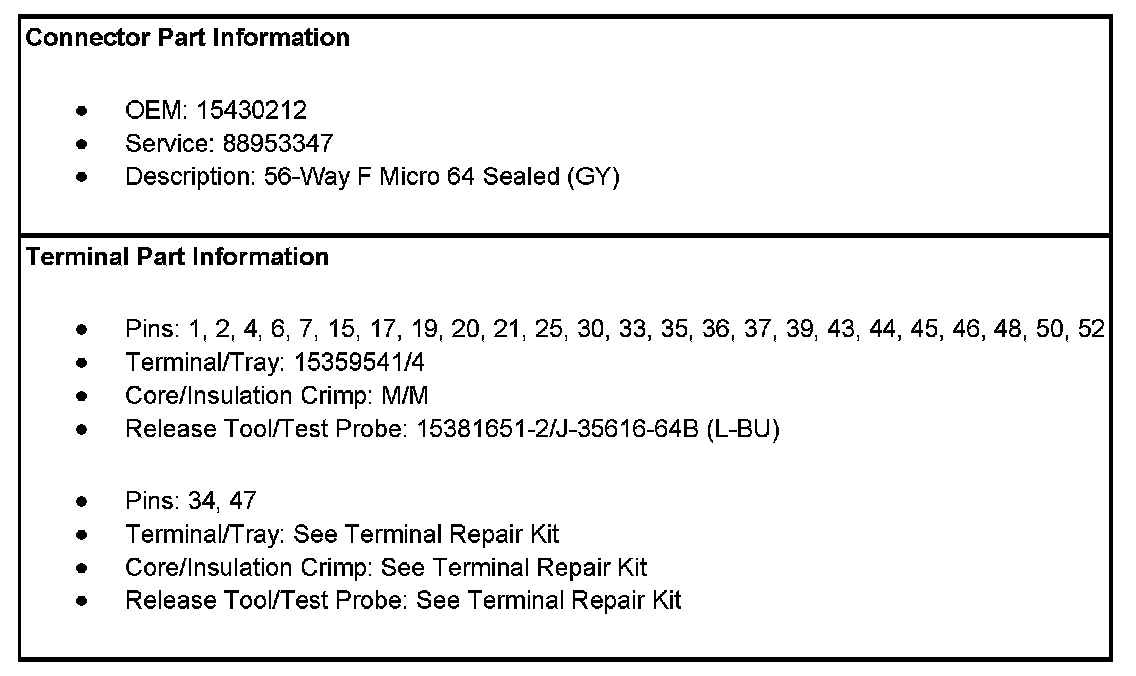

Powertrain Control Module (PCM) C1

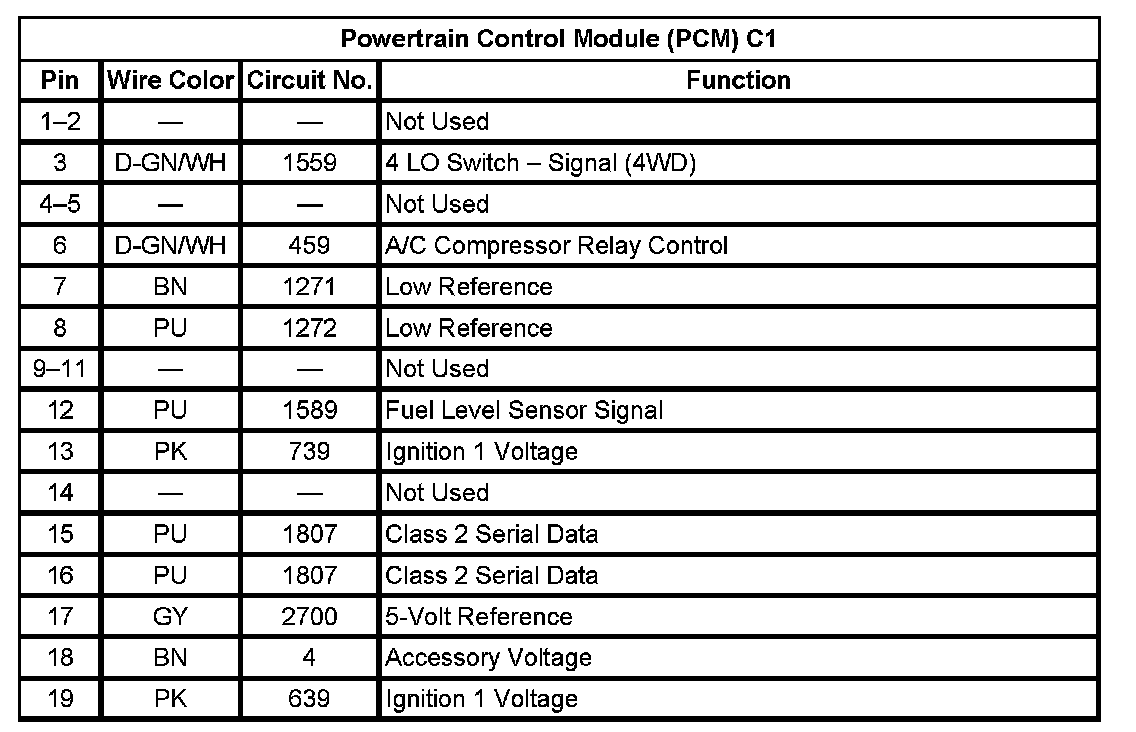

Powertrain Control Module (PCM) C1 (Pin 1 To 19):

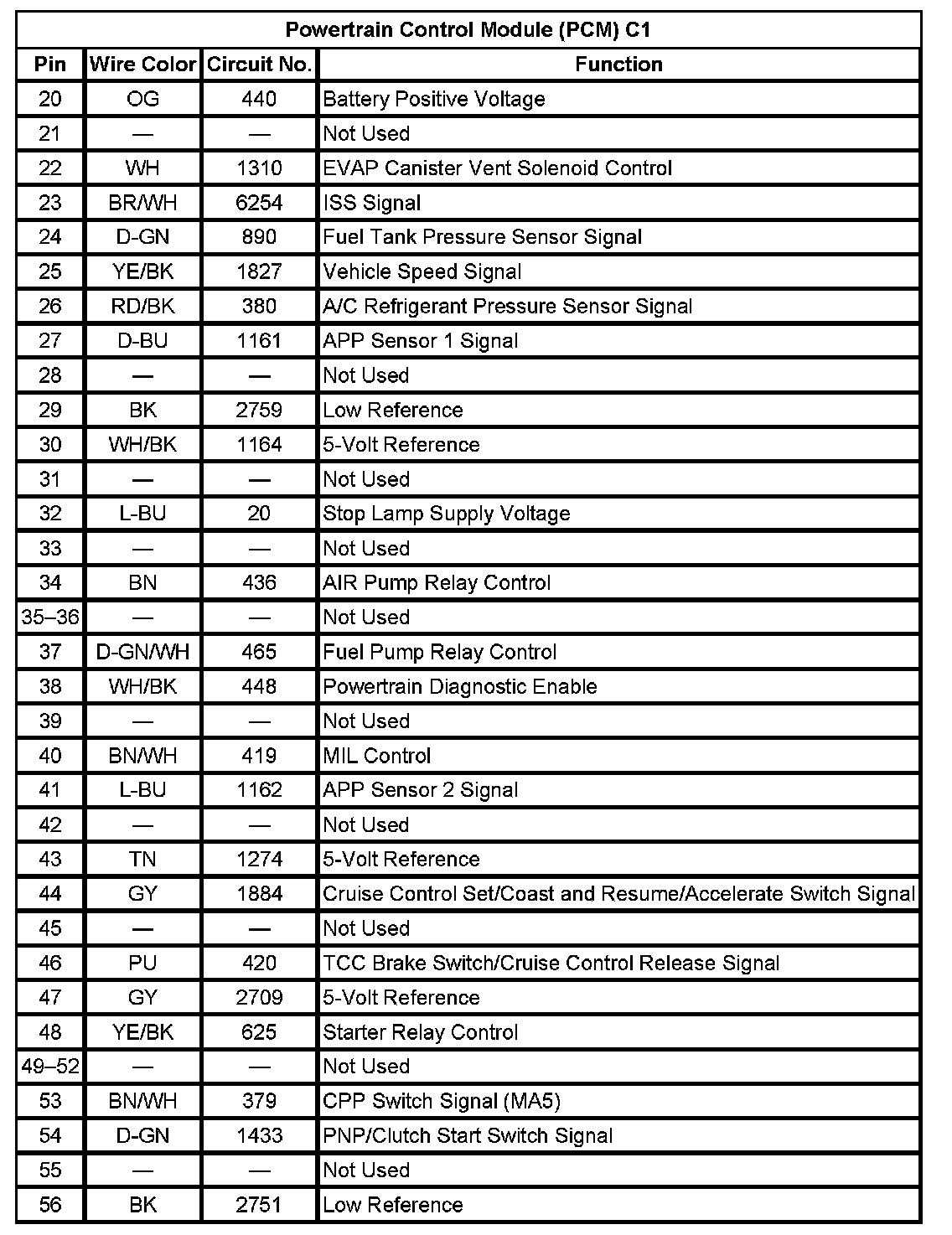

Powertrain Control Module (PCM) C1 (Pin 20 To 56):

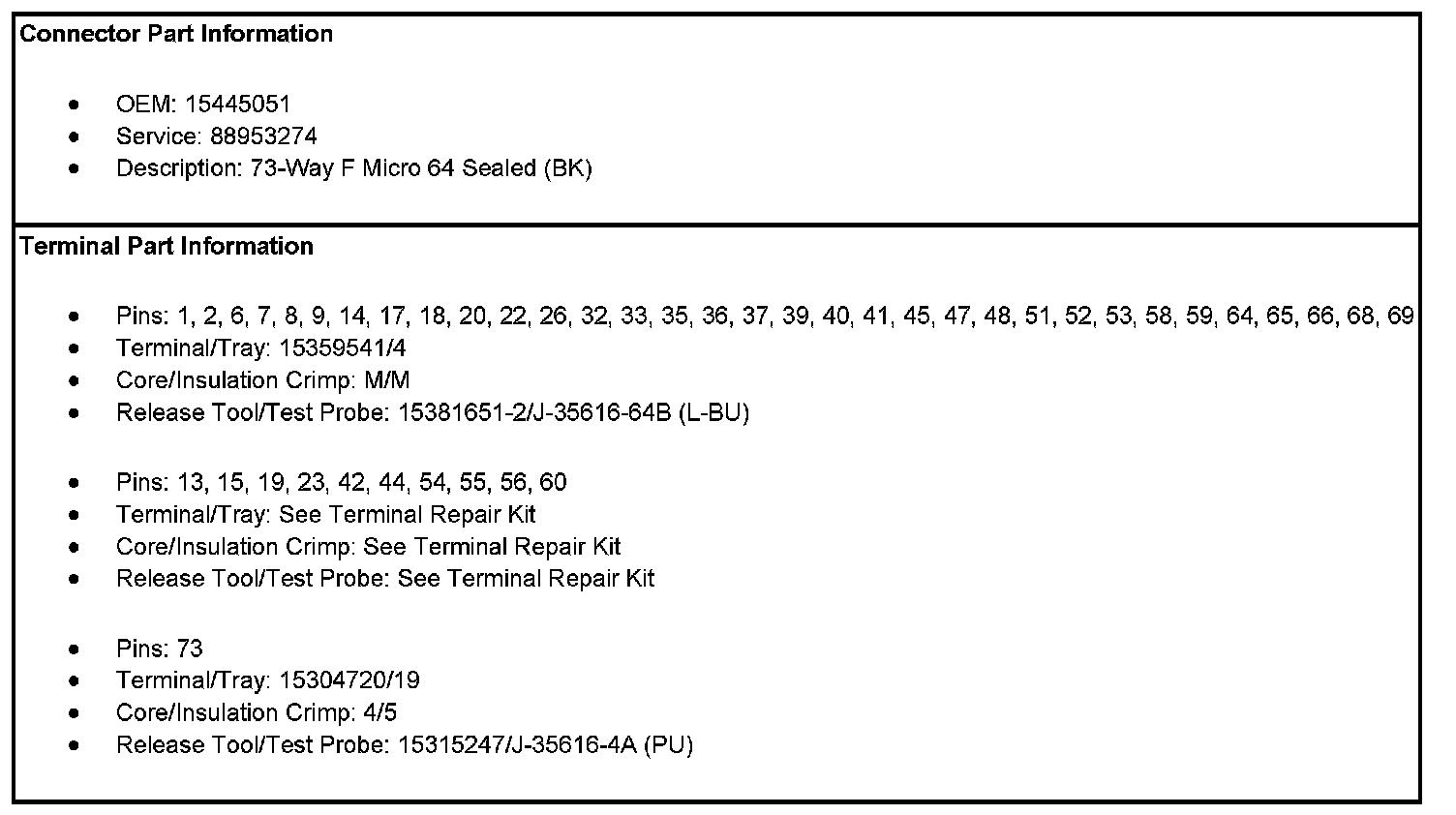

Powertrain Control Module (PCM) C2

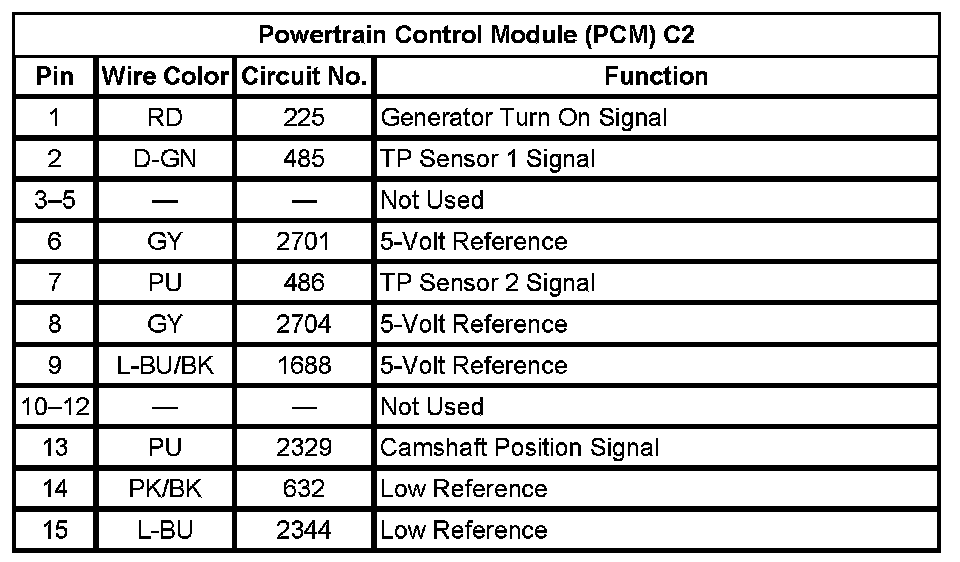

Powertrain Control Module (PCM) C2 (Pin 1 To 15):

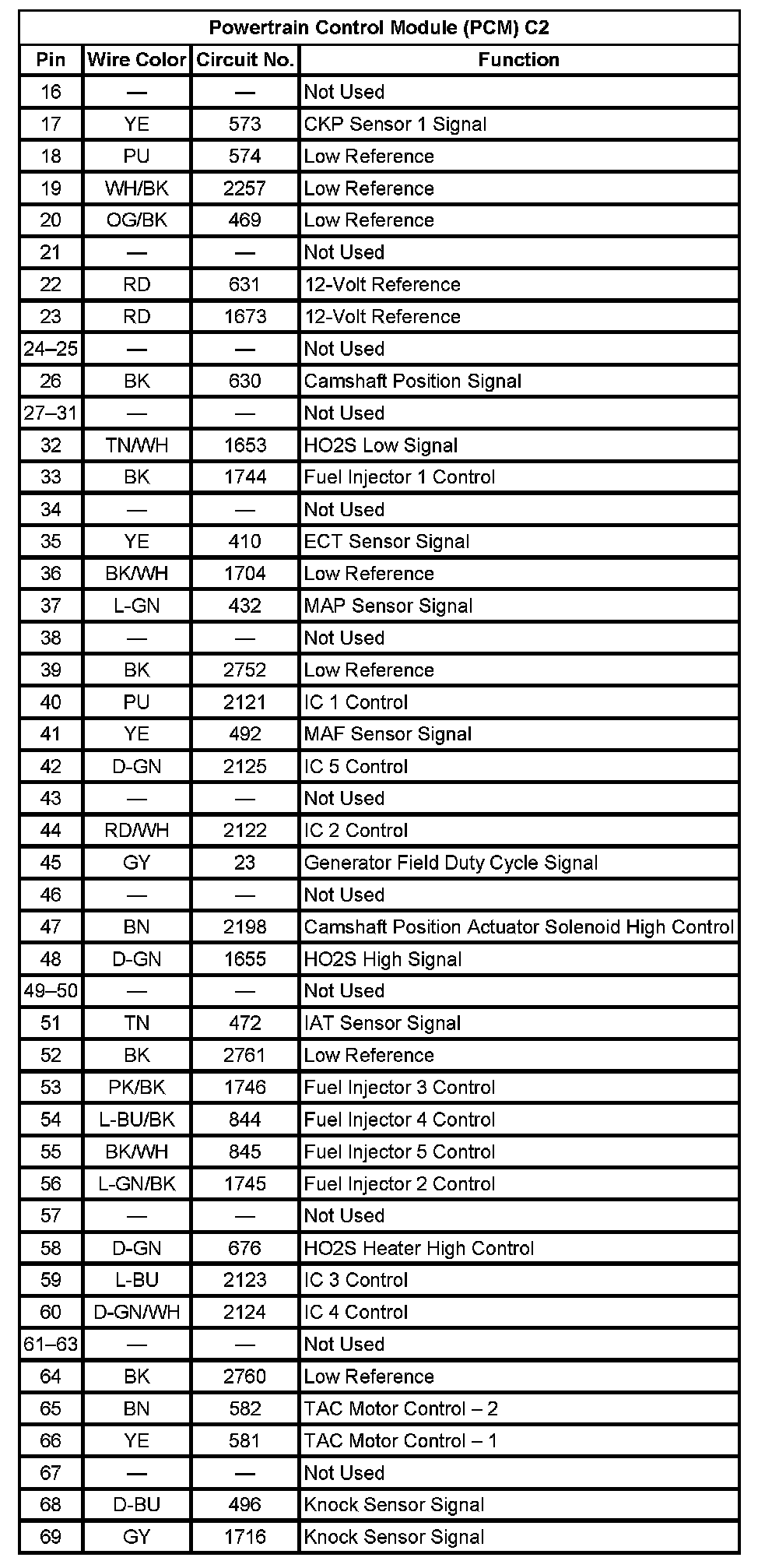

Powertrain Control Module (PCM) C2 (Pin 16 To 69):

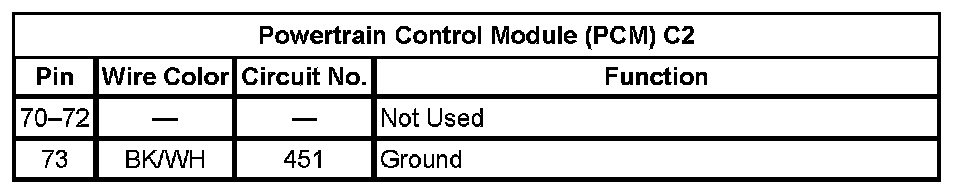

Powertrain Control Module (PCM) C2 (Pin 70 To 73):

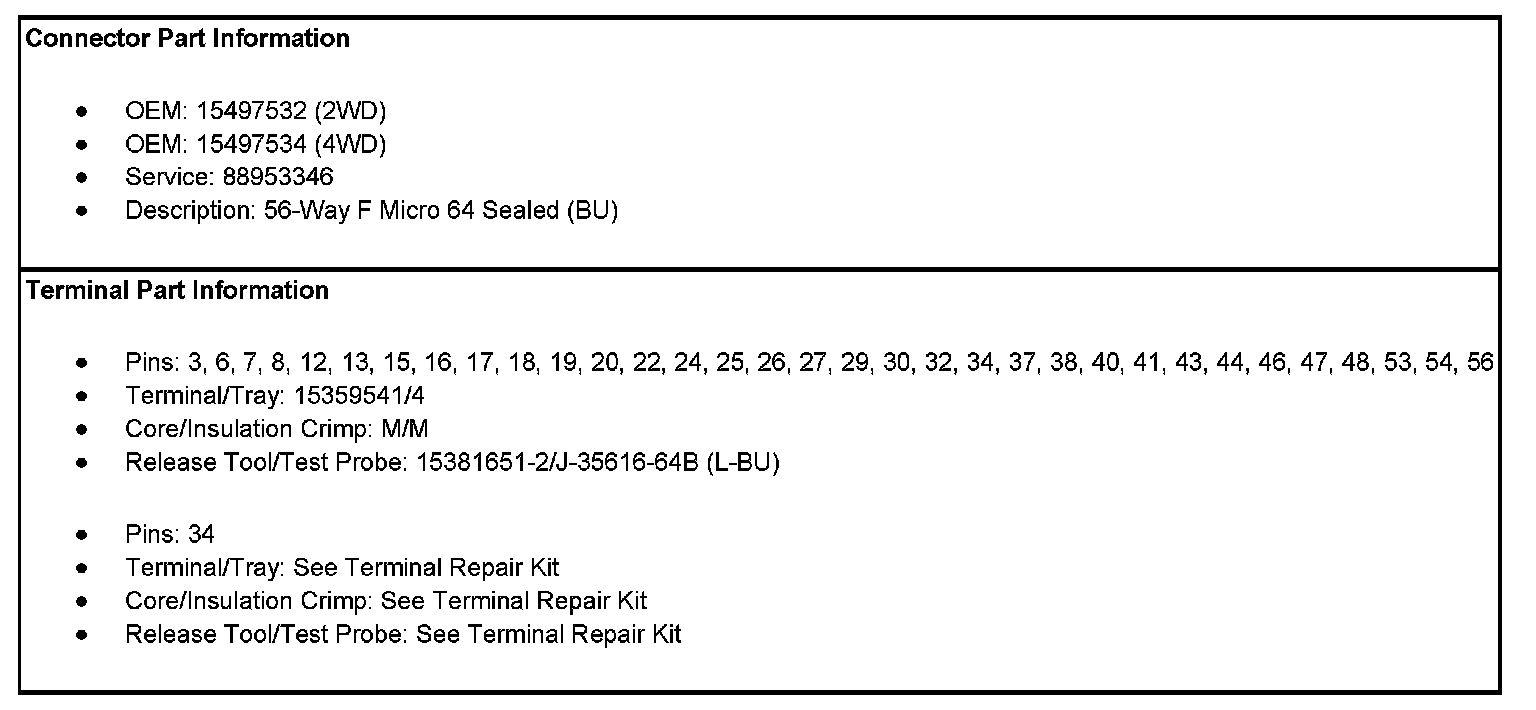

Powertrain Control Module (PCM) C3

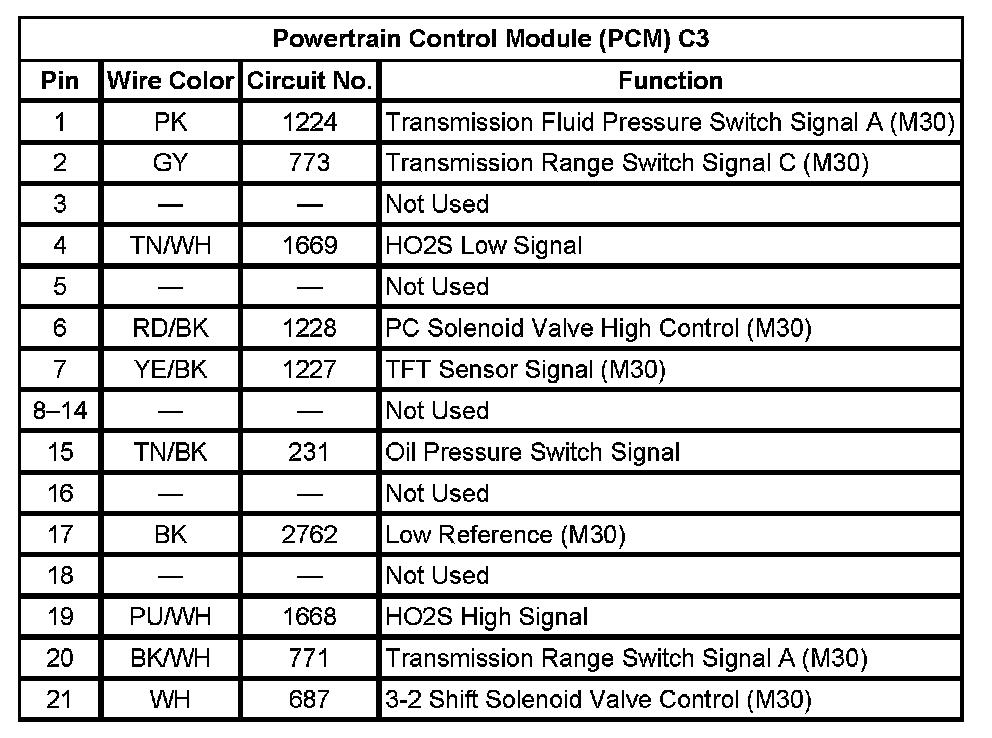

Powertrain Control Module (PCM) C3 (Pin 1 To 21):

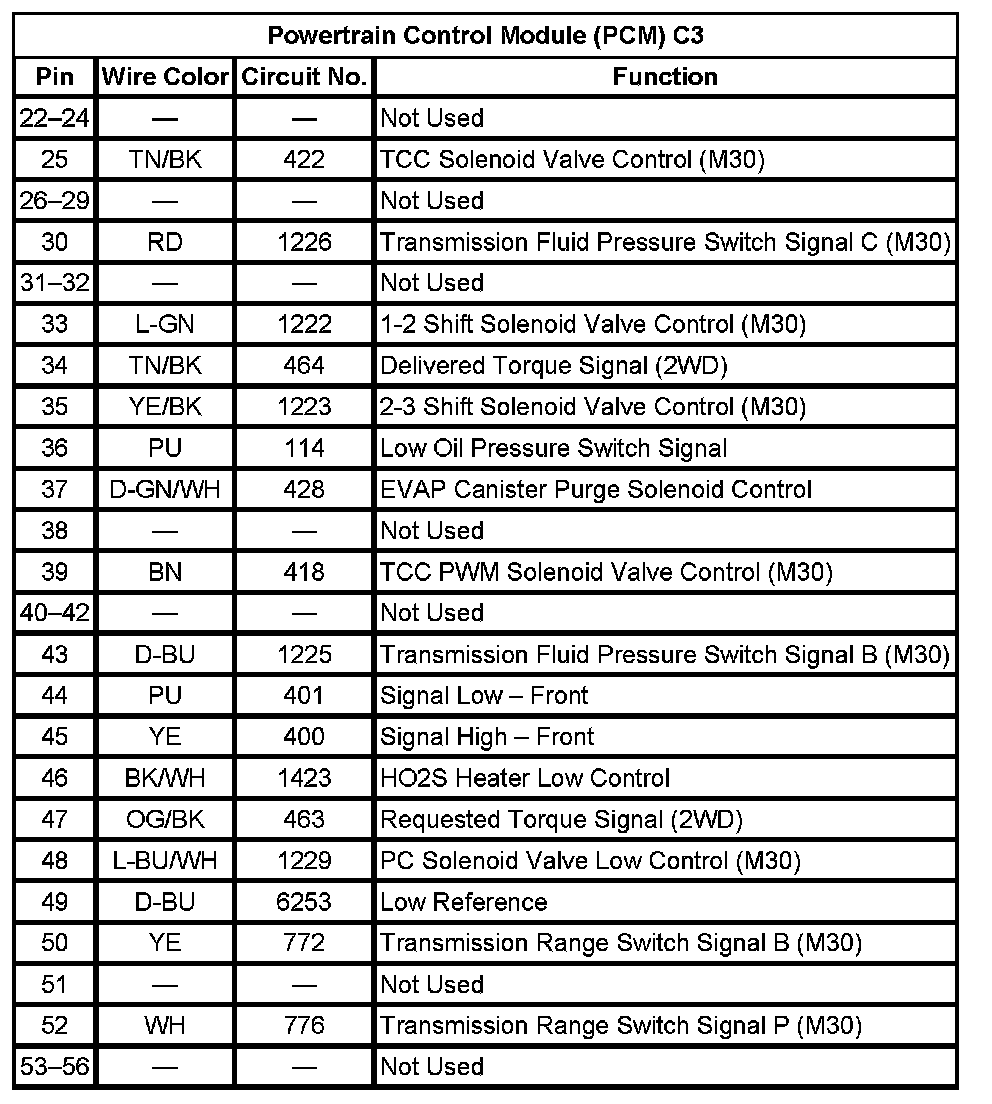

Powertrain Control Module (PCM) C3 (Pin 22 To 56):
