2007 Chevrolet Colorado 2WD L4-2.9LFACTORY OEM SERVICE PROCEDURE
Control Assembly: Service and Repair
HVAC Control Assembly Replacement
Removal Procedure
1. Remove the accessory trim plate.

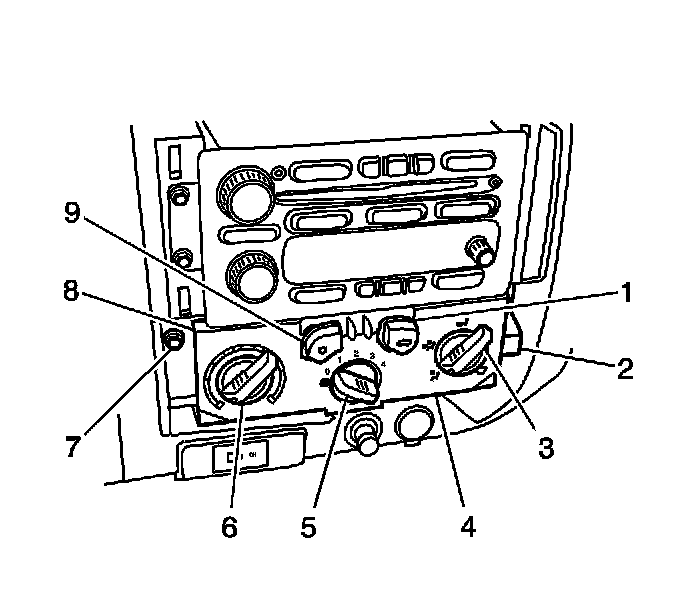

2. Remove the screws (7,2) from the HVAC control assembly.
3. Remove the HVAC control assembly from the instrument panel.

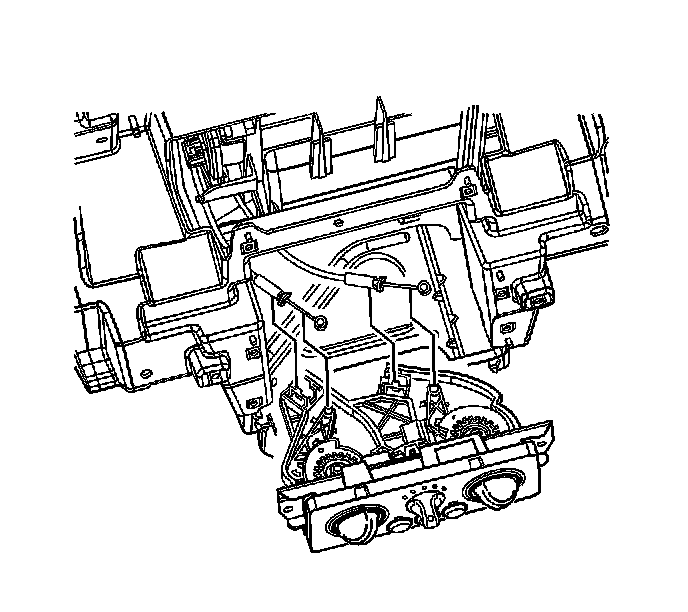

4. Disconnect the mode cable from the HVAC control assembly.
5. Disconnect the temperature cable from the HVAC control assembly.
6. Disconnect the HVAC control assembly electrical connectors.
7. Remove the HVAC control assembly.
Installation Procedure
1. Install the HVAC control assembly.
2. Connect the HVAC control assembly electrical connectors.
Important: Do not bend the mode and temperature cables.
3. Connect the mode cable to the HVAC control assembly.
4. Connect the temperature cable to the HVAC control assembly.
5. Install the HVAC control assembly to the instrument panel.
Notice: Refer to Fastener Notice.
6. Install the HVAC control assembly screws.
Tighten the screws to 1.9 N.m (18 lb in).
7. Install the accessory trim plate.
