2007 Chevrolet Colorado 2WD L4-2.9LFACTORY OEM SERVICE PROCEDURE
Engine Control Module
Powertrain Control Module Connector End Views

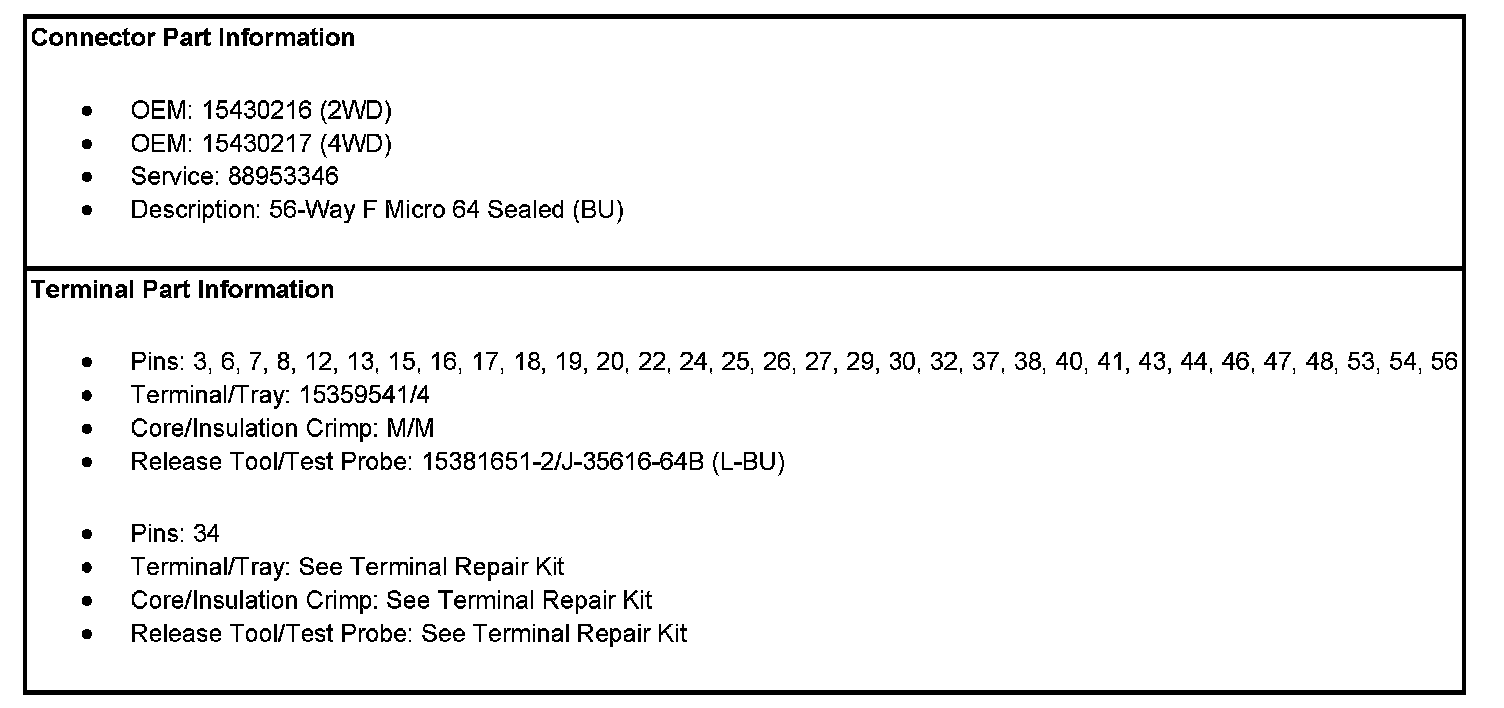

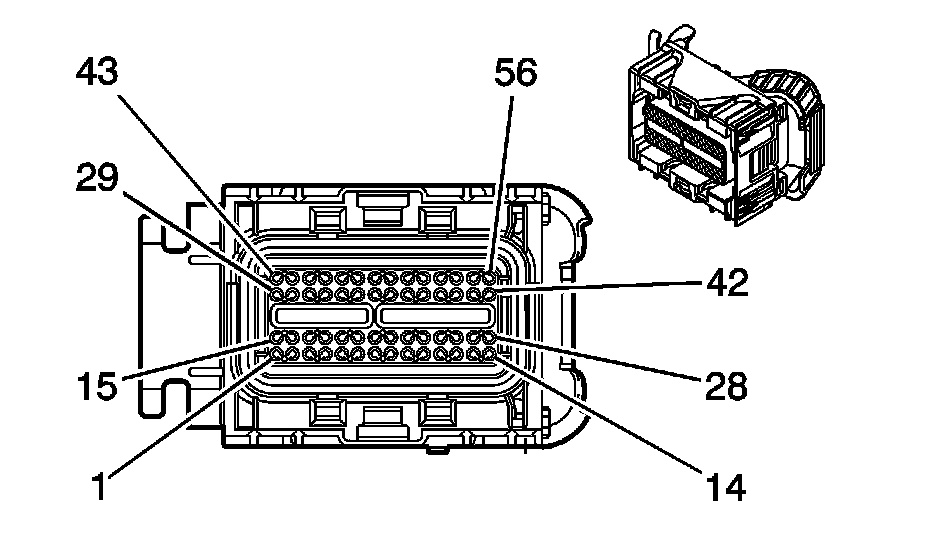

Powertrain Control Module (PCM) C1

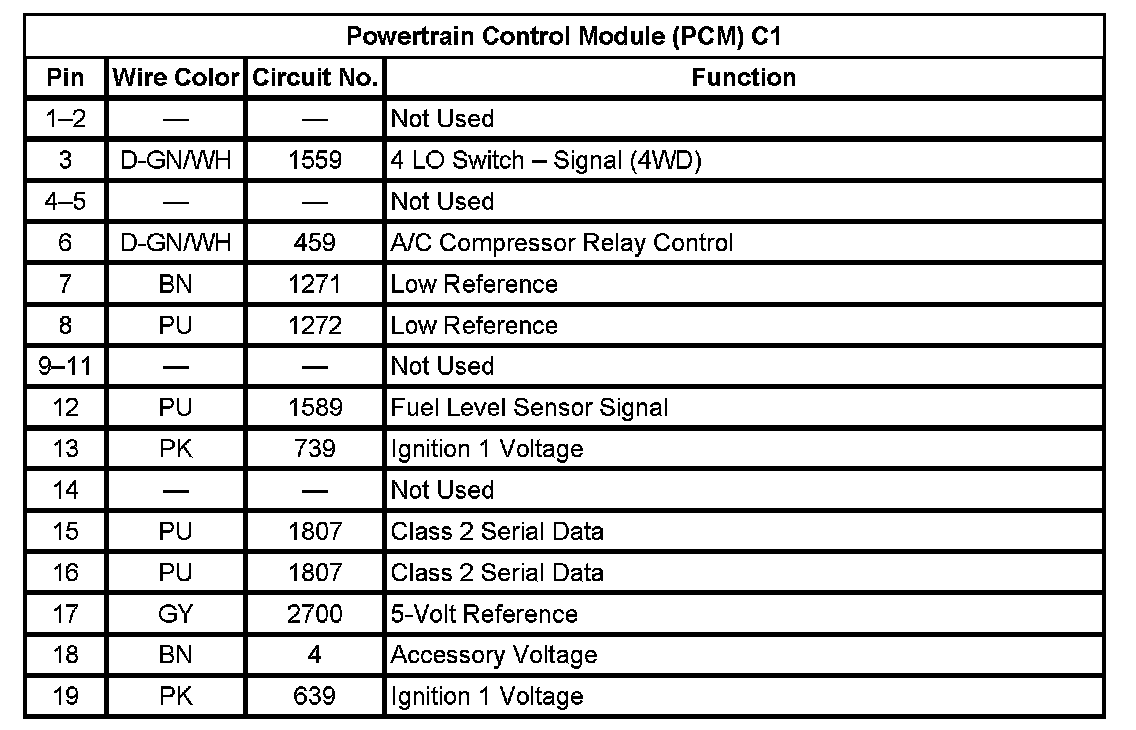

Powertrain Control Module (PCM) C1 (Pin 1 To 19):

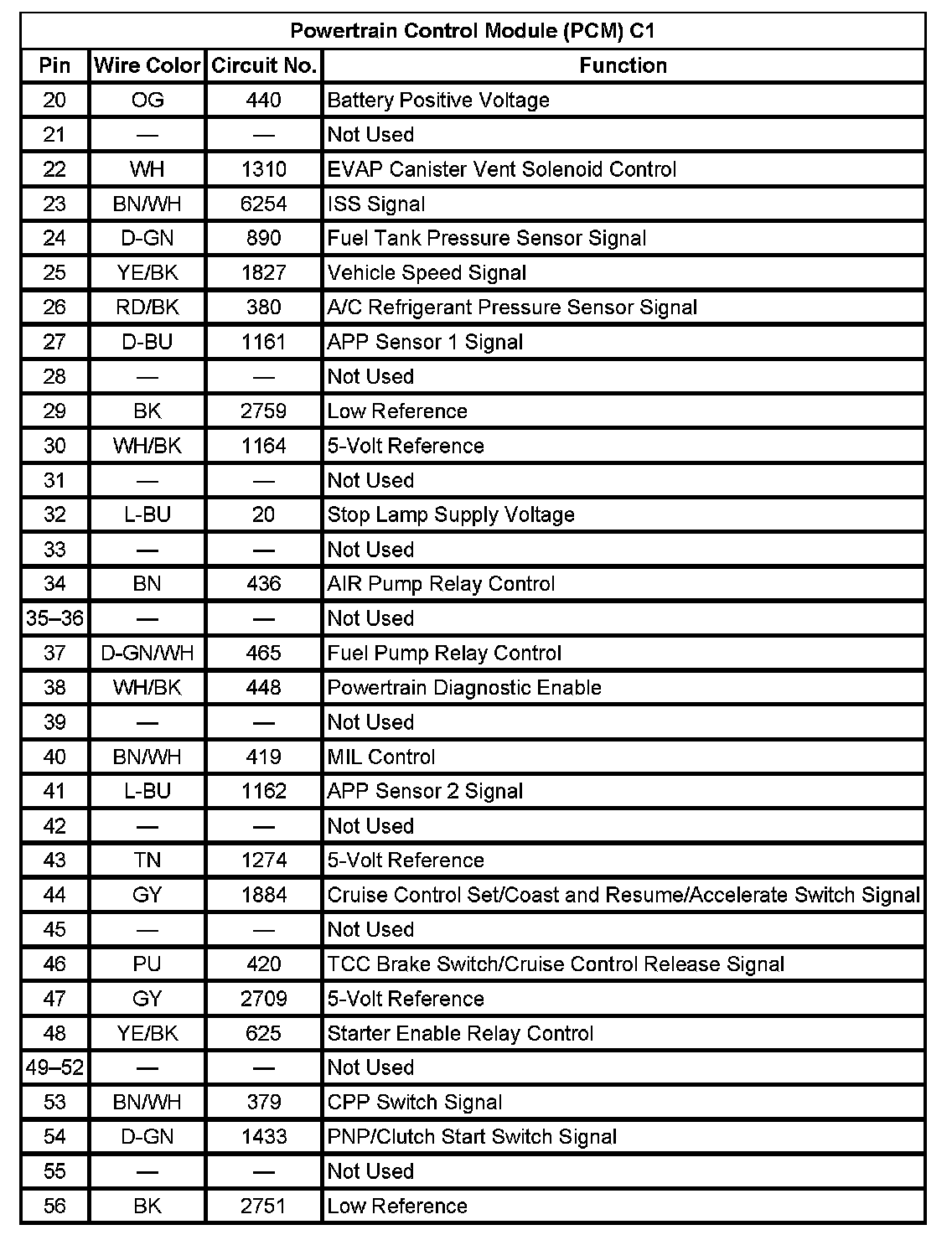

Powertrain Control Module (PCM) C1 (Pin 20 To 56):

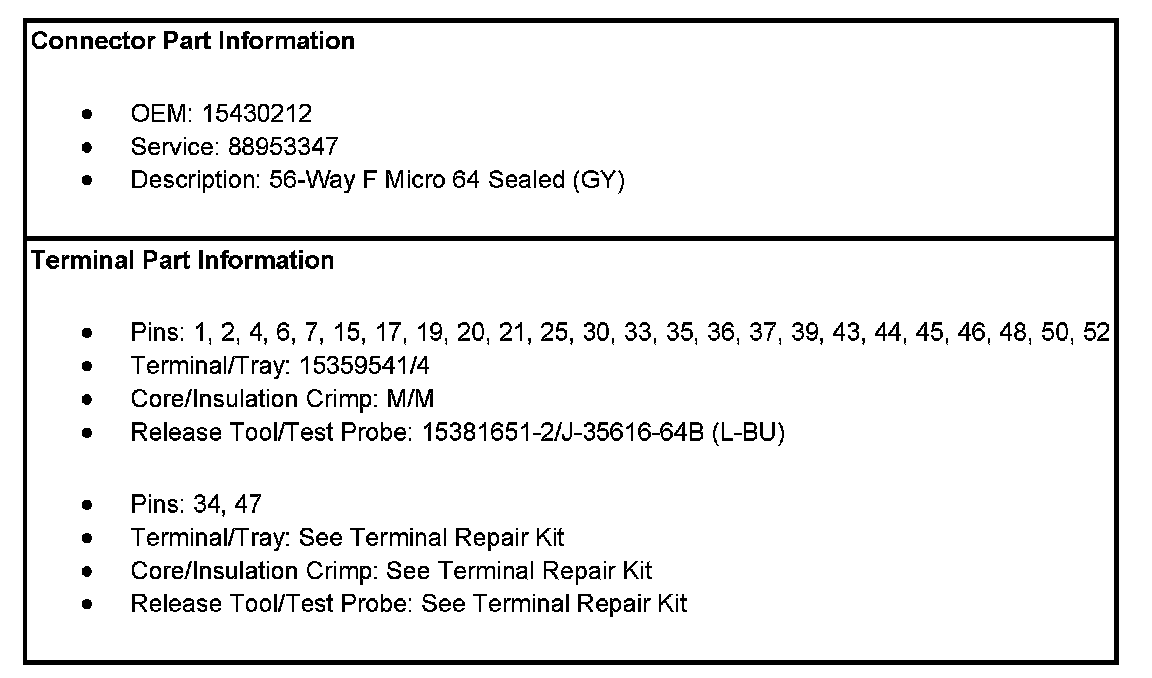

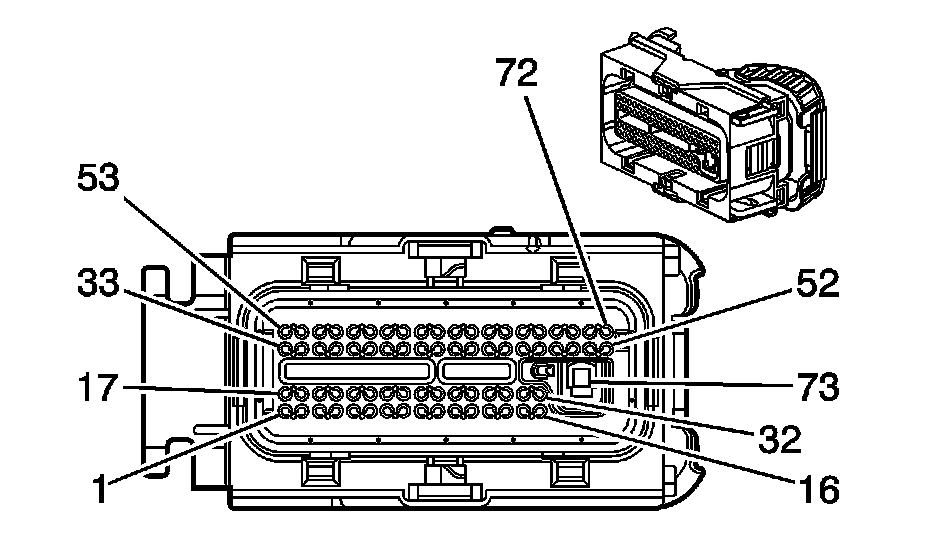

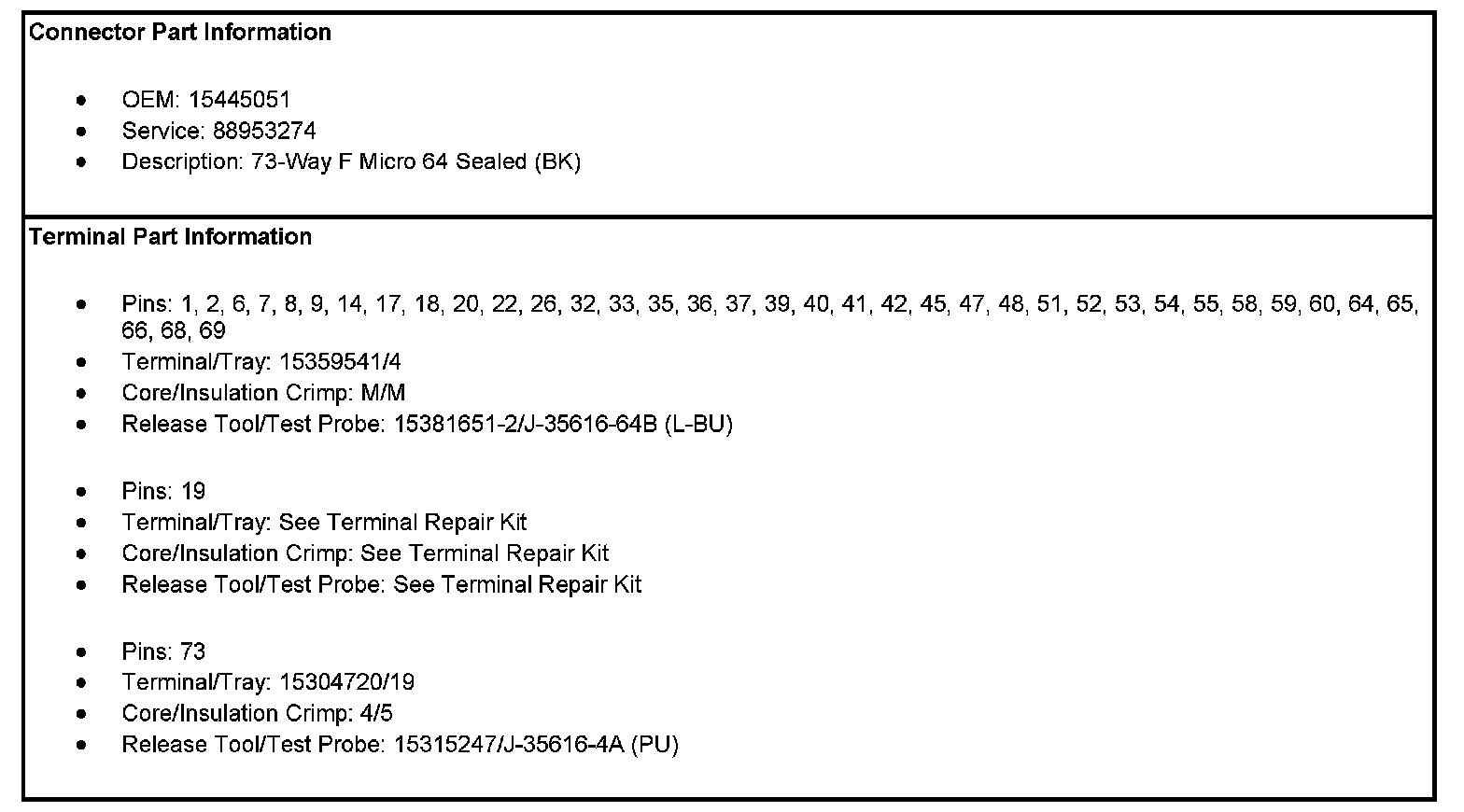

Powertrain Control Module (PCM) C2

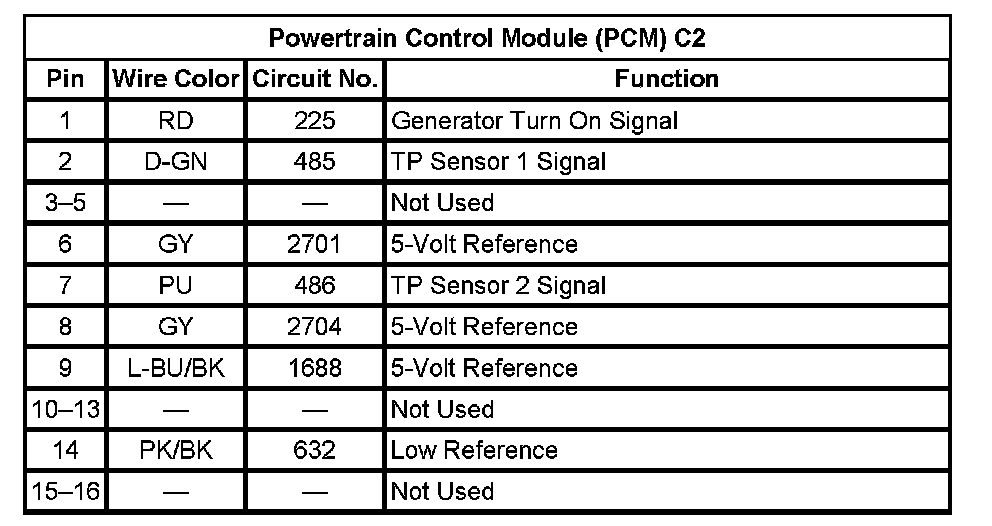

Powertrain Control Module (PCM) C2 (Pin 1 To 16):

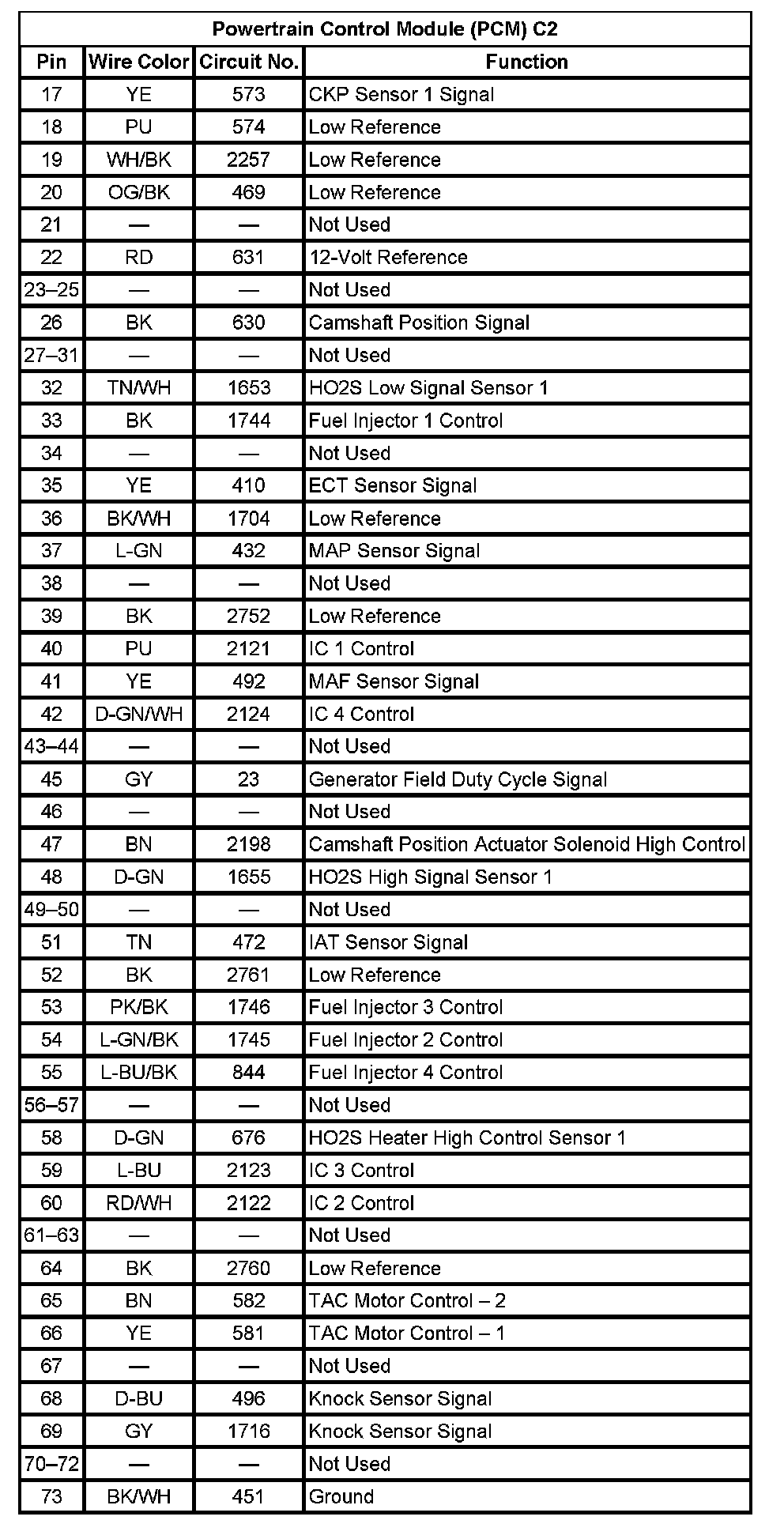

Powertrain Control Module (PCM) C2 (Pin 17 To 73):
Powertrain Control Module (PCM) C3

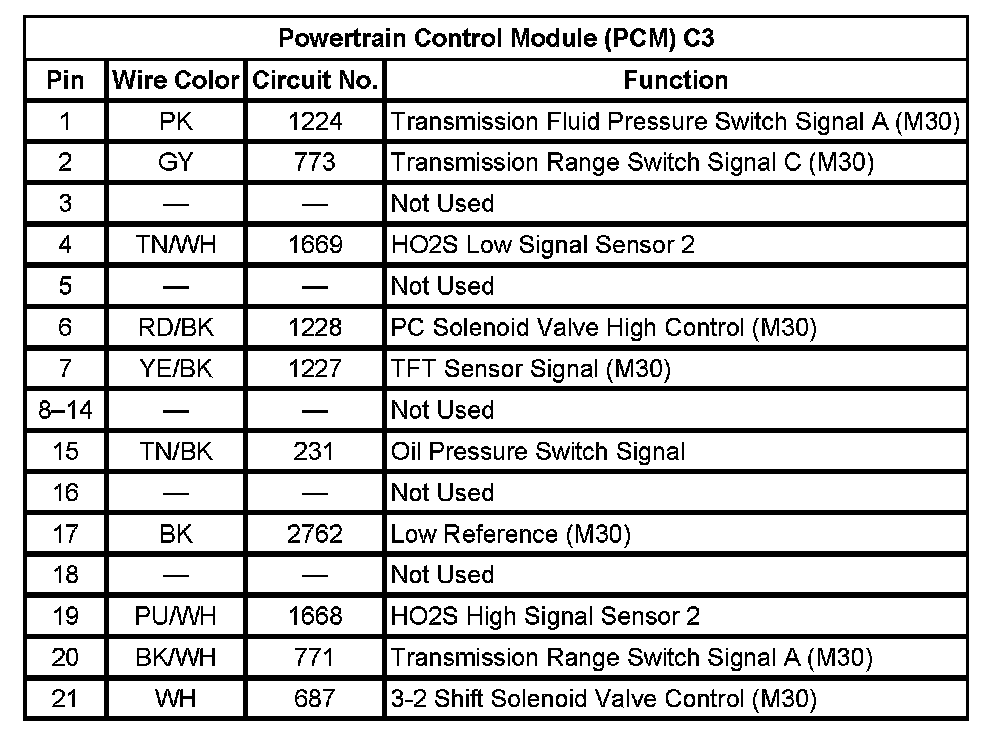

Powertrain Control Module (PCM) C3 (Pin 1 To 21):

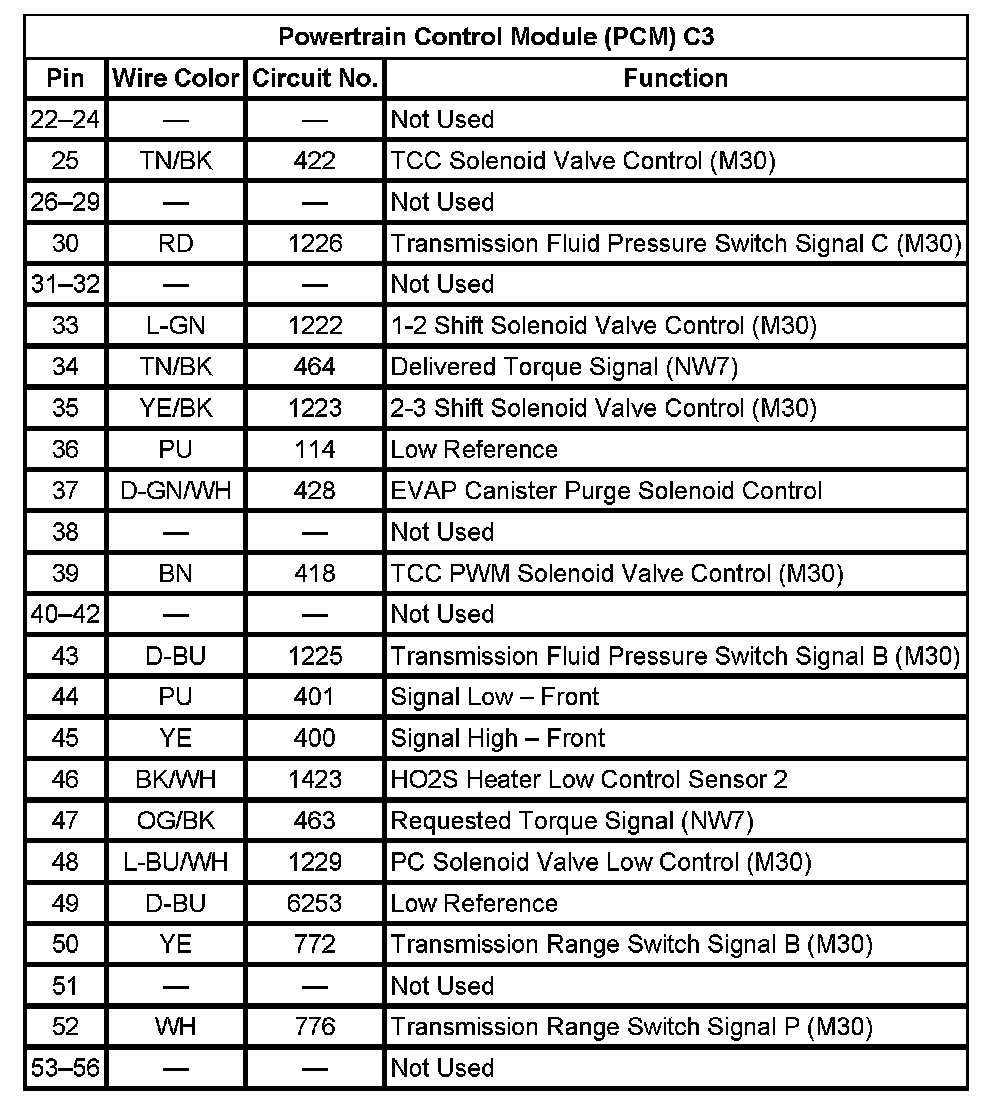

Powertrain Control Module (PCM) C3 (Pin 22 To 56):
