2007 Chevrolet Cobalt L4-2.4LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair
Knock Sensor Replacement
Removal Procedure

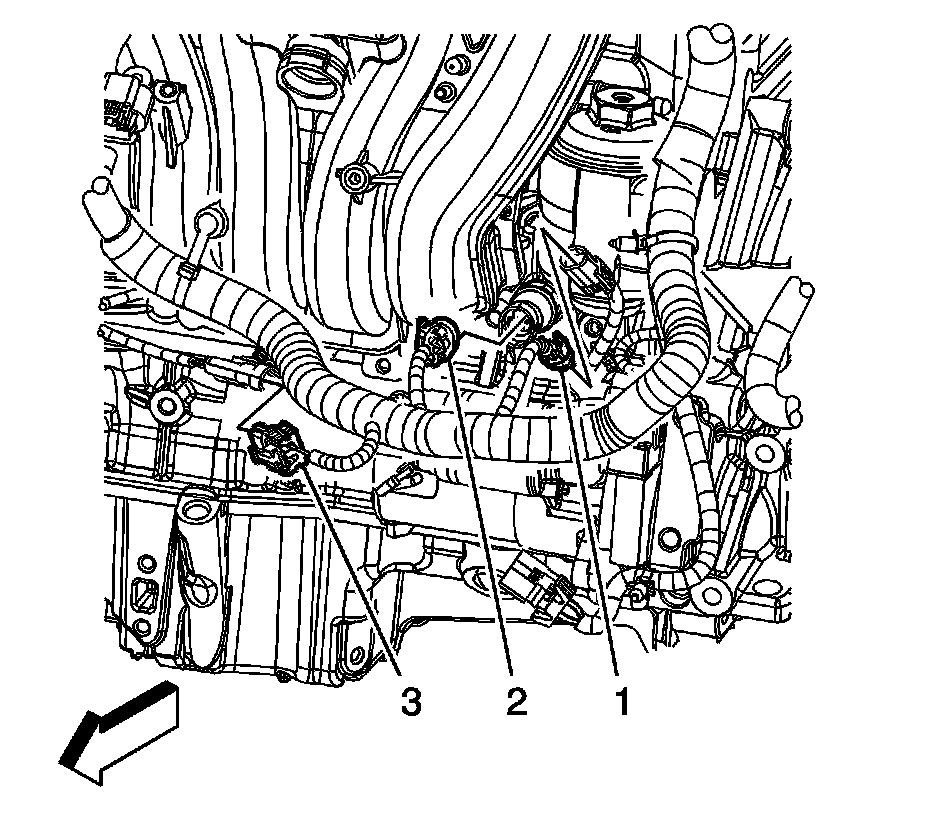

1. Disconnect the knock sensor (KS) electrical connector (3).
2. Remove the KS bolt.
3. Remove the KS.
Installation Procedure
Important: Rotate the pigtail 90 degrees from vertical before securing the fastener.
1. Install the KS.
Notice: Refer to Fastener Notice.
2. Install the KS bolt.
Tighten the bolt to 25 N.m (18 lb ft).
3. Connect the KS electrical connector (3).
