Fig 1: View Behind Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp
2	HVAC Control Module
3	Radio
4	Air Temperature Sensor - Inside
5	Steering Wheel
6	Instrument Panel Cluster (IPC)
7	Body Control Module (BCM)
8	Steering Angle Sensor
9	Vehicle Communication Interface Module (VCIM)
10	Cigar Lighter
11	Fuse Block - I/P

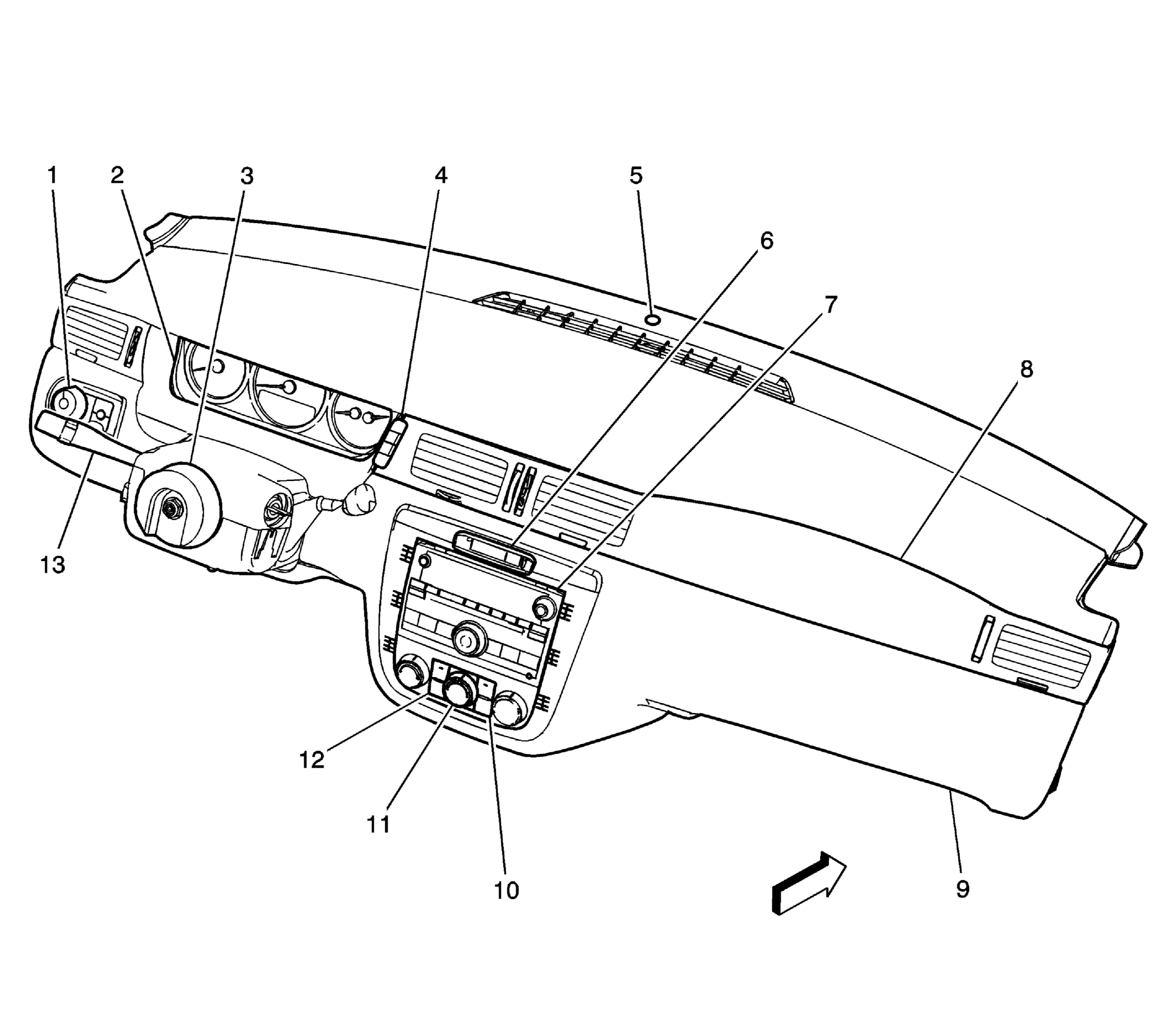

Fig 2: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Ambient Light Sensor
5	Inflatable Restraint Passenger Air Bag On/Off Indicator (Sedan w/o 9C1, 9C3)
6	Radio
7	I/P Trim Panel
8	Heated Seat Switch-Passenger (KA7)
9	HVAC Control Module
10	Heated Seat Switch-Driver (KA7)
11	Turn Signal / Multifunction Switch
