2006 Chevrolet Uplander BaseFACTORY OEM SERVICE PROCEDURE

Communication Interface Module Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

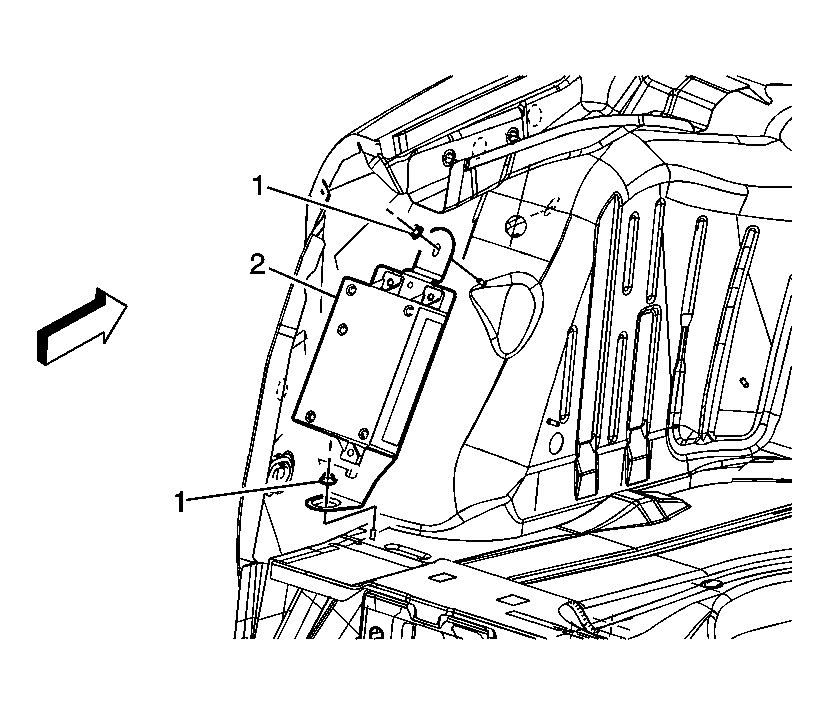

Fig 1: Replacing Communication Interface Module
GM1594537Courtesy of GENERAL MOTORS CORP.
Communication Interface Module Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
IMPORTANT: The vehicle communication interface module (VCIM) has a specific set of unique numbers that tie the module to each vehicle. These numbers, the 10-digit station identification and the 11-digit electronic serial number, are used by the National Cellular Network and OnStar® to identify the specific vehicle. Because these numbers are tied to the vehicle identification number of the vehicle, you must never exchange these parts with those of another vehicle.
