2006 Chevrolet Suburban K2500, 6.0 UFACTORY OEM SERVICE PROCEDURE

Liftgate Center Applique Replacement (Escalade)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

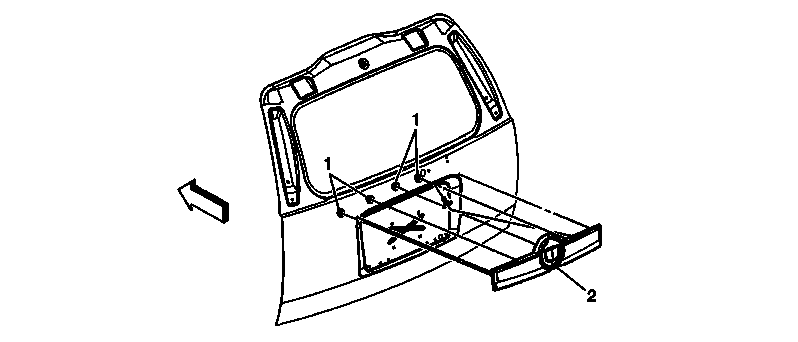

Fig 1: Liftgate Center Applique Assembly (Escalade)
GM1669836Courtesy of GENERAL MOTORS CORP.
Liftgate Center Applique Replacement (Escalade)

Callout Component Name

Preliminary Procedures

  1. Open and support the liftgate assembly.
  2. Remove the rear wiper motor. Refer to Rear Window Wiper Motor Replacement .
  3. Do Not Use Air-Type Power Tools when Performing the Following Steps:
    • Use a needle-nose type vice grip plier and ratchet type wrench.
    • Hold the very end of the applique studs secure.
    • Slowly ratchet the nut from each of the applique studs.
    • Use the access holes in the panel to access and remove the nuts.
  4. Remove the 4 applique nuts from inside the liftgate panel.
  5. Using a 8 mm socket, push the socket onto the retainers in order to release the retainer ears from the inner panel.
  6. Pull and remove the liftgate center applique from the exterior side of the body panel.
  7. Disconnect all electrical connectors from the applique panel.
1 Liftgate Center Applique Assembly Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Liftgate Center Applique Assembly
TIP:  The rearview camera, if equipped, will come as part of the new liftgate center applique assembly.
