2006 Chevrolet Suburban K1500, 5.3 ZFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Using a scan tool, retrieve the percentage of remaining engine oil. Record the remaining engine oil life.
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

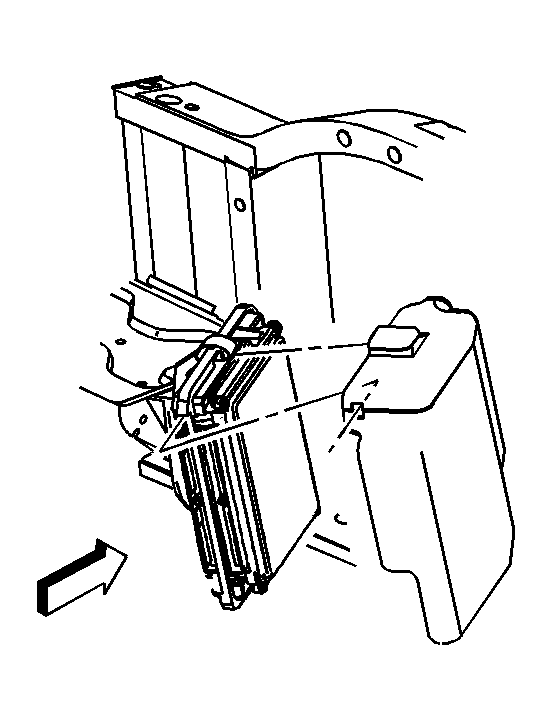

- Release the PCM cover mounting tabs.
- Release the PCM cover from the mounting brackets.
- Remove the PCM cover.
IMPORTANT:
It is necessary to record the remaining engine oil life. If the replacement module is not programed with the remaining engine oil life, the engine oil life will default to 100 percent. If the replacement module is not programmed with the remaining engine oil life, the engine oil will need to be changed at 5 000 km (3,000 mi) from the last engine oil change.
