IMPORTANT: Clean the fuel and evaporative emission (EVAP) connections and surrounding areas prior to disconnecting the lines in order to avoid possible system contamination.

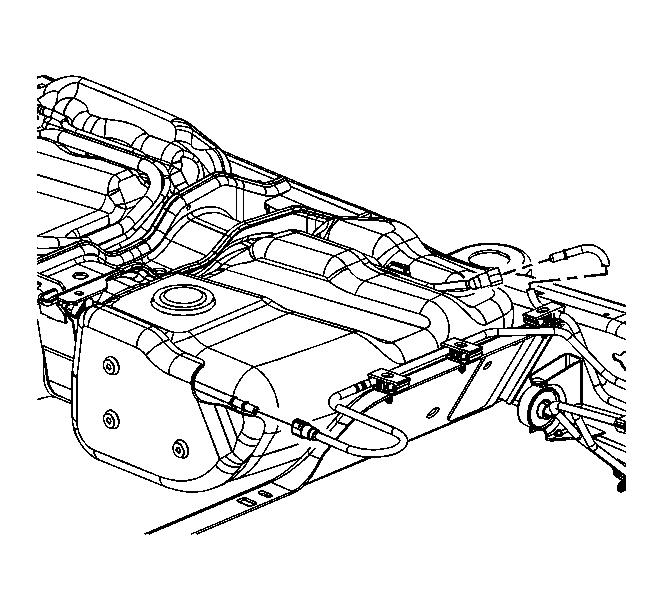

Fig 1: View Of Fuel Feed & EVAP Lines At Fuel Tank

Courtesy of GENERAL MOTORS CORP.

Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
Drain the fuel tank. Refer to Fuel Tank Draining Procedure (Single Tank) or Fuel Tank Draining Procedure (Dual Tanks - Front) or Fuel Tank Draining Procedure (Dual Tanks - Rear) or Fuel Tank Draining Procedure (5.3L (L59) Engine) .
Disconnect the vent hose quick connect fitting from the fuel tank. Refer to Quick Connect Fitting(s) Service (Plastic Collar)
Disconnect the fuel feed and EVAP lines from the fuel tank lines. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
Cap the fuel and EVAP lines in order to prevent possible fuel and/or EVAP system contamination.

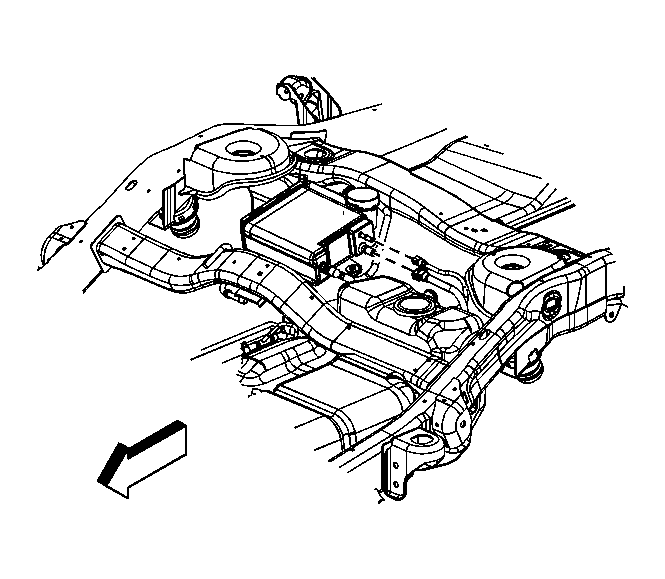

Fig 2: View Of EVAP Lines At EVAP Canister

Courtesy of GENERAL MOTORS CORP.

Disconnect the EVAP lines from the EVAP canister. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .

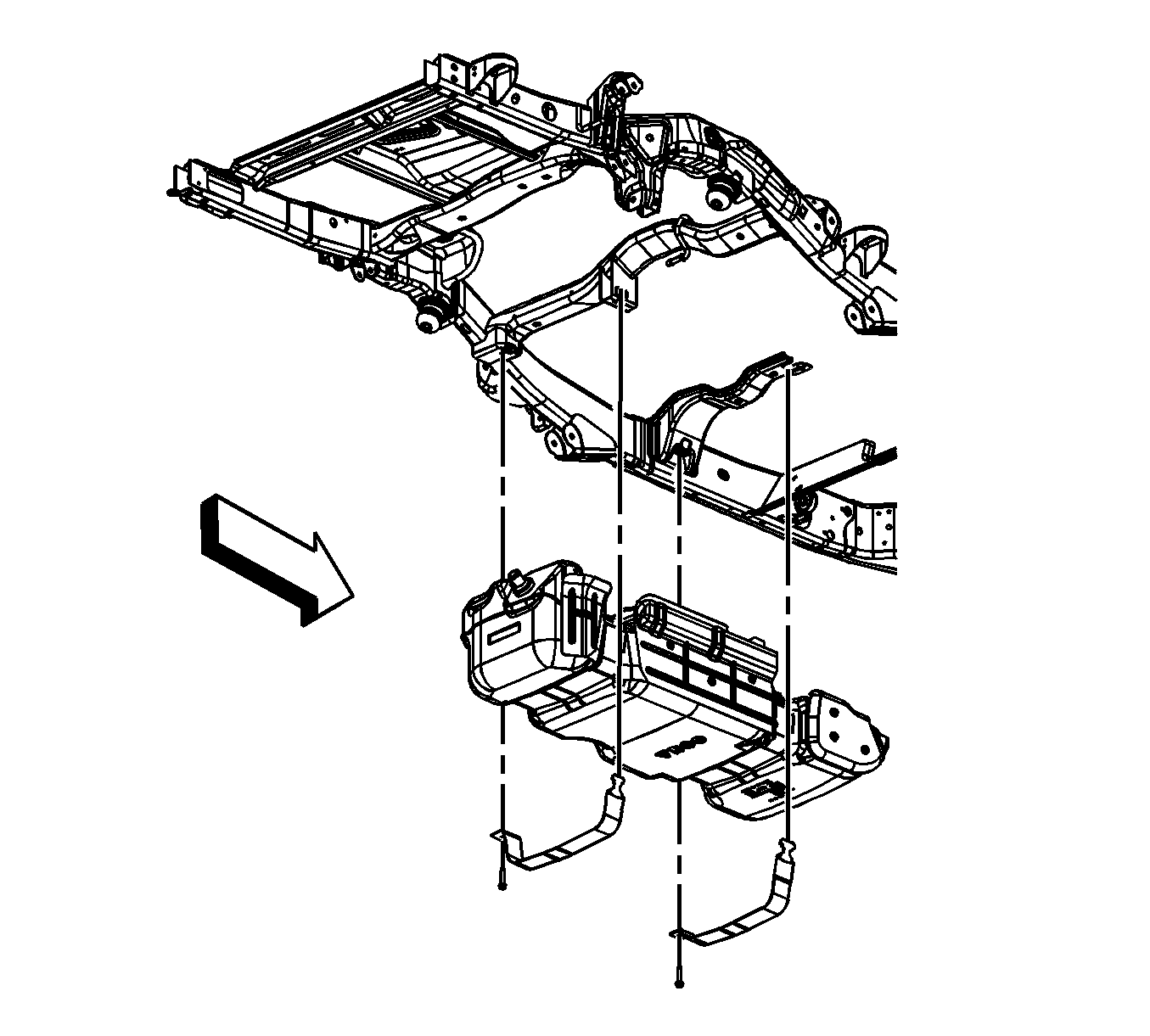

Fig 3: View Of Fuel Tank & Straps (Single Tank)

Courtesy of GENERAL MOTORS CORP.
