2006 Chevrolet Suburban K1500, 5.3 ZFACTORY OEM SERVICE PROCEDURE

Removal Procedure

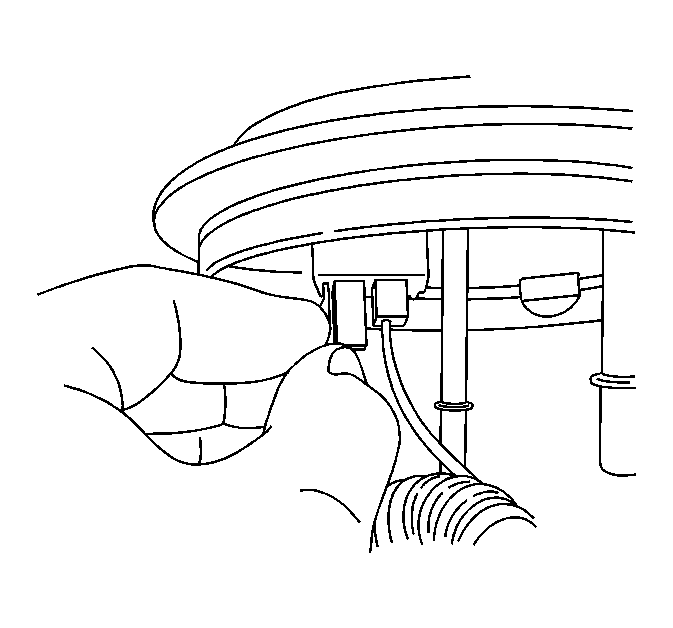

Fig 1: View Of Electrical Connector Retainer

GM1341841

Courtesy of GENERAL MOTORS CORP.

Remove the fuel sending unit. Refer to Fuel Sender Assembly Replacement (4.8L and 5.3L Engines) or Fuel Sender Assembly Replacement (5.3L (L59) Engine) or Fuel Sender Assembly Replacement (6.0L Engine - Dual Tanks - Front) or Fuel Sender Assembly Replacement (6.0L Engine - Dual Tanks - Rear) .
Push in the retainer in order to disengage the electrical connector.

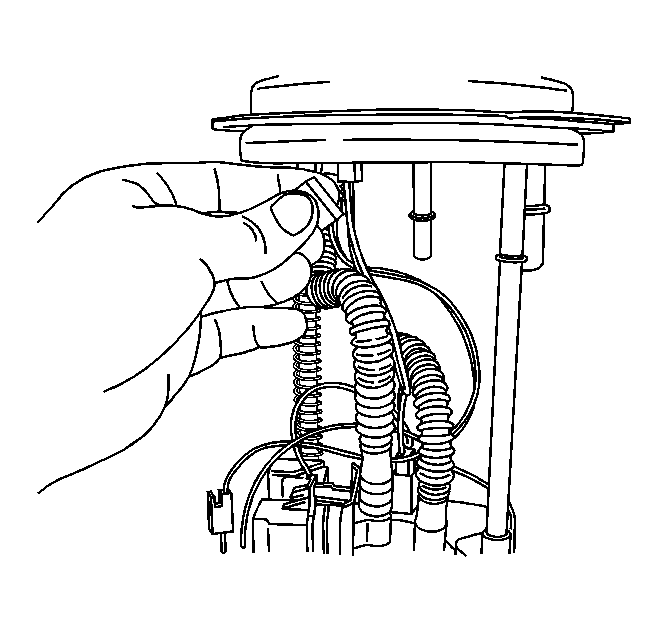

Fig 2: View Of Fuel Level Sensor Electrical Connector (4.8L & 5.3L)

GM1341843

Courtesy of GENERAL MOTORS CORP.

Remove the fuel level sensor electrical connector.

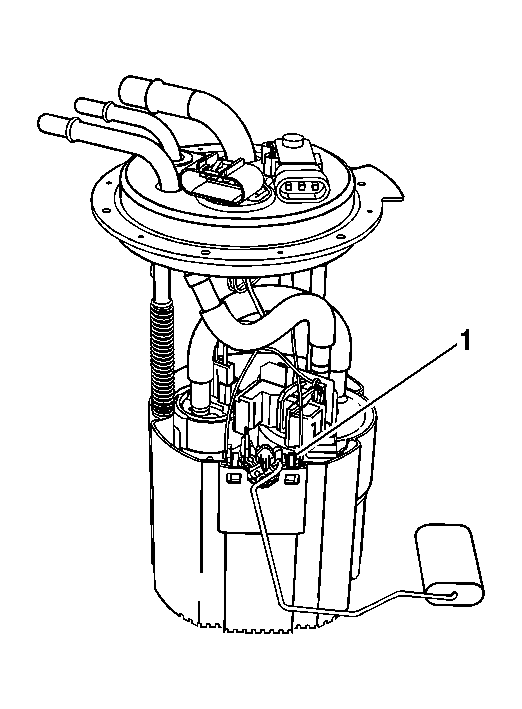

Fig 3: View Of Locking Tangs At Sending Unit Bucket

GM1332659

Courtesy of GENERAL MOTORS CORP.

Push the locking tangs (1) in towards the interior of the sending unit bucket.

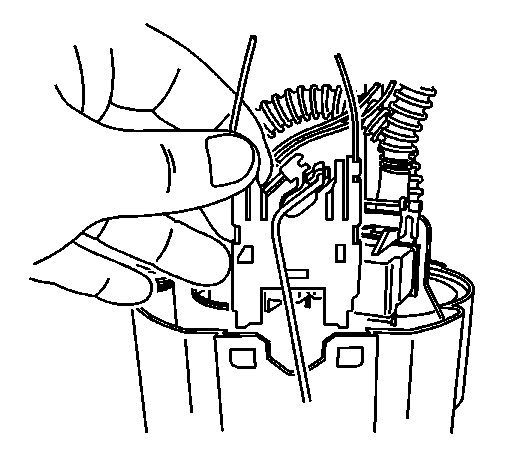

Fig 4: View Of Fuel Level Sensor At Sending Unit Bucket (4.8L & 5.3L)

GM1341846

Courtesy of GENERAL MOTORS CORP.

Slide the fuel level sensor up and out from the sending unit bucket.
