2006 Chevrolet Suburban K1500, 5.3 ZFACTORY OEM SERVICE PROCEDURE

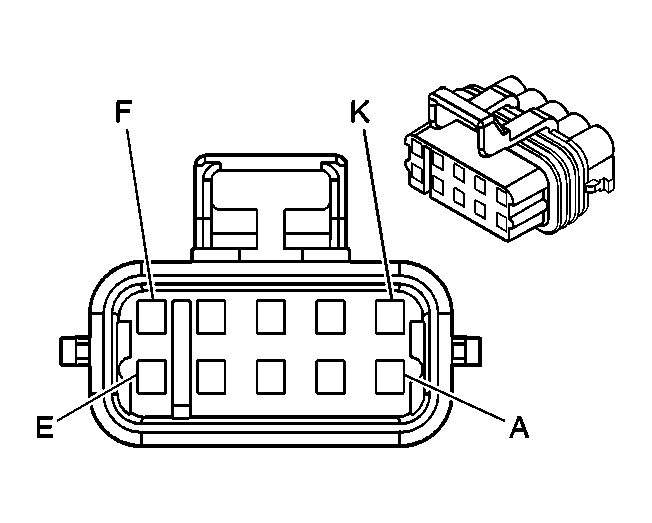

Throttle Actuator Control (TAC) Module Connector End View - C2
Engine Controls Connector End Views
Connector Part Information
|
Throttle Actuator Control (TAC) Module - C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | - | - | Not Used |
| B | PU | 1272 | 5-Volt Reference |
| C | L-BU | 1162 | APP Sensor 2 Signal |
| D | TN | 1274 | Low Reference |
| E | - | - | Not Used |
| F | D-BU | 1161 | APP Sensor 1 Signal |
| G | WH/BK | 1164 | 5-Volt Reference |
| H | - | - | Not Used |
| J | BN | 1271 | Low Reference |
| K | - | - | Not Used |
