Installation Procedure
- Position the module into the vehicle.
- Connect the lower electrical harness connectors (2).
- Slide the module (2) to the left to engage the lower retainers.

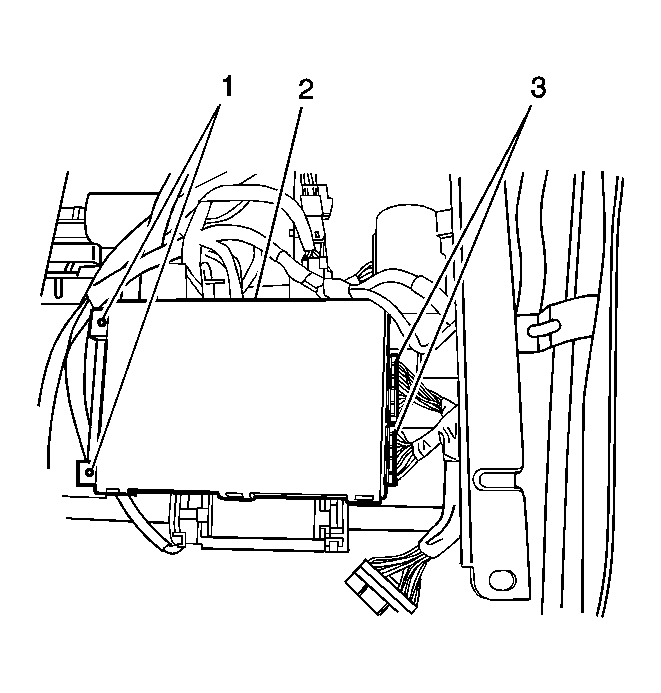

- Install the module retaining screws (3).
Tighten: Tighten the screws to 3 N.m (26 lb in).
- Connect the upper electrical harness connectors (3).
- Install the seat cushion. Refer to Seat Cushion Frame Replacement - Front .
- If a new memory seat module was installed, calibrate the seat. Refer to Memory Seat Calibration Procedure .
