2006 Chevrolet Suburban K1500, 5.3 ZFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Raise and support the window glass.
- Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
- Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
- Disconnect the harness from the electric window motor assembly.
- Remove the 2 bolts that hold the window glass to the regulator.

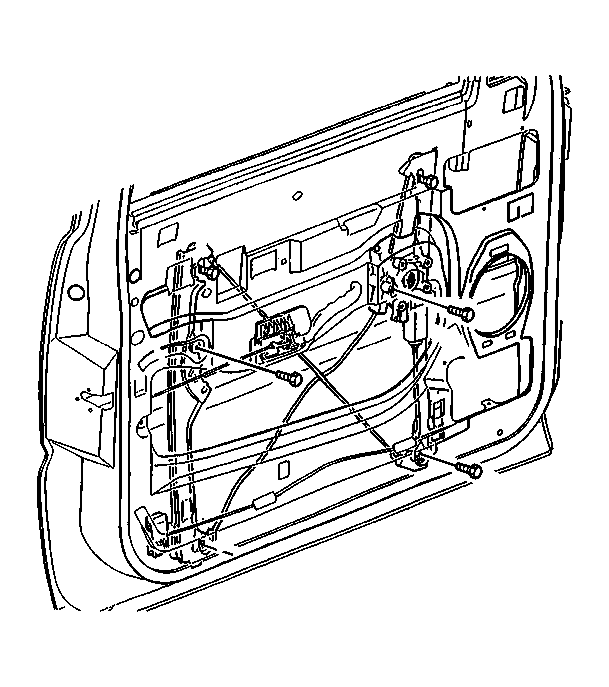

- Remove the bolts from the window regulator.
- Remove the window regulator assembly from the door by folding both sides of the window regulator assembly together.
