2006 Chevrolet Suburban C1500, 5.3 ZFACTORY OEM SERVICE PROCEDURE
Inflatable Restraint Instrument Panel Module Indicator Replacement
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

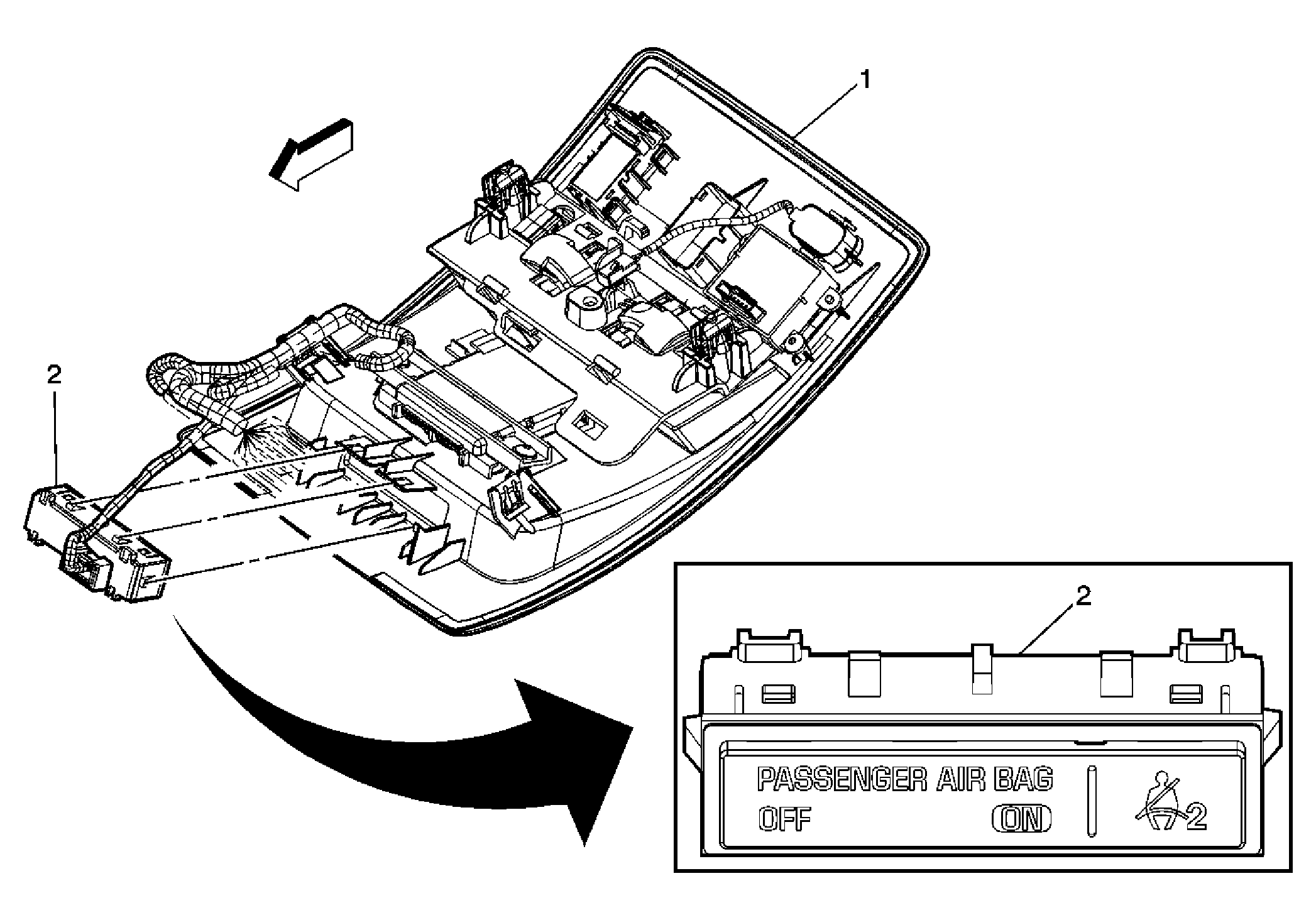

Fig 1: View Of Instrument Panel Inflatable Restraint Module Indicator Assembly & Overhead Console Assembly
Inflatable Restraint Instrument Panel Module Indicator Replacement
| Callout | Component Name |
|---|---|
| 1 | Overhead Console Assembly Refer to Roof Console Replacement . |
| 2 | Inflatable Restraint Instrument Panel Module indicator Assembly Tip:
|
