2006 Chevrolet SSR AutomaticFACTORY OEM SERVICE PROCEDURE

Cruise Control Component Views

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

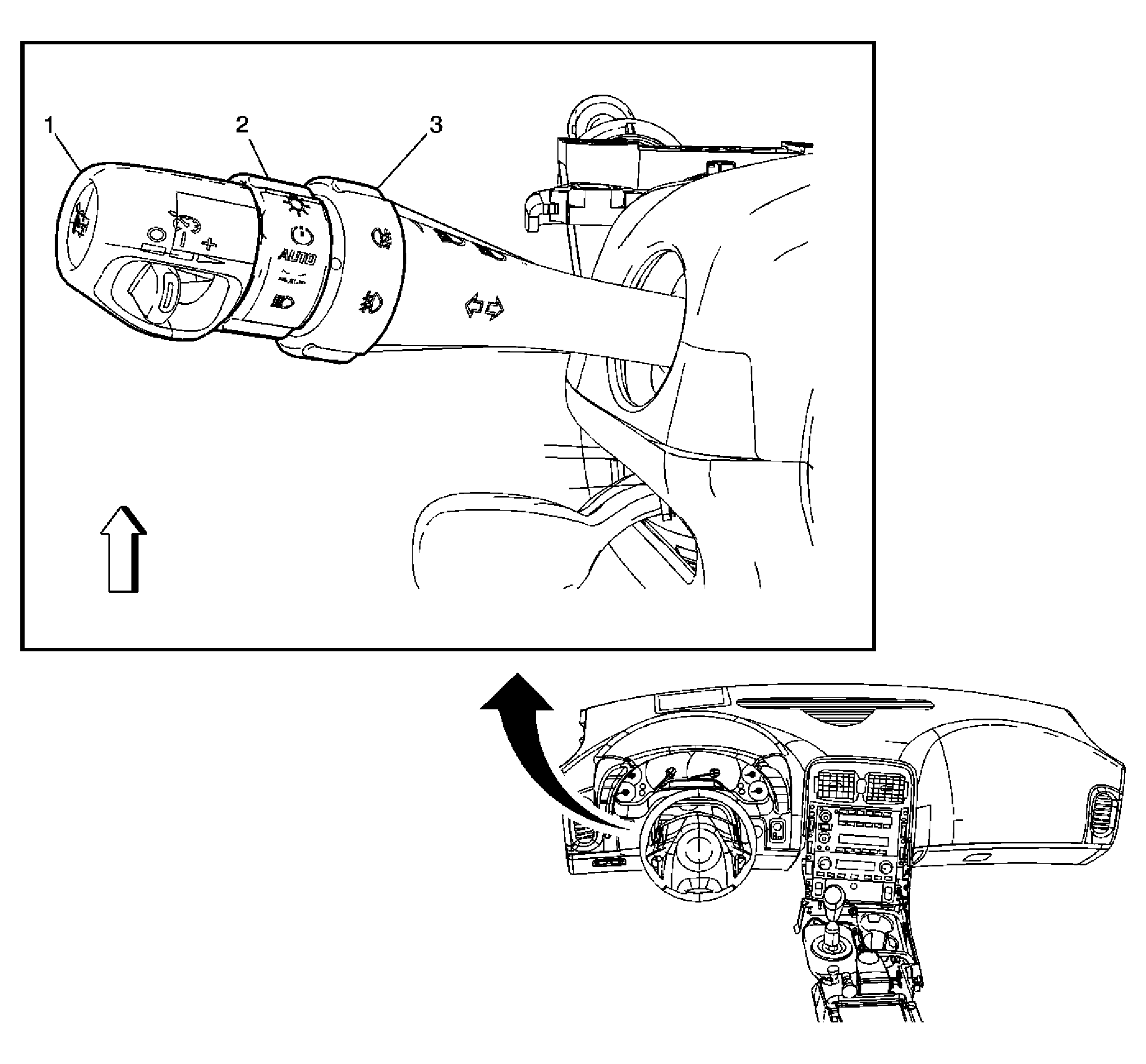

Fig 1: Left Side of Steering Wheel (T79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Headlamp Switch
3	Fog Lamp Switch (T79)

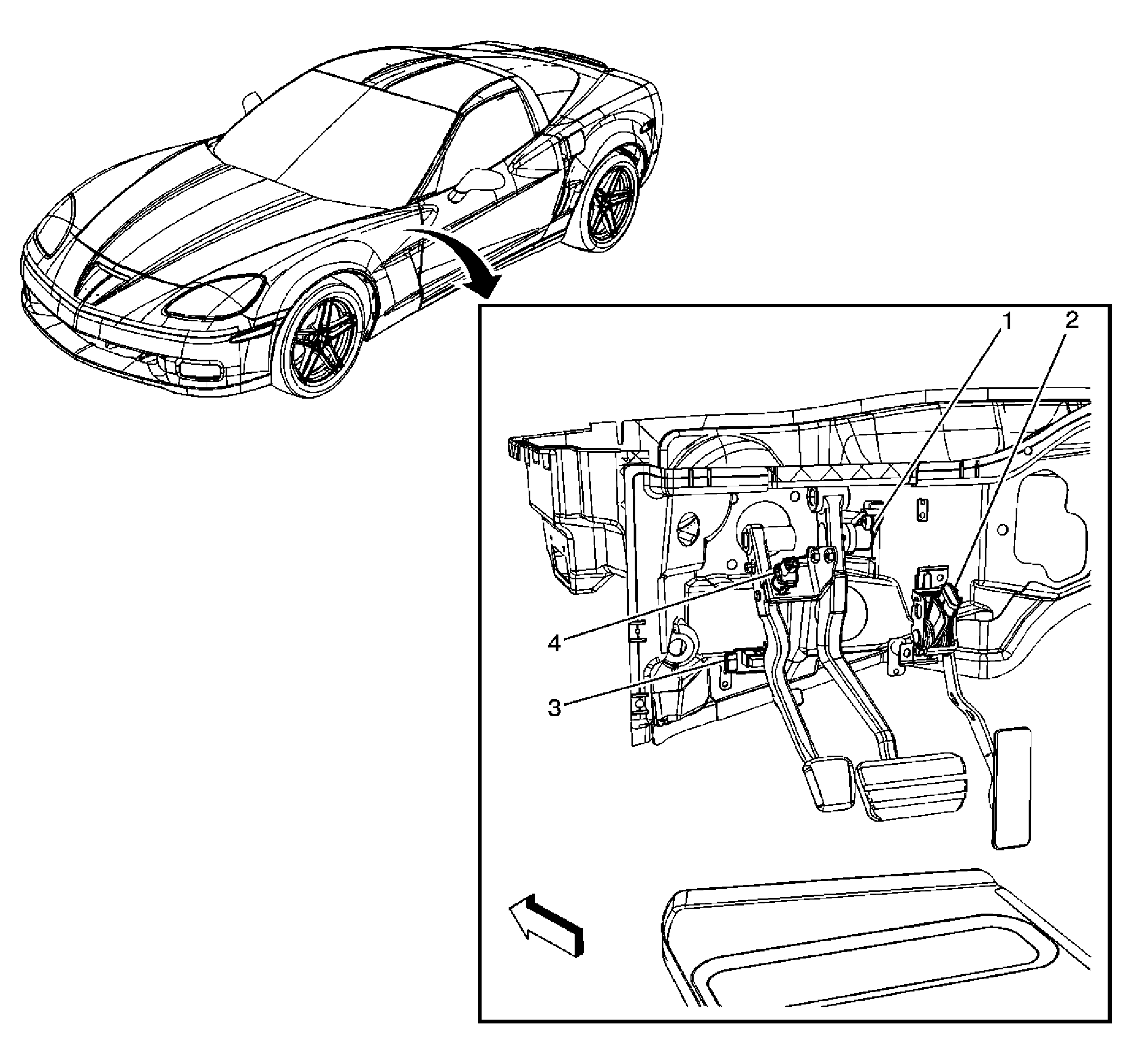

Fig 2: Lower Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Clutch Start Switch
4	Clutch Pedal Position Switch
