2006 Chevrolet SSR AutomaticFACTORY OEM SERVICE PROCEDURE

Remote Control Door Lock Receiver Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

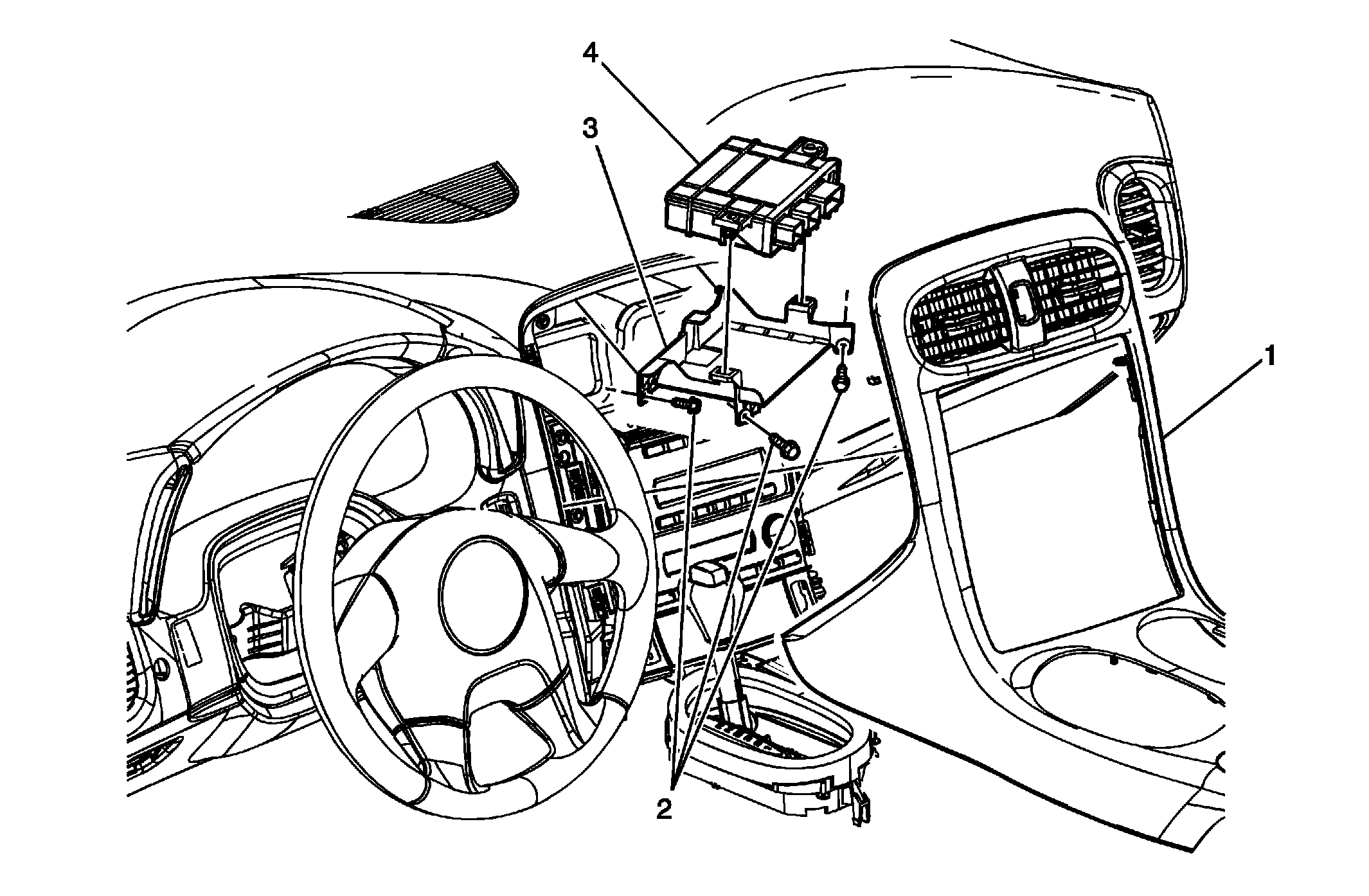

Fig 1: View Of Remote Control Door Lock Receiver & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Plate Assembly, Instrument Panel (I/P) Tip: Remove the I/P accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
2	Screws, Remote Control Door Lock Receiver Bracket (Qty: 3) Tighten: 3 N.m (27 lb in)
3	Bracket, Remote Control Door Lock Receiver
4	Receiver, Remote Control Door Lock Tip: Release the retaining clips to remove the receiver from the bracket. Reprogram the receiver. Refer to Control Module References for programming and setup information.
