Installation Procedure

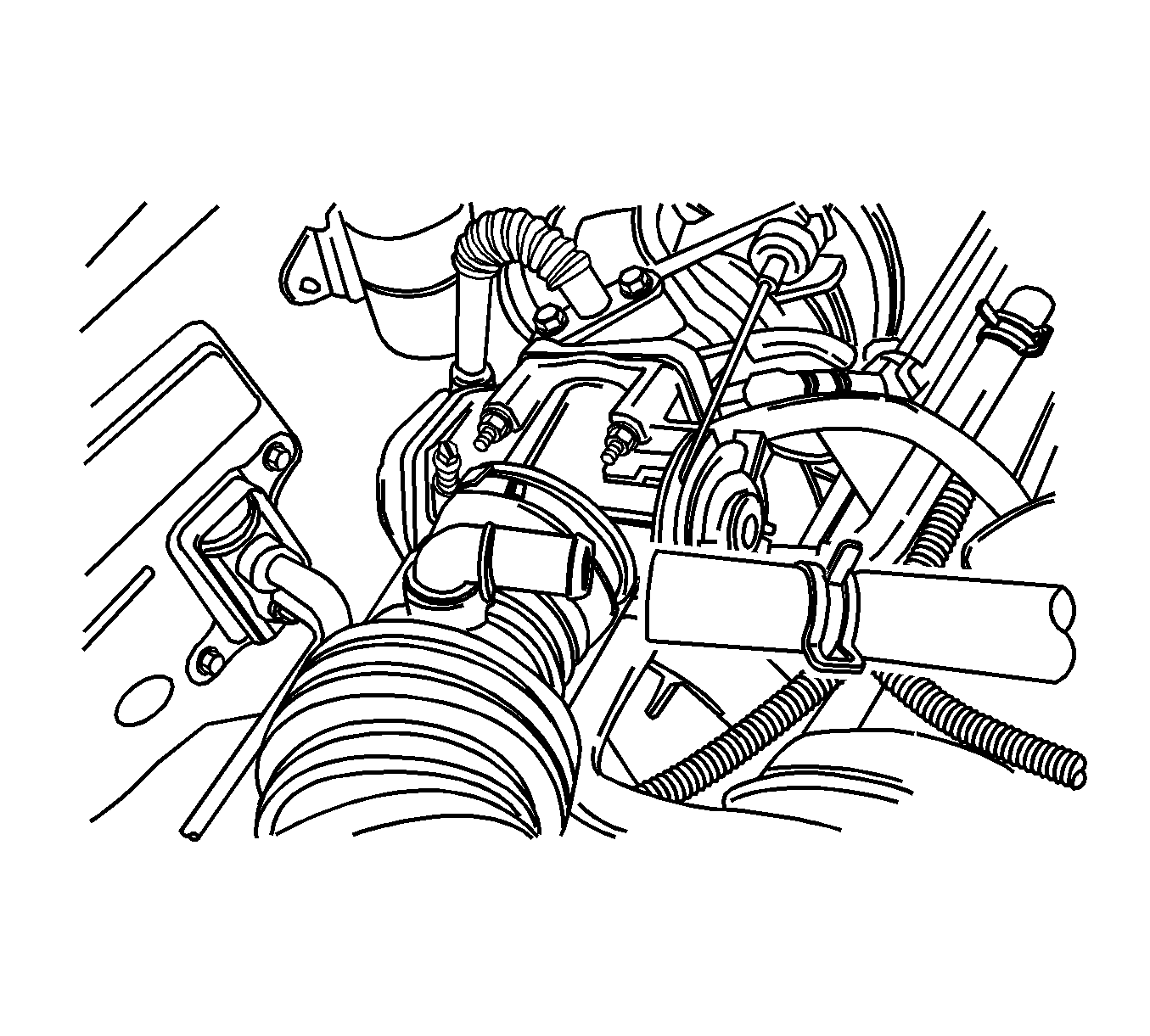

- Install the throttle body assembly to the intake manifold.
- Install the throttle body retaining nuts and the bolt.
Tighten: Tighten the throttle body retaining nuts and the bolt to 15 N.m (11 lb ft) .

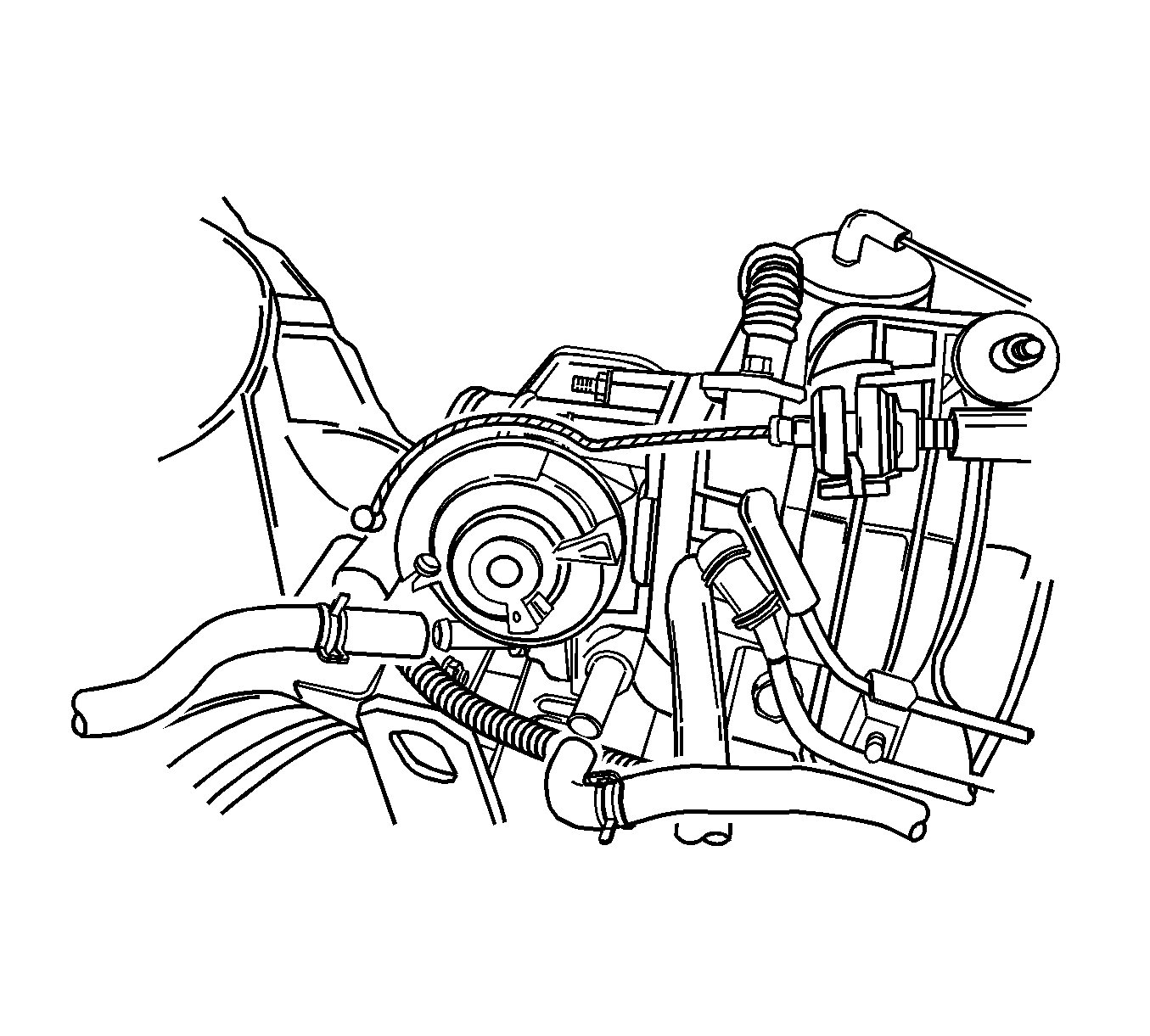

- Connect the throttle cable.
- Connect the coolant hoses.
- Connect the breather hose.
- Install the intake air tube.
- Connect the negative battery cable.
