2006 Chevrolet Epica LTFACTORY OEM SERVICE PROCEDURE

Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Remove the battery. Refer to Battery Tray Replacement in Engine Electrical.
    2. Fig 1: View Of ECM, Bracket And Nuts
    GM1372459Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine control module (ECM) bracket nuts.

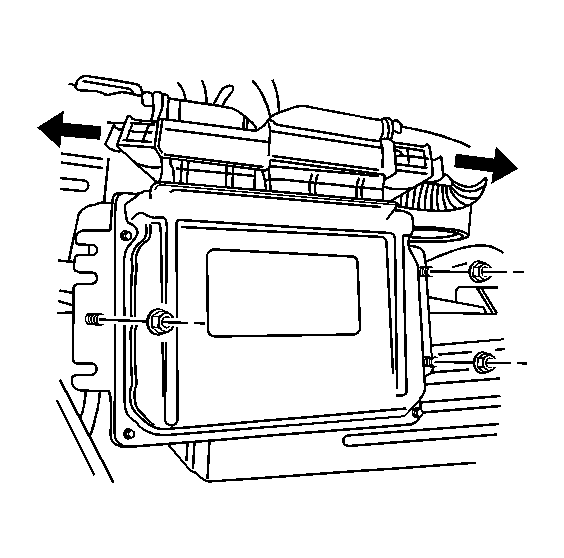

    3. Fig 2: View Of ECM And Retaining Nuts
    GM1372457Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the ECM connector.
  4. Remove the ECM retaining nuts and the ECM.
