2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

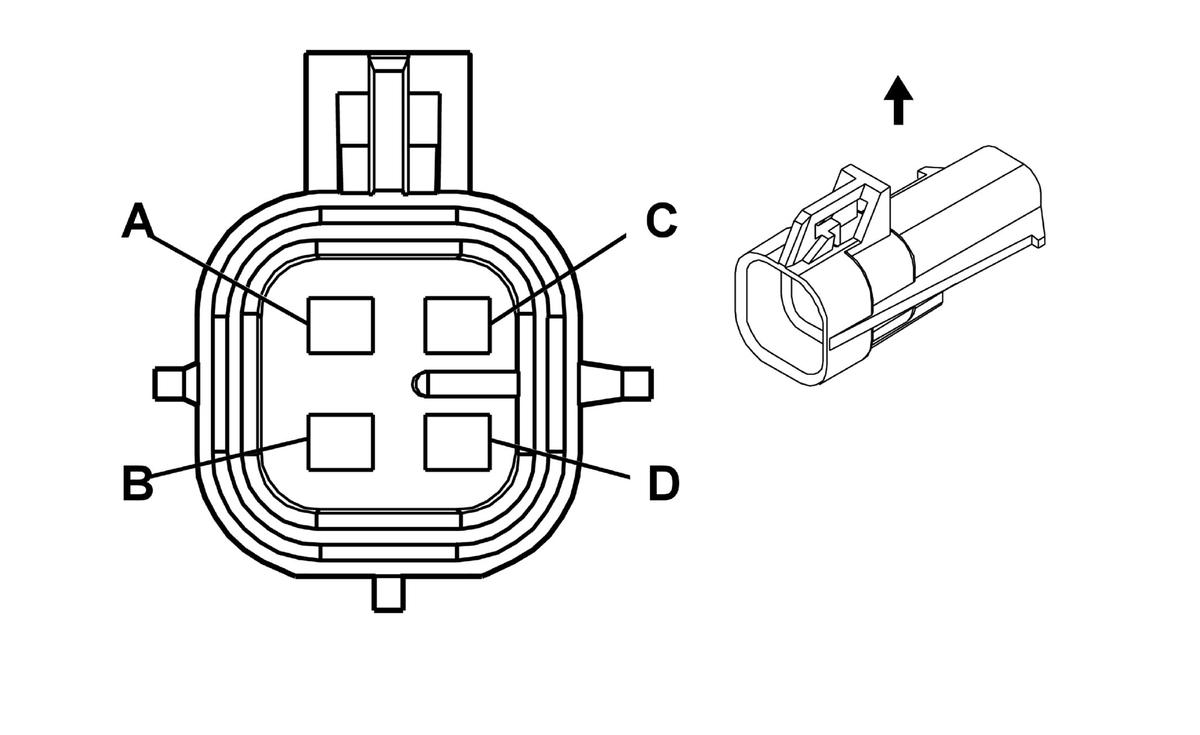

Heated Oxygen Sensor (HO2S) Connector End View
Heated Oxygen Sensor (HO2S) 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 3111 | Heated Oxygen Sensor Low Signal Bank 1 Sensor (1) |
| B | PU/WH | 3110 | Heated Oxygen Sensor High Signal Bank 1 Sensor (1) |
| C | GY/WH | 3113 | Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1) |
| D | PK/BK | 5291 | Engine Main Relay Fused Control (2) |
Heated Oxygen Sensor (HO2S) 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 1669 | Heated Oxygen Sensor Low Signal Bank 1 Sensor (2) |
| B | PU/WH | 1668 | Heated Oxygen Sensor High Signal Bank 1 Sensor (2) |
| C | PK/BK | 5291 | Engine Main Relay Fused Control (2) |
| D | GY/WH | 1423 | Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (2) |
