2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

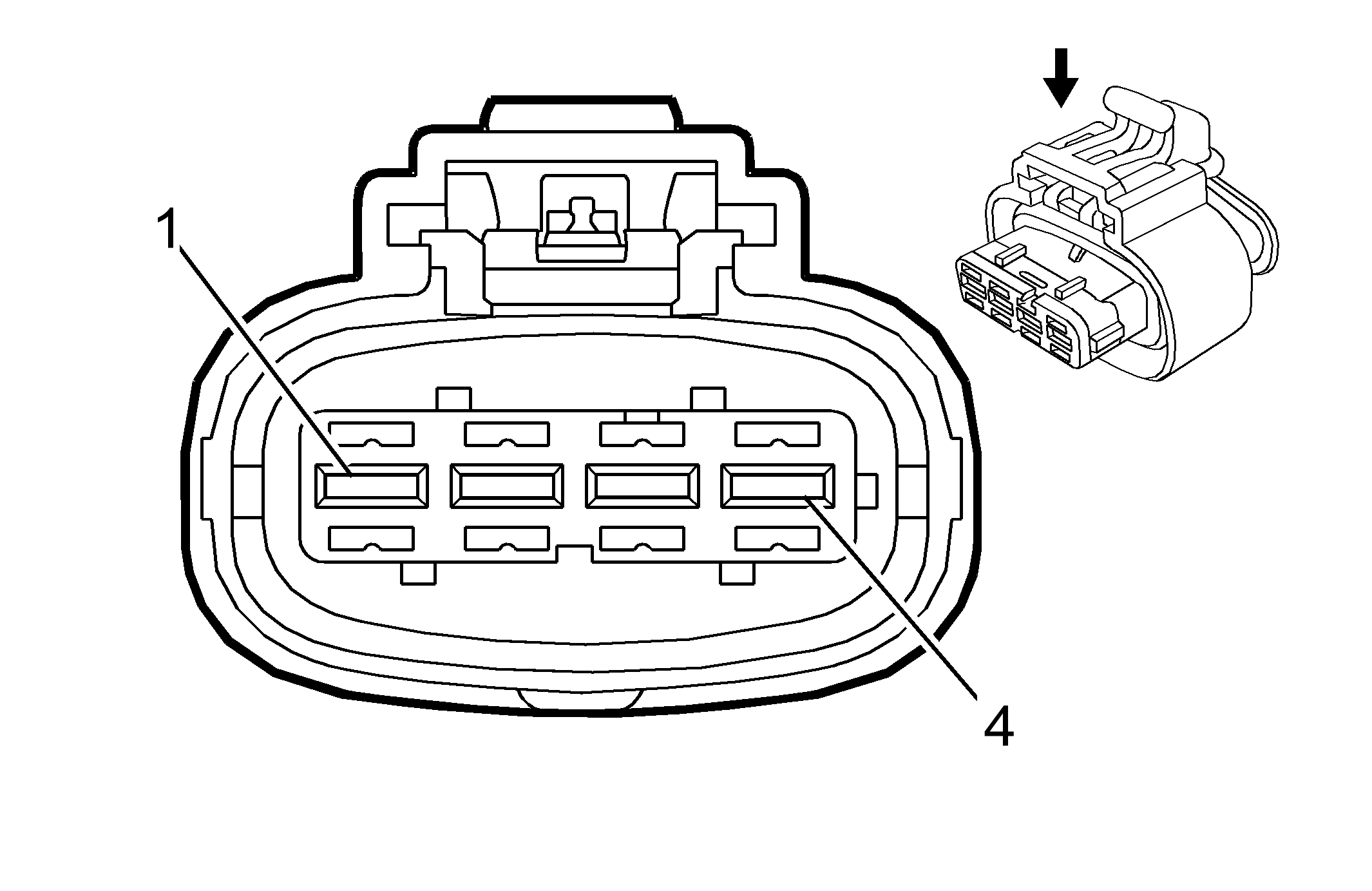

Manifold Absolute Pressure (MAP) Sensor Connector End View

Manifold Absolute Pressure (MAP) Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 10763258 Service: 88988320 4-Way F Receptacle 2.8 Series Sealed (BK)
Pin	Wire Color	Circuit No.	Function
1	D-GN/WH	6292	Low Reference
2	L-BU	6118	IAT 2 Sensor Signal
3	D-GN	6291	5 Volt Reference
4	GY	6337	MAP Sensor Signal
