2006 Chevrolet Cobalt SS, 4D Sedan, Standard

Engine Control Module (ECM) Connector End Views

2006 Chevrolet Cobalt SS, 4D Sedan, StandardSECTION Engine Control Module (ECM) Connector End Views

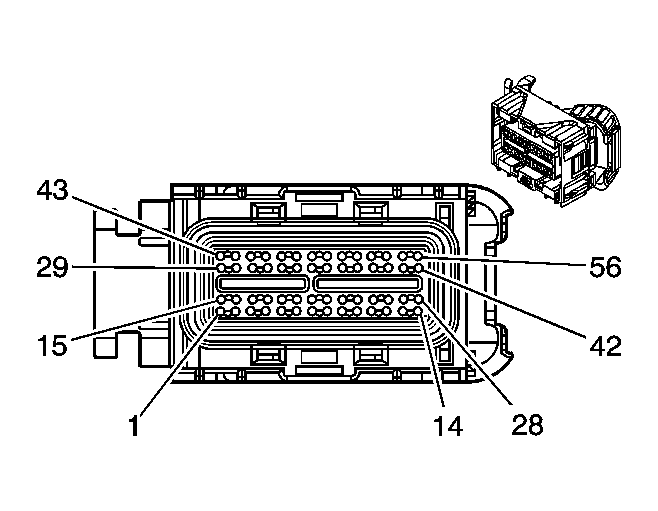

Engine Control Module (ECM) C1

GM1228485Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15452125
  • Service: See Catalog
  • 56-Way F Micro 64 Series Sealed (BU)
Pin Wire Color Circuit No. Function
1 PU 1589 Primary Fuel Level Sensor Signal
2 L-BU 1162 Accelerator Pedal Position Signal (2)
3 D-GN 890 Fuel Tank Pressure Sensor Signal
4 D-BU 1161 Accelerator Pedal Position Signal (1)
5 - - Not Used
6 D-GN 1433 Clutch Start Switch Signal
7 - - Not Used
8 BN/WH 379 Cruise Control Clutch Pedal Position Switch Signal
9 PU 420 Torque Converter Clutch Brake Switch Signal
10 WH/BK 1164 Accelerator Pedal Position 5-Volt Reference (1)
11 L-BU 20 Stop Lamp Supply Voltage
12 BN 4 Accessory Voltage
13 GY 2709 Fuel Tank Pressure Sensor 5-Volt Reference
14 D-GN/WH 465 Fuel Pump Primary Relay Control
15-17 - - Not Used
18 BN 5069 Engine Main Relay Coil Control
19-27 - - Not Used
28 PK/BK 1039 Run/Crank Ignition 1 Voltage
29 PU 421 Air Injection Reaction Solenoid Relay Coil Control
30 WH 1310 EVAP Canister Vent Solenoid Control
31 D-GN/WH 459 A/C Compressor Clutch Relay Control
32-40 - - Not Used
41 TN 1274 Accelerator Pedal Position 5-Volt Reference (2)
42 - - Not Used
43 D-BU 473 High Speed Cooling Fan Relay Control
44 - - Not Used
45 BN/WH 419 Check Engine Indicator Control
46 YE 447 Starter Relay Coil Control
47-51 - - Not Used
52 RD/WH 840 Battery Positive Voltage
53 BN 1271 Accelerator Pedal Position Low Reference (1)
54 TN 2759 Fuel Tank Pressure Sensor Low Reference
55 - - Not Used
56 PU 1272 Accelerator Pedal Position Low Reference (2)

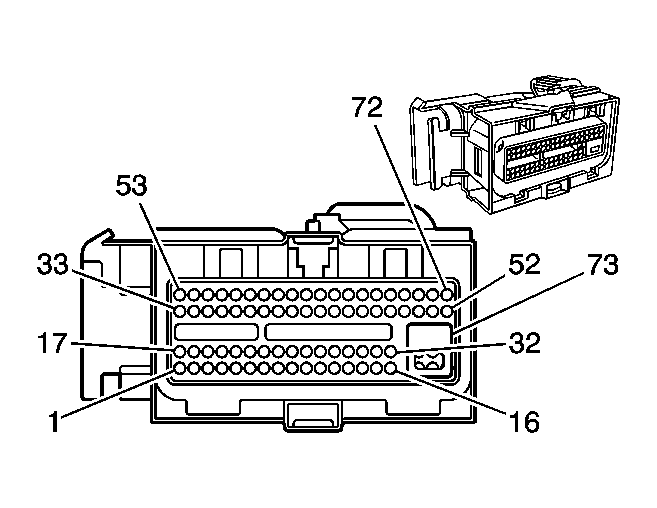

Engine Control Module (ECM) C2

GM1332467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15452126
  • Service: See Catalog
  • 73-Way F GT 280 Series Micro 64 Sealed
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 YE 581 Throttle Actuator Control Open
4 - - Not Used
5 BN 582 Throttle Actuator Control Close
6-9 - - Not Used
10 TN 1744 Fuel Injector Control (1)
11 PK/BK 1746 Fuel Injector Control (3)
12 L-BU/BK 844 Fuel Injector Control (4)
13 L-GN/BK 1745 Fuel Injector Control (2)
14 - - Not Used
15 D-GN/WH 428 EVAP Canister Purge Solenoid Control
16 - - Not Used
17 GY/WH 1423 Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (2)
18 YE 400 Vehicle Speed Sensor Signal
19 PU 401 Vehicle Speed Sensor Low Reference
20-23 - - Not Used
24 GY 2701 Throttle Position Sensor 5-Volt Reference
25 GY/BK 2704 Manifold Absolute Pressure Sensor 5-Volt Reference
26 L-BU/BK 1688 5-Volt Reference
27 - - Not Used
28 GY 2700 A/C Pressure Sensor 5-Volt Reference (C67)
29 TN/WH 1704 Sensor Low Reference
30 - - Not Used
31 TN 2752 Throttle Position Sensor Low Reference
32-33 - - Not Used
34 PK 5293 Engine Main Relay Fused Control (4)
36 PU 486 Throttle Position Sensor Signal (2)
37 - - Not Used
38 TN 2760 Intake Air Temperature Sensor Low Reference
39 - - Not Used
40 OG/BK 469 Manifold Absolute Pressure Sensor Low Reference
41 PU/WH 3110 Heated Oxygen Sensor High Signal Bank 1 Sensor (1)
42 TN/WH 3111 Heated Oxygen Sensor Low Signal Bank 1 Sensor (1)
43 PU/WH 1668 Heated Oxygen Sensor High Signal Bank 1 Sensor (2)
44 TN/WH 1669 Heated Oxygen Sensor Low Signal Bank 1 Sensor (2)
45-46 - - Not Used
47 D-GN 335 Low Speed Cooling Fan Relay Control
48 TN/BK 231 Oil Pressure Switch Signal
49 OG/BK 380 A/C Refrigerant Pressure Sensor Signal (C67)
50 YE 410 Engine Coolant Temperature Sensor Signal
51 GY/WH 23 Generator Field Duty Cycle Signal
52 YE 492 Mass Air Flow Sensor Signal
53 GY/WH 3113 Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1)
54 WH 423 Ignition Control Timing Control (1)
55 OG 406 Ignition Control Timing Control (2)
56-57 - - Not Used
58 D-GN 485 Throttle Position Sensor Signal (1)
59 BK/WH 2751 Signal Ground
60 - - Not Used
61 TN 2761 Coolant Temperature Sensor Low Reference
62 L-GN 432 Manifold Absolute Pressure Sensor Signal
63 OG 225 Generator Turn On Signal
64 TN/BK 2500 High Speed GMLAN Serial Data (+) (1)
65 TN 2501 High Speed GMLAN Serial Data (-) (1)
66 YE 573 Crankshaft Position Sensor Signal (1)
67 PU 574 Crankshaft Position Sensor Low Reference (1)
68 TN 472 Intake Air Temperature Sensor Signal
69 - - Not Used
70 BN/WH 633 Camshaft Position Sensor Signal
71 GY 1716 Knock Sensor Low Reference (1)
72 D-BU 496 Knock Sensor Signal (1)
73 BK/WH 451 Signal Ground
