2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

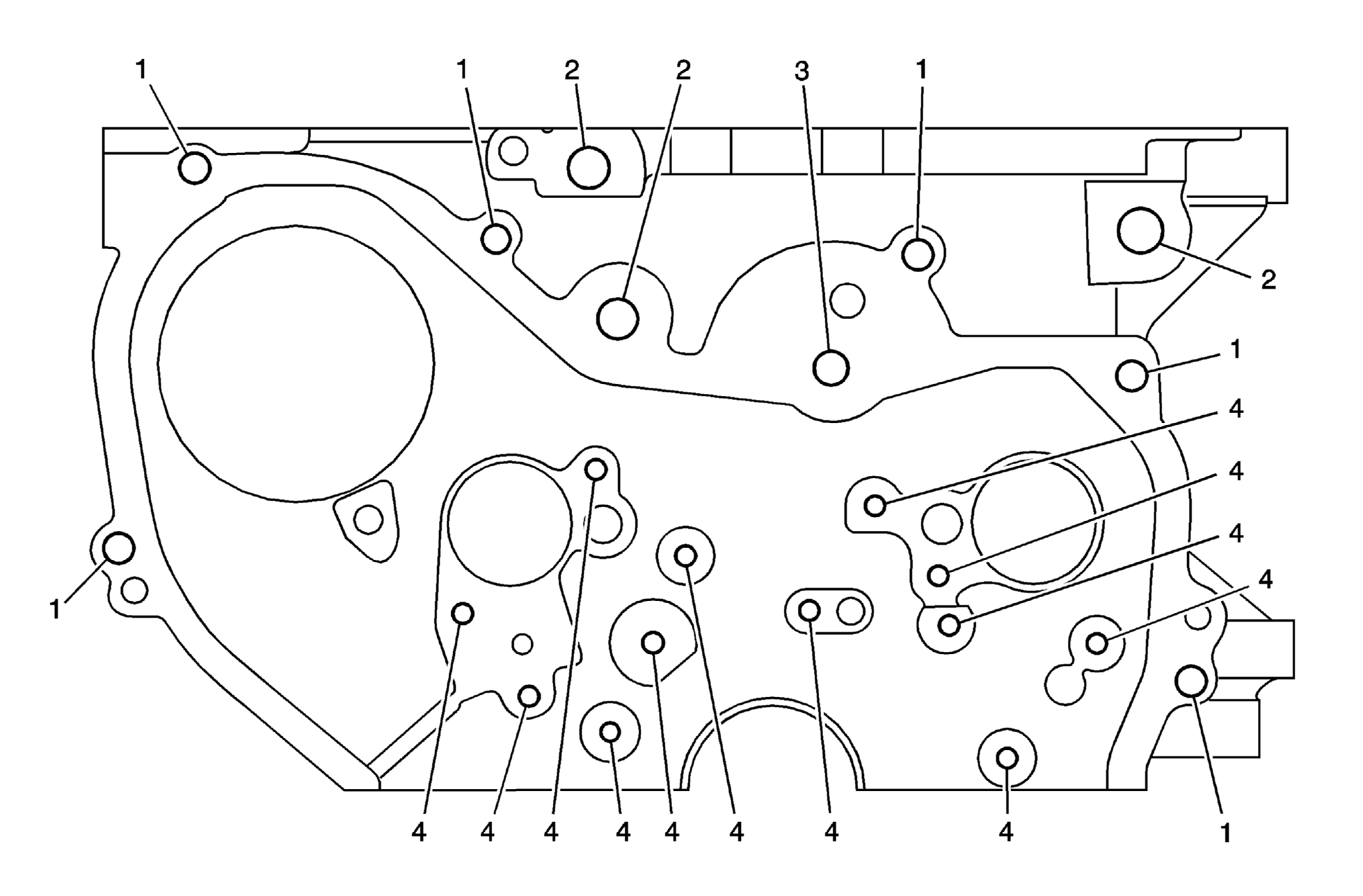

Engine Block - Front View
Engine Block - Front View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| J 42385-850 | MM | (IN) | MM | (IN) | ||||||
| 1 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 23.5 | 0.93 | 18.5 | 0.73 |
| 2 | M12 x 1.75 | 855 | 856 | 857 | 858 | 859 | 33.5 | 1.32 | 26.5 | 1.04 |
| 3 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 24.5 | 0.96 | 19.5 | 0.77 |
| 4 | M6 x 1 | 205 | 201 | 202 | 203 | 204 | 20 | 0.787 | 16 | 0.63 |
