2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

Installation Procedure

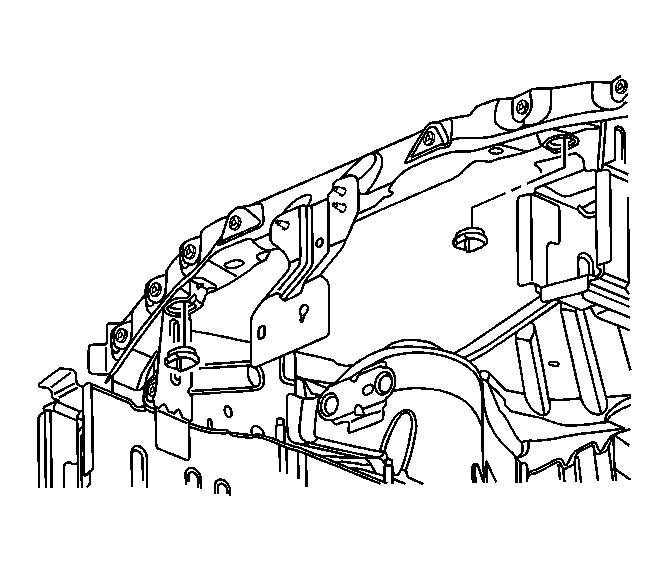

    Fig 1: View Of Upper Radiator Mounts
    GM873610Courtesy of GENERAL MOTORS CORP.
  1. Verify that the upper radiator mounts are installed in the vehicle.

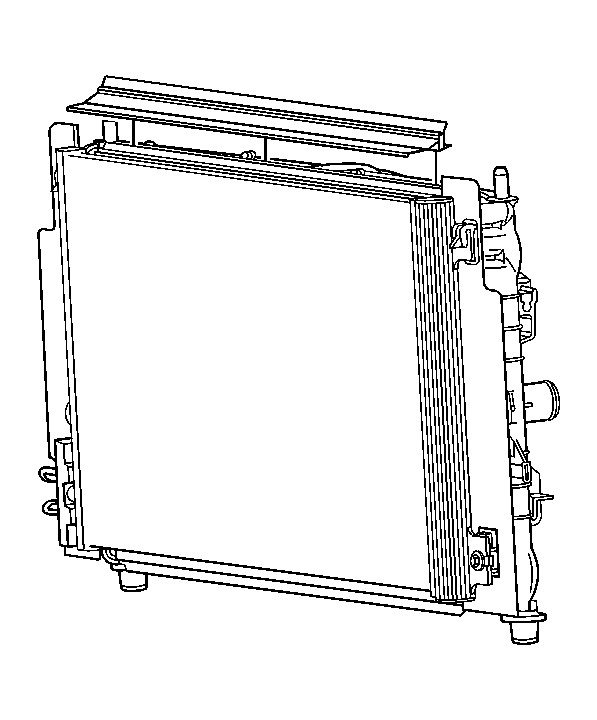

    2. Fig 2: View Of Upper Radiator Air Baffle
    GM877652Courtesy of GENERAL MOTORS CORP.
  2. Install the upper radiator air baffle.

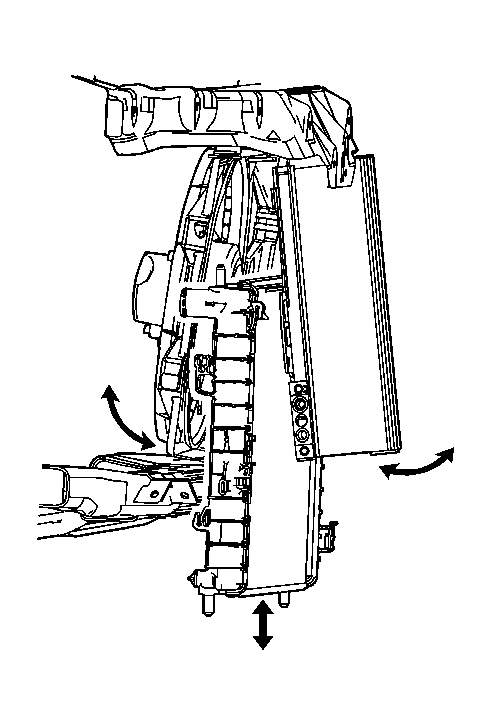

    3. Fig 3: Tilting Condenser
    GM877649Courtesy of GENERAL MOTORS CORP.
  3. Tilt the condenser forward in the vehicle. Tilt the cooling fan assembly rearward in the vehicle. Install the radiator assembly into the vehicle.

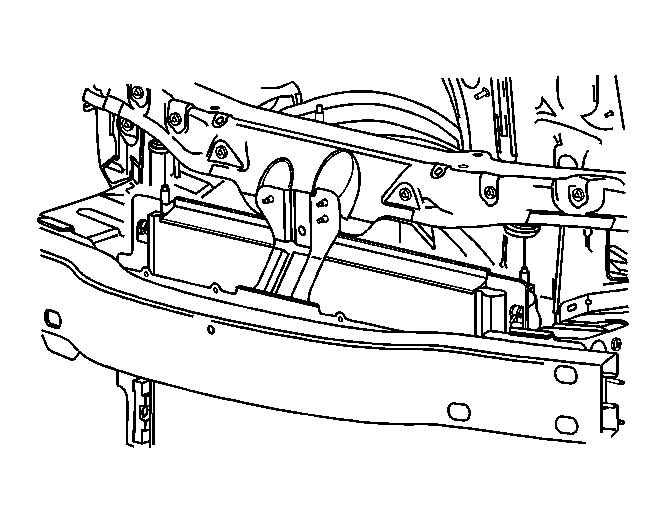

    4. Fig 4: Aligning Upper Radiator Mount Pins With Upper Radiator Mounts
    GM873609Courtesy of GENERAL MOTORS CORP.
  4. Verify that the upper radiator mount pins align with the upper radiator mounts.

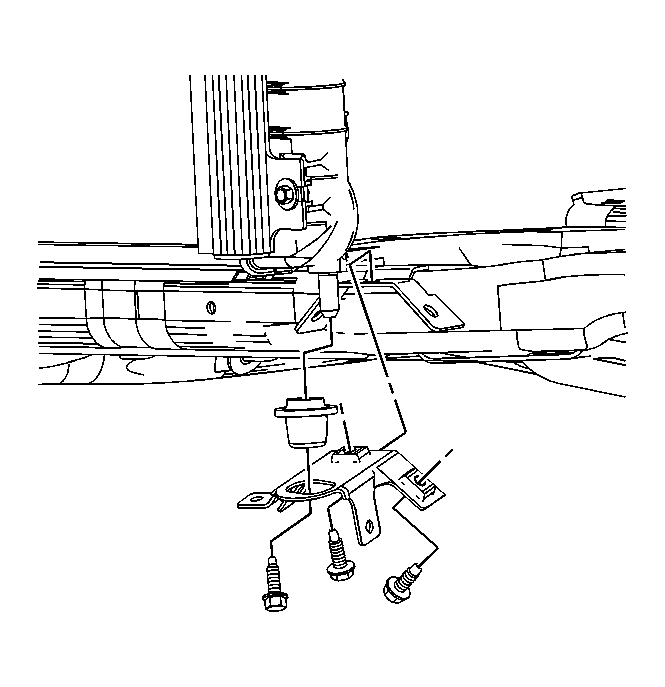

    5. Fig 5: View Of Lower Radiator Mount, Brackets And Bolts
    GM877644Courtesy of GENERAL MOTORS CORP.
