2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Disconnect negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
- Remove the supercharger. Refer to Supercharger Replacement .

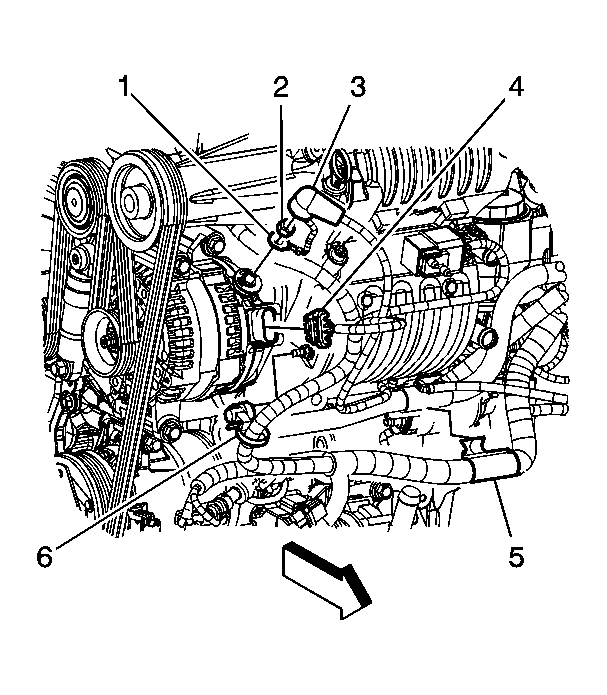

- Reposition the starter solenoid wire boot (3).
- Remove the generator harness nut (2).
- Remove the starter solenoid wire terminal (1) from the generator.
- Disconnect the engine harness electrical connector (4) from the generator.
- Remove the generator bolts.
- Remove the generator.
