2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

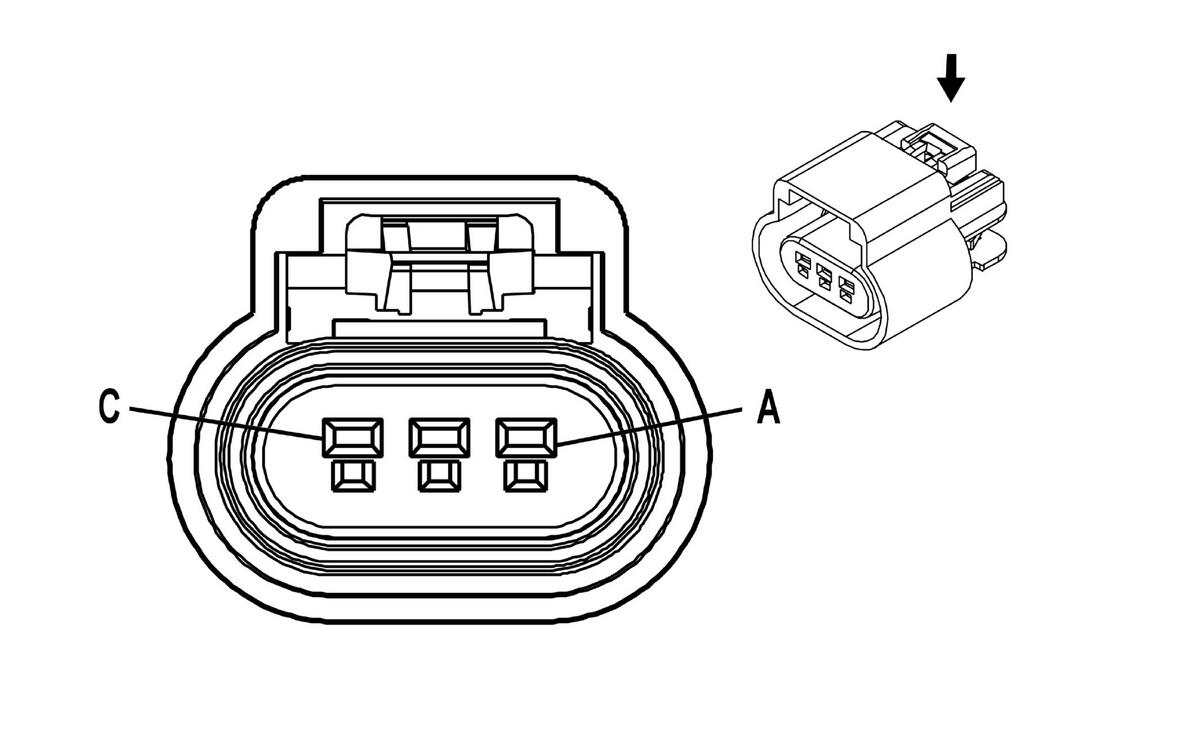

Camshaft Position (CMP) Sensor Connector End Views
Camshaft Position (CMP) Sensor - Exhaust
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | YE/BK | 5297 | 5-Volt Reference |
| B | GY | 5296 | Low Reference |
| C | D-GN | 5273 | CMP Sensor Signal |
Camshaft Position (CMP) Sensor - Intake
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | D-BU | 5300 | 5-Volt Reference |
| B | GTN | 5301 | Low Reference |
| C | OG | 5275 | CMP Sensor Signal |
