2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

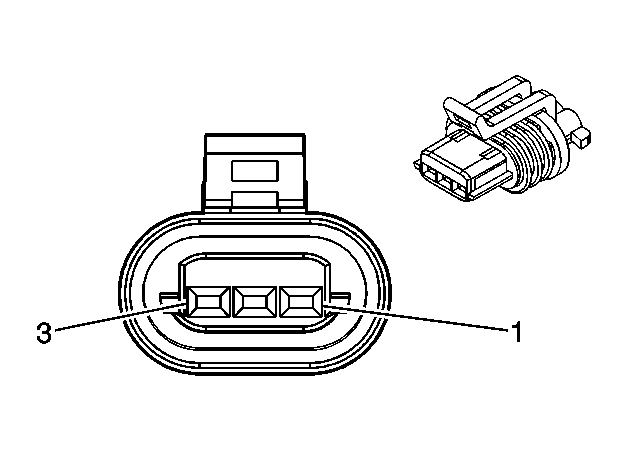

Camshaft Position (CMP) Sensor Connector End View

Camshaft Position (CMP) Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 15336029 Service: 88987923 3-Way F GT 150 Series Sealed (BK)
Pin	Wire Color	Circuit No.	Function
1	GY	596	5-Volt Reference
2	BN/WH	633	Camshaft Position Sensor Signal
3	PK/BK	632	Camshaft Position Sensor Low Reference
