2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

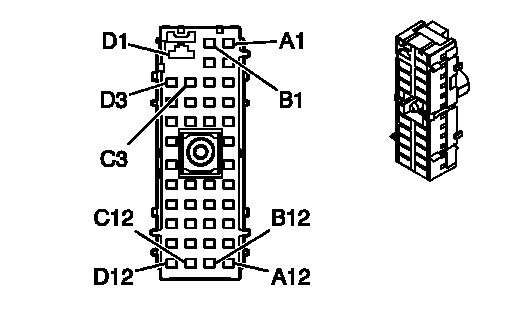

Body Control Module (BCM) C3
Body Control Module (BCM) C3
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1 | TN | 294 | Door Lock Actuator Unlock Control (AU3) |
| A2 | TN | 294 | Door Lock Actuator Unlock Control (AU3) |
| TN | 294 | Door Lock Actuator Unlock Control (AU3) (Sedan) | |
| A3 | D-BU/WH | 149 | Courtesy Lamp Supply Voltage |
| A4 | GY | 295 | Door Lock Actuator Lock Control (AU3) (Driver) |
| GY | 295 | Door Lock Actuator Lock Control (AU3) (Passenger) | |
| A5 | GY | 295 | Door Lock Actuator Lock Control (AU3) |
| GY | 295 | Door Lock Actuator Lock Control (AU3) (Sedan) | |
| A6 | - | - | Not Used |
| A7 | BN | 9 | Park Lamp Supply Voltage |
| A8 | PK | 339 | Run/Crank Ignition 1 Voltage (UQ3) |
| A9 | YE | 18 | Left Rear Stop/Turn Lamp Supply Voltage |
| A10 | GY | 157 | Interior Lamp Control |
| A11 | - | - | Not Used |
| A12 | D-GN | 19 | Right Rear Stop/Turn Lamp Supply Voltage |
| B1 | TN | 694 | Driver Door Lock Actuator Unlock Control |
| B2 | - | - | Not Used |
| B3 | RD/WH | 1240 | Battery Positive Voltage |
| RD/WH | 1240 | Battery Positive Voltage | |
| B4 | - | - | Not Used |
| B5 | BN | 4 | Accessory Voltage (LSJ) |
| B5 | BN | 4 | Accessory Voltage (L61) |
| BN | 4 | Accessory Voltage (L61) | |
| B6-B7 | - | - | Not Available |
| B8-B11 | - | - | Not Used |
| B12 | GY | 8 | Instrument Panel Lamp Supply Voltage (1) (LSJ) and (J41) |
| B12 | GY | 8 | Instrument Panel Lamp Supply Voltage (1) (L61) |
| GY | 8 | Instrument Panel Lamp Supply Voltage (1) (L61) | |
| C1-C2 | - | - | Not Available |
| C3 | D-GN | 1301 | Retained Accessory Power Fuse Supply Voltage |
| C4 | - | - | Not Used |
| C5 | D-GN | 801 | Retained Accessory Power Fuse Supply Voltage |
| C6-C7 | - | - | Not Available |
| C8-C11 | - | - | Not Used |
| C12 | OG | 228 | Windshield Washer Pump Control |
| D1 | RD/BK | 142 | Battery Positive Voltage |
| D2 | - | - | Not Available |
| D3 | - | - | Not Used |
| D4 | RD/WH | 840 | Battery Positive Voltage |
| D5 | D-GN | 801 | Retained Accessory Power Fuse Supply Voltage |
| D6 | PK | 739 | Run/Crank Ignition 1 Voltage |
| D7 | PK | 1339 | Run/Crank Ignition 1 Voltage |
| D8-D9 | - | - | Not Used |
| D10 | RD/BK | 442 | Battery Positive Voltage |
| D11 | - | - | Not Used |
| D12 | RD/WH | 242 | Battery Positive Voltage |
