2006 Chevrolet Cobalt SS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

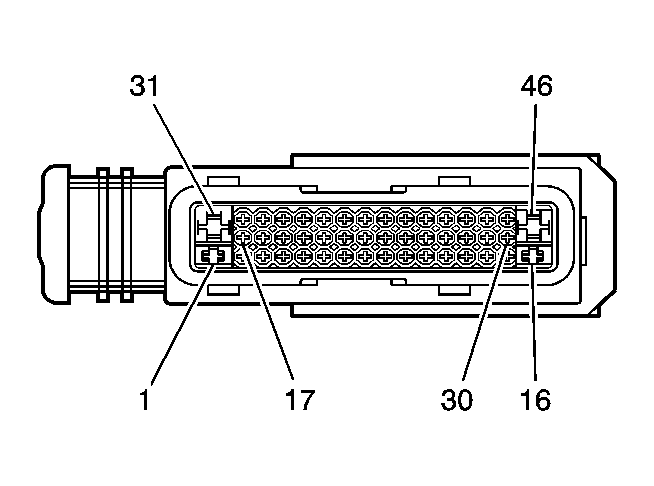

Electronic Brake Control Module (EBCM) Connector End View (JM4/JL9)
Electronic Brake Control Module (EBCM) (JM4/JL9)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK | 350 | Ground |
| 2-11 | - | - | Not Used |
| 12 | OG | 885 | Wheel Speed Sensor Low Reference Left Rear |
| 13 | TN | 884 | Wheel Speed Sensor Signal Left Rear |
| 14-15 | - | - | Not Used |
| 16 | PK | 1439 | Run/Crank Ignition 1 Voltage |
| 17-20 | - | - | Not Used |
| 21 | TN/BK | 2500 | High Speed GMLAN Serial Data (+) (1) |
| 22 | TN | 2501 | High Speed GMLAN Serial Data (-) (1) |
| 23 | - | - | Not Used |
| 24 | TN | 833 | Wheel Speed Sensor Low Reference Right Front |
| 25-26 | - | - | Not Used |
| 27 | L-BU | 830 | Wheel Speed Sensor Signal Left Front |
| 28 | YE | 873 | Left Front Wheel Speed Sensor Low Reference |
| 29-30 | - | - | Not Used |
| 31 | BK | 350 | Ground |
| 32-35 | - | - | Not Used |
| 36 | TN/BK | 2500 | High Speed GMLAN Serial Data (+) (1) |
| 37 | TN | 2501 | High Speed GMLAN Serial Data (-) (1) |
| 38 | - | - | Not Used |
| 39 | D-GN | 872 | Wheel Speed Sensor Signal Right Front |
| 40 | - | - | Not Used |
| 41 | L-BU | 20 | Stop Lamp Supply Voltage |
| 42 | BN | 882 | Wheel Speed Sensor Signal Right Rear |
| 43 | WH | 883 | Wheel Speed Sensor Low Reference Right Rear |
| 44-45 | - | - | Not Used |
| 46 | RD/BK | 542 | Battery Positive Voltage |
