2006 Chevrolet Chevy Express G3500, Van Cargo, 4.8 VFACTORY OEM SERVICE PROCEDURE

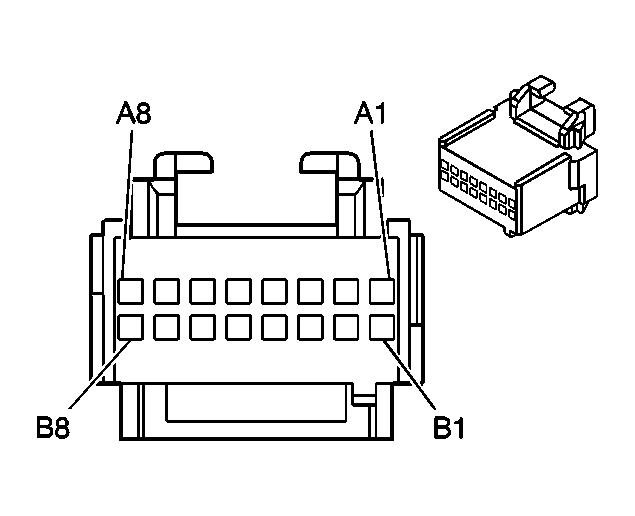

Body Control Module (BCM) - C6 (PRP)
Body Control Module (BCM) - C6 (PRP)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1 | D-BU/WH | 149 | Dome Fluorescent Work Lamp Signal (UF2) |
| A2-A6 | - | - | Not Used |
| A7 | L-BU | 1344 | Access Panel Right Side Relay Control |
| A8 | GY/BK | 690 | Dome Fluorescent Work Lamp Relay Control (UF2) |
| B1-B6 | - | - | Not Used |
| B7 | L-GN | 1391 | Access Panel Left Side Rear Relay Control |
| B8 | L-BU | 244 | Access Panel Left Side Front Relay Control |
