2006 Chevrolet Chevy Express G3500, Van Cargo, 4.8 VFACTORY OEM SERVICE PROCEDURE

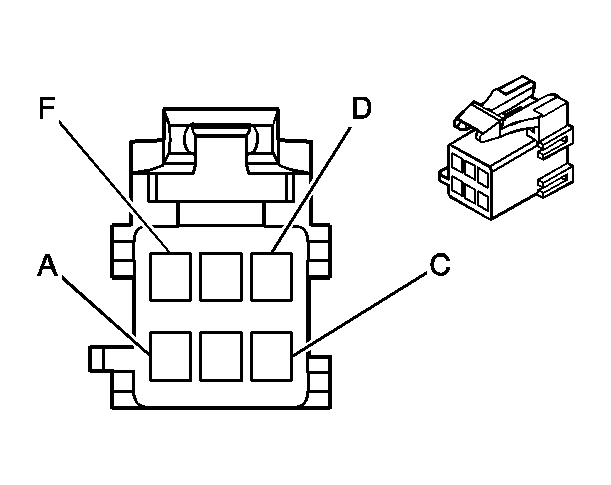

Body Control Module (BCM) - C1
Body Control Module (BCM) - C1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | YE | 1491 | Backlight Lamps Control |
| B | PU/WH | 1382 | LED Dimming Signal |
| C | OG | 4040 | Battery Positive Voltage |
| D | OG | 1732 | Inadvertent Power Supply Voltage |
| E | BN/WH | 230 | Instrument Panel Lamps Dimming Control |
| F | RD/WH | 2240 | Battery Positive Voltage |
