2006 Chevrolet Chevy Express G2500, Van Cargo, 6.6 2FACTORY OEM SERVICE PROCEDURE

Generator Control Module Coolant Outlet Hose Replacement

WARNING: This page is about a different car, the 2009 GMC Sierra and 2009 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

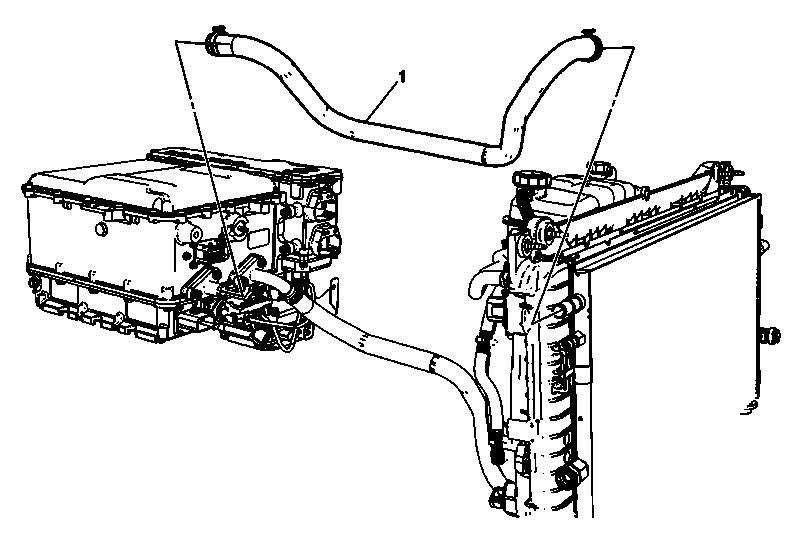

Fig 1: Identifying Generator Control Module Coolant Outlet Hose
GM1968400Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Generator Control Module Cooling System Draining and Filling .
  2. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
  3. Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1 Generator Control Module Coolant Outlet Hose
Procedure:
Using J 38185  reposition the generator control module coolant hose clamps.
Special Tools:
J 38185  Hose Clamp Pliers
