Coolant Temperature Sensor Replacement (Generator Control Module)
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|

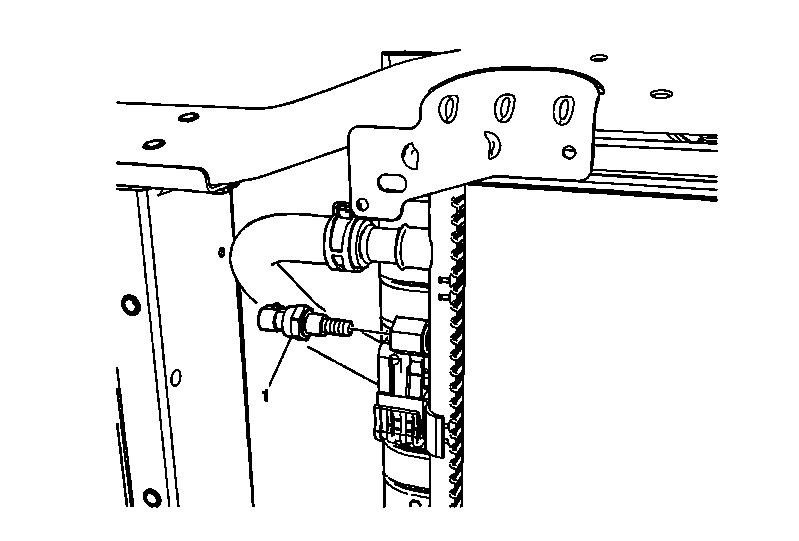

| 1 | Coolant Temperature Sensor
CAUTION:
Refer to Fastener Caution
. Tip: Coolant temperature sensor is located in the generator control module coolant radiator. Tighten: 20 N.m (15 lb ft) |
