2005 Chevrolet Venture LSFACTORY OEM SERVICE PROCEDURE

Automatic Transmission Shift Lock Control Component Views

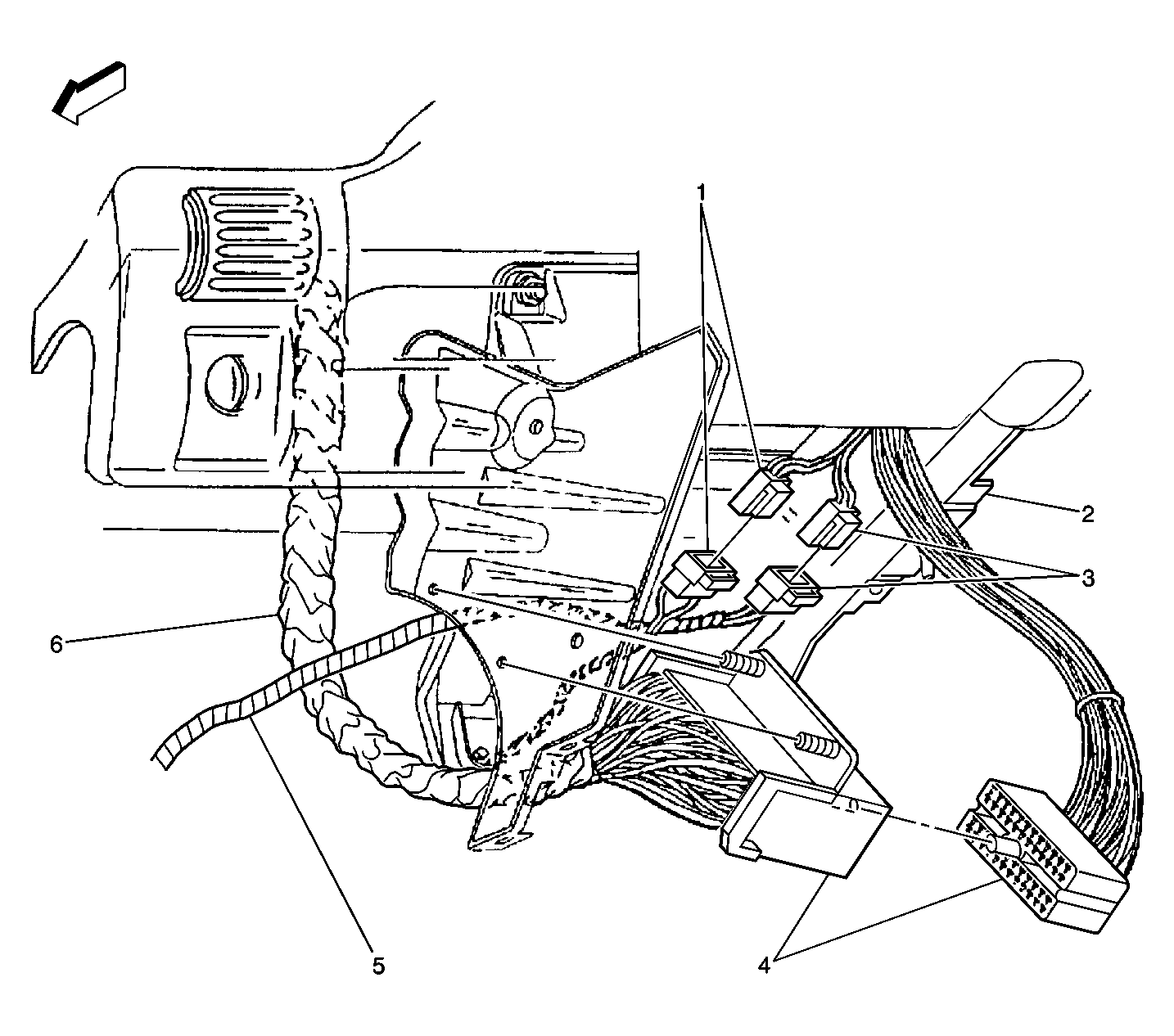

Fig 1: Base of Steering Column Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	In-Line Connector C205, I/P Harness to Steering Column Harness
2	Steering Column
3	In-Line Connector C215 (Yellow), I/P Harness to Inflatable Restraint Steering Wheel Module
4	In-Line Connector C201, I/P Harness to Steering Column Harness
5	SIR Harness
6	I/P Harness
