Installation Procedure

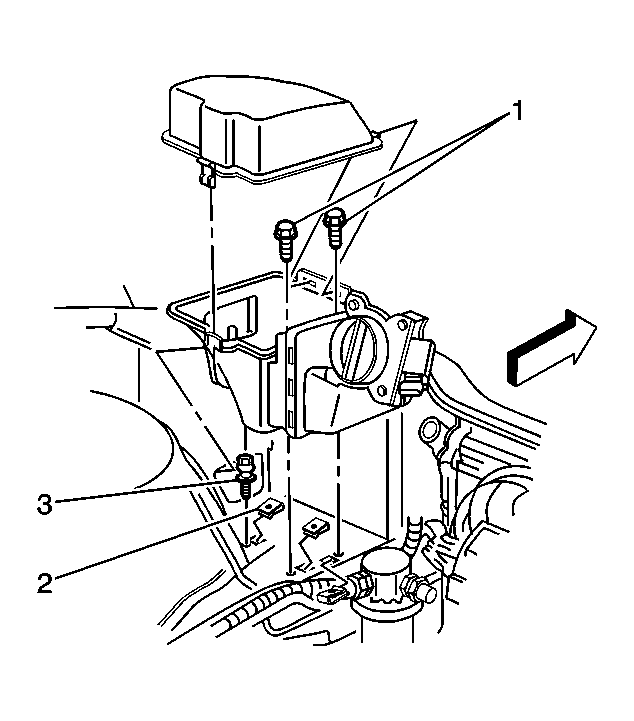

- Position the air cleaner housing on the stud (3).
- Install the 2 bolts (1) through the housing.
Tighten: Tighten the air cleaner housing bolts to 10 N.m (89 lb in).

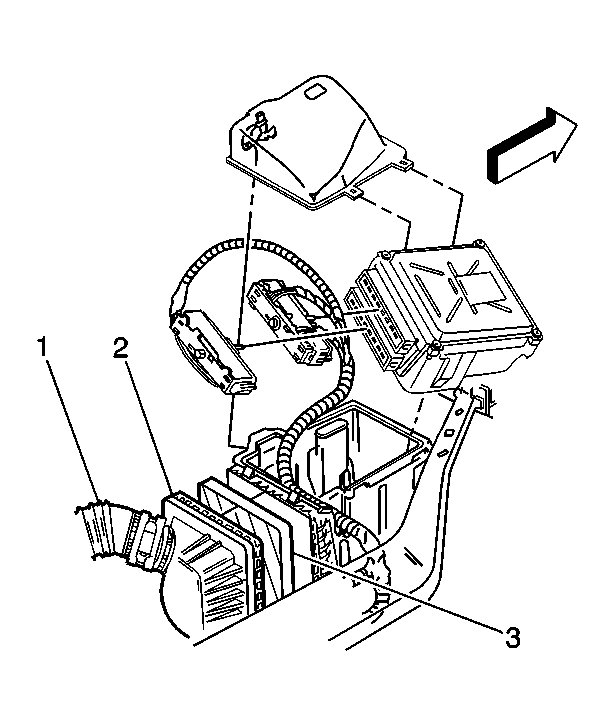

- Carefully install the PCM into the housing.
- Install the upper cover and snap in to place.
- Install the air cleaner element (3) and air cleaner cover (2) and snap them in place.
- Install the air inlet duct/MAF sensor assembly (1) and tighten the 2 clamps.
- Connect the MAF sensor electrical connector.
- Position the support brace and install the 3 bolts.
- Install the coolant tank and install the retaining fastener.
