2005 Chevrolet Venture LSFACTORY OEM SERVICE PROCEDURE

Computer/Integrating Systems Component Views

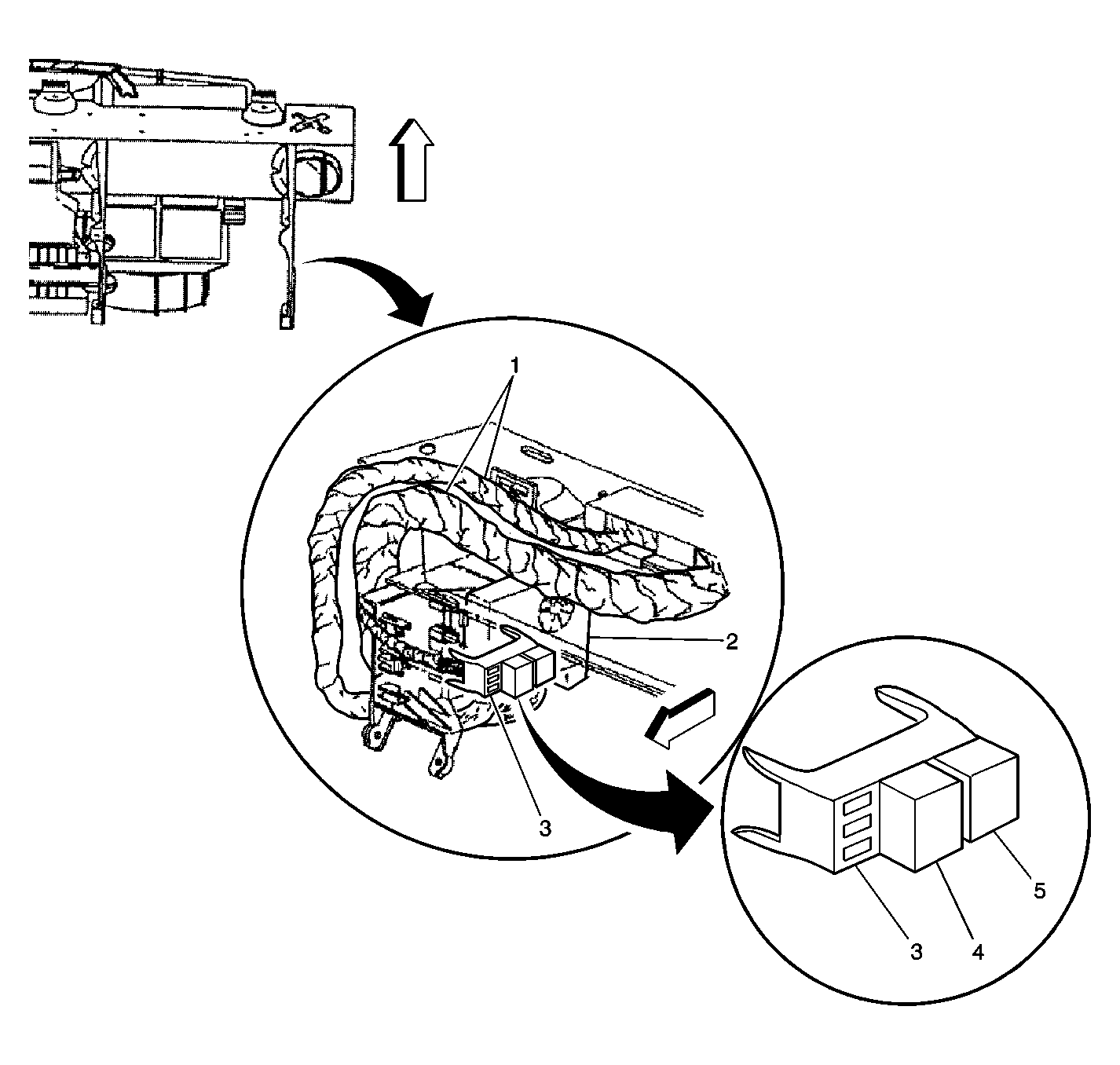

Fig 1: RH Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Body Control Module (BCM)
3	Relay Block
4	Rear Window Defogger Relay
5	Theft Deterrent Relay

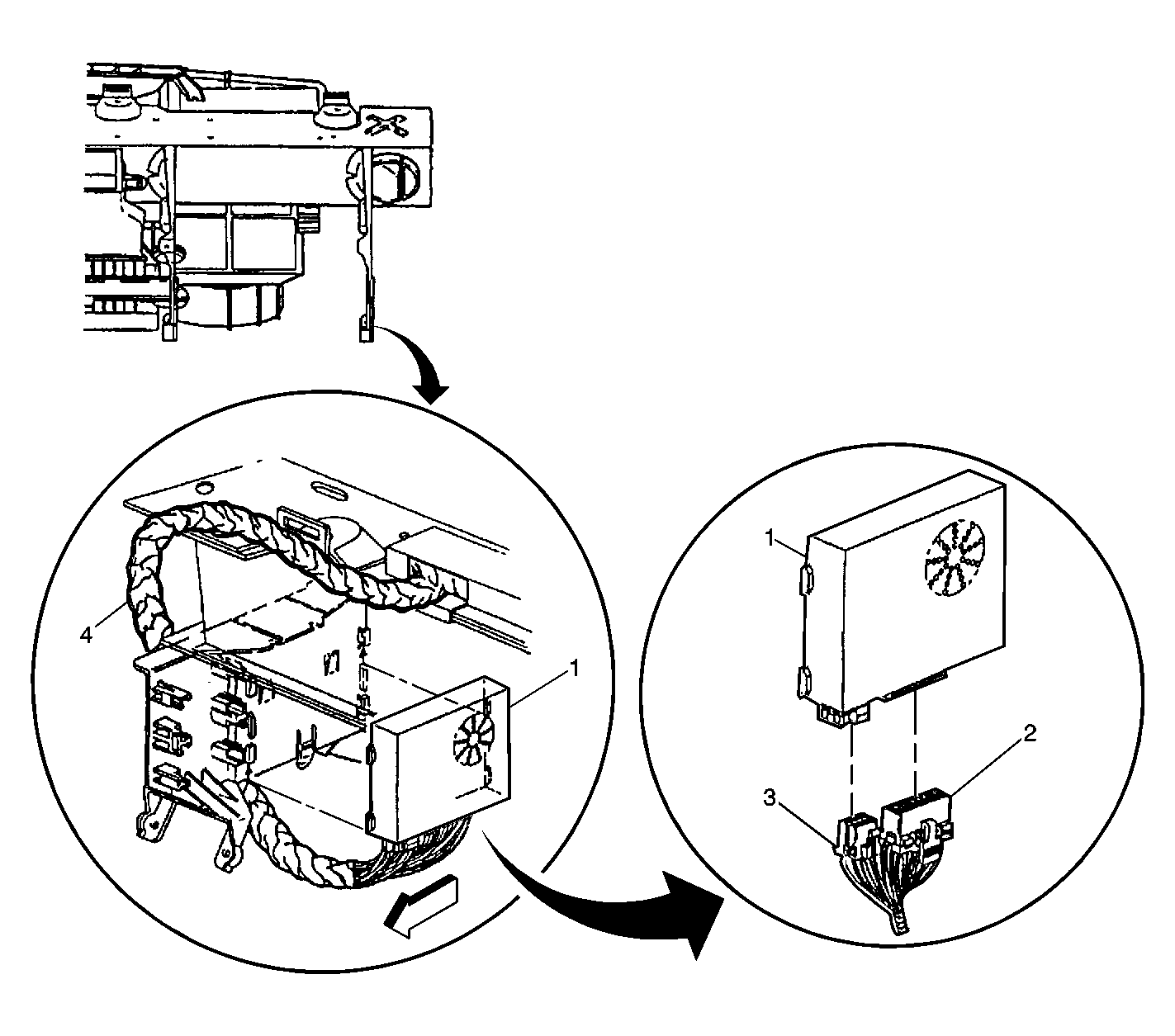

Fig 2: Below RH Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Body Control Module (BCM) Connector C2
3	Body Control Module (BCM) Connector C1
4	I/P Harness

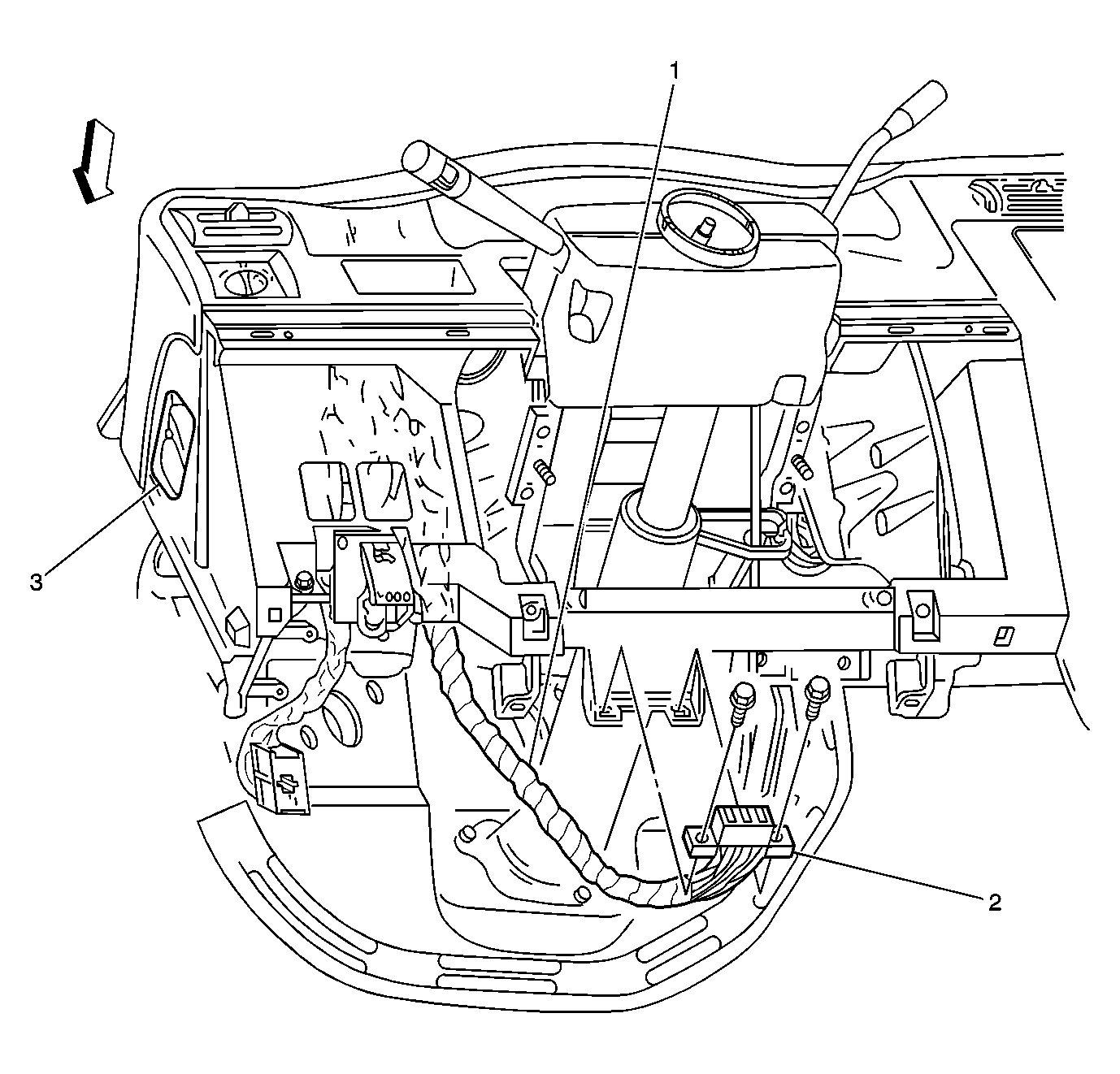

Fig 3: Below Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Data Link Connector (DLC)
3	Splice Pack SP205

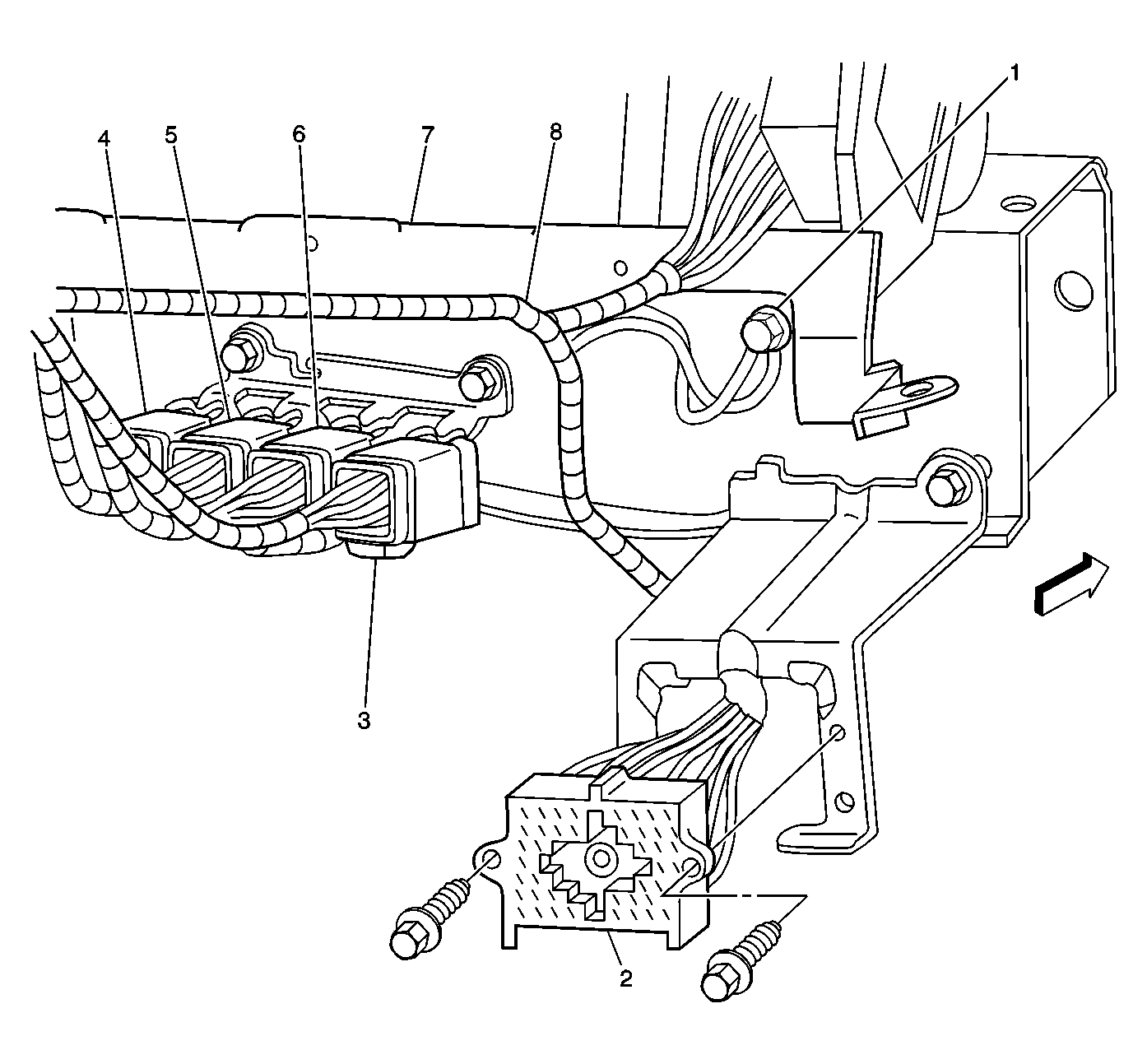

Fig 4: Behind RH Side of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G200
2	C200
3	Door Lock Relay
4	Accessory Time Delay (RAP) Relay
5	Rear Window Defogger Relay
6	Rear Compartment Lid Release Relay
7	Cross Car Beam (Underside)
8	Instrument Panel Cluster (IPC) Wiring
