2005 Chevrolet Tahoe 4WD V8-5.3L VIN TFACTORY OEM SERVICE PROCEDURE
Shield Replacement
Shield Replacement
Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.

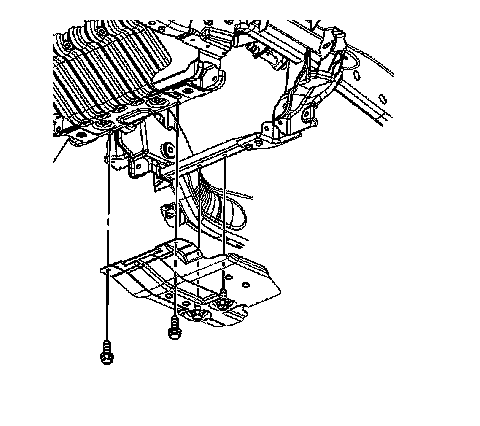

2. Remove the front differential carrier shield bolts.
3. Remove the front differential carrier shield.
Installation Procedure
1. Install the front differential carrier shield.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the front differential carrier shield bolts.
^ Tighten the front differential carrier shield bolts to 20 Nm (15 ft. lbs.).
3. Lower the vehicle.
