2005 Chevrolet Tahoe 4WD V8-5.3L VIN TFACTORY OEM SERVICE PROCEDURE
Thread Repair Specifications
Thread Repair Specifications
Engine Block:

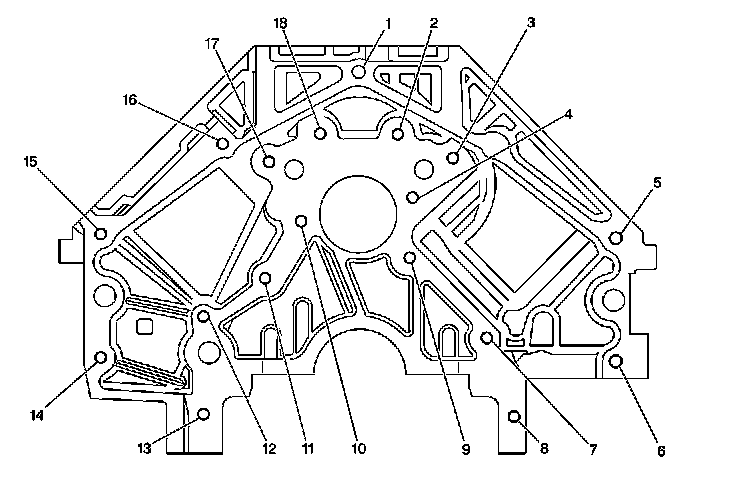

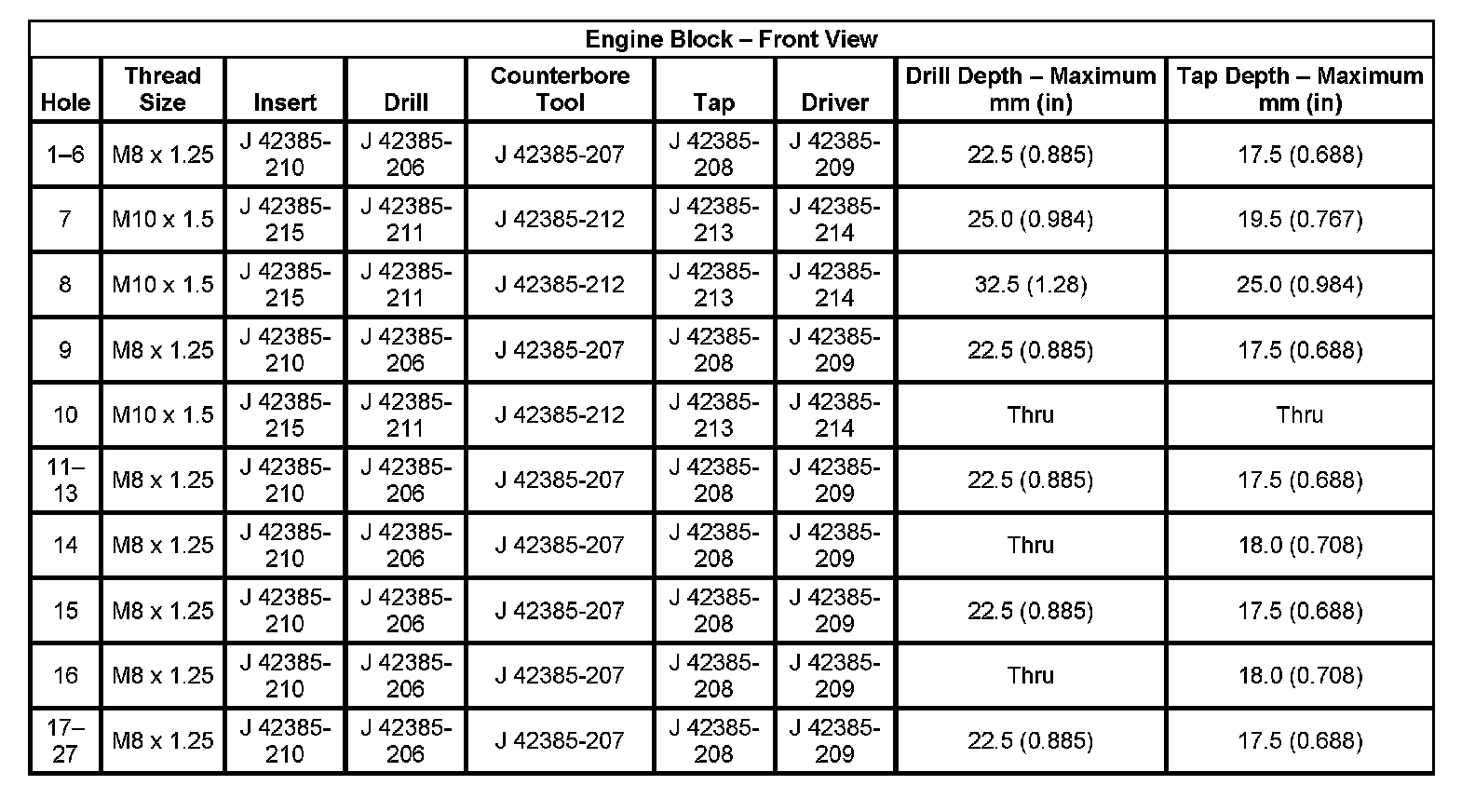

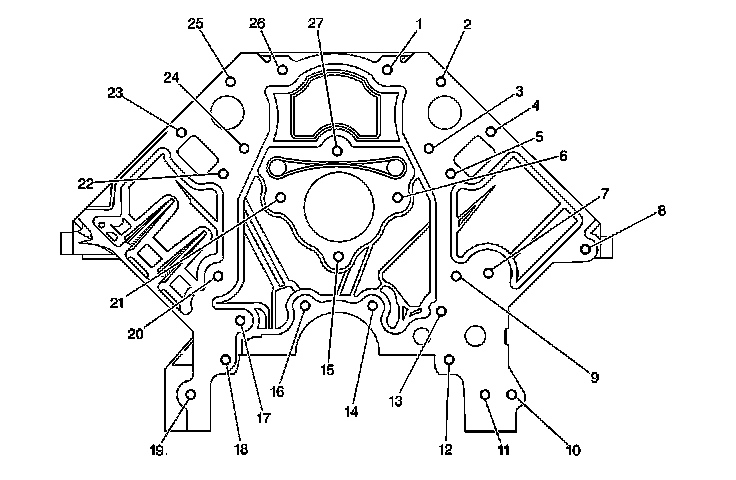

Engine Block - Front View
Engine Block:

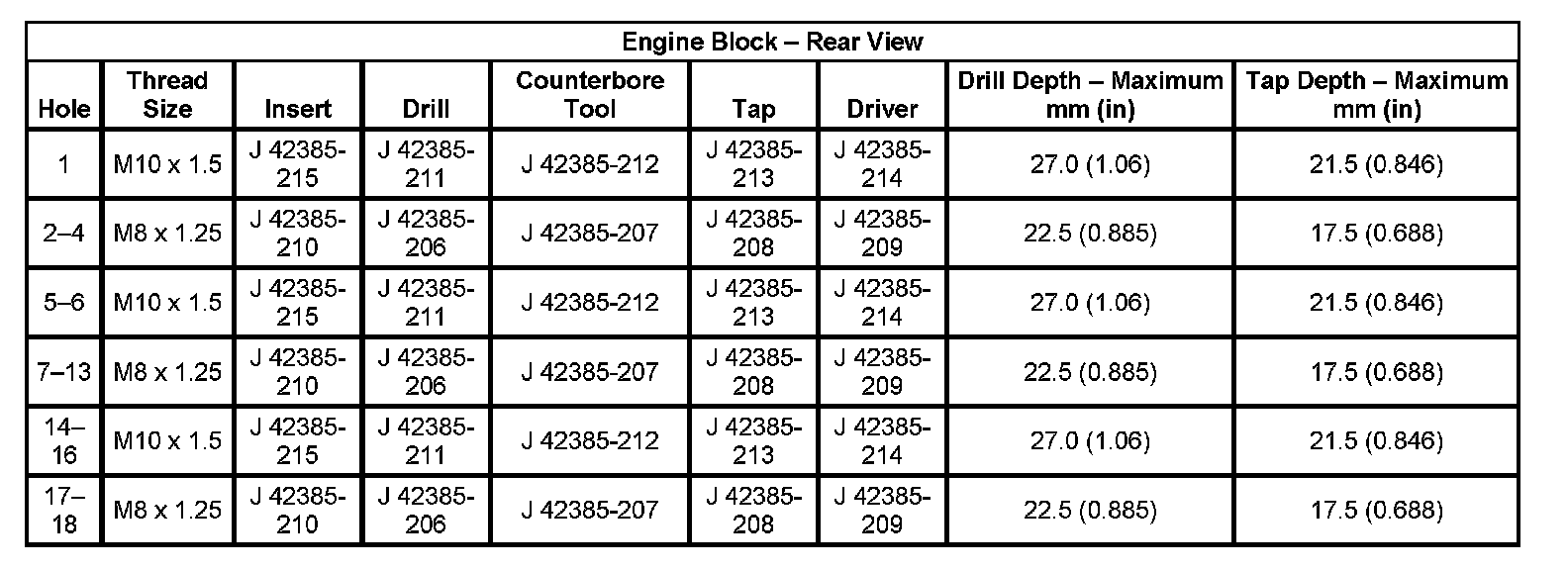

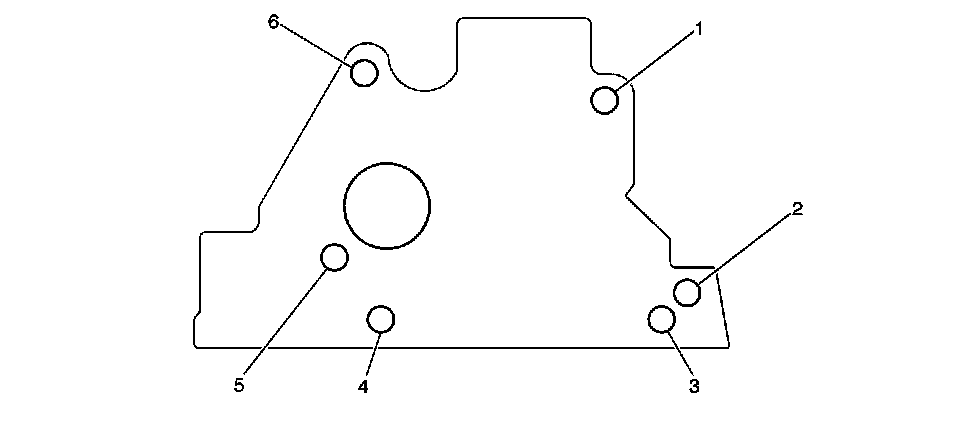

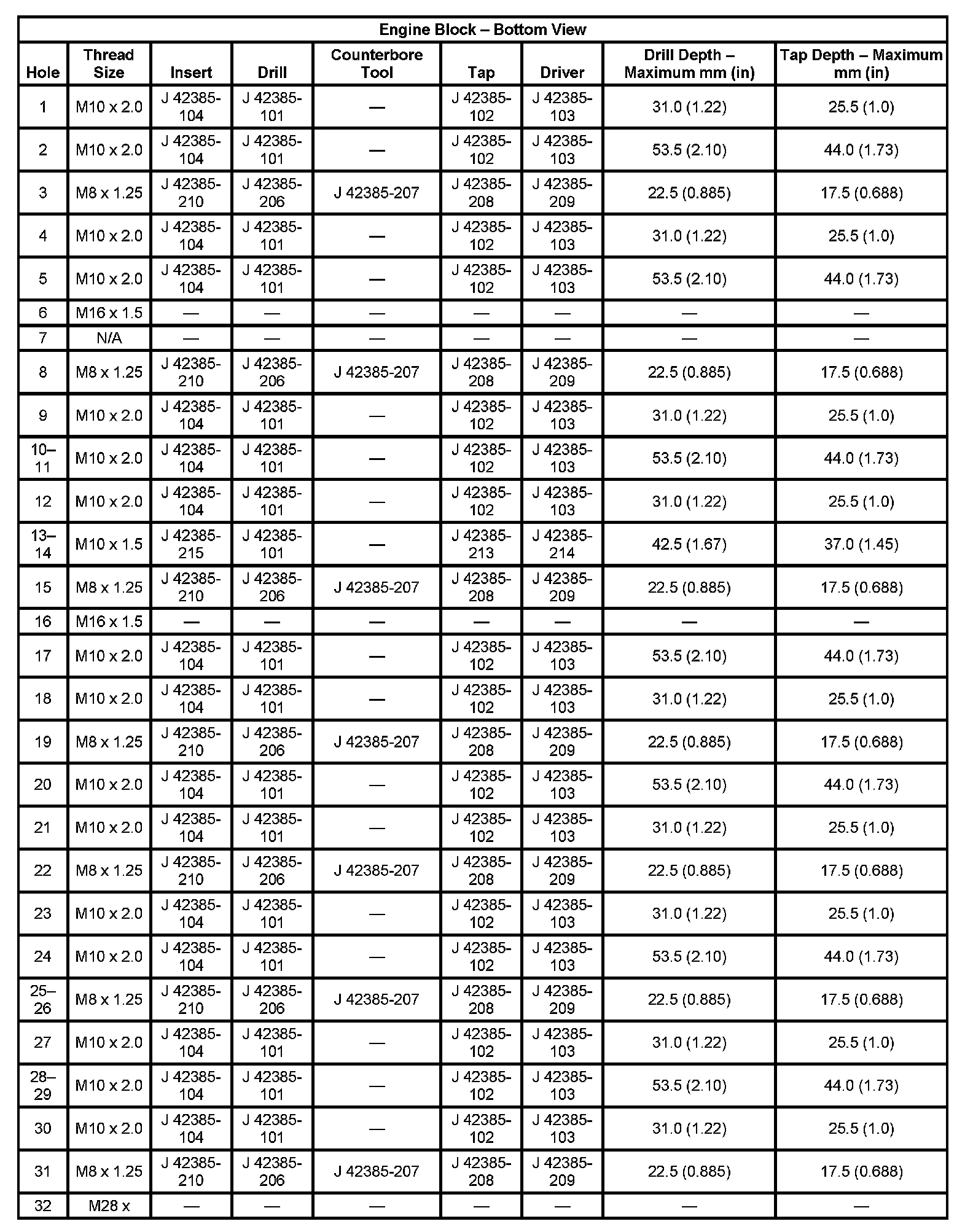

Engine Block - Rear View
Engine Block:

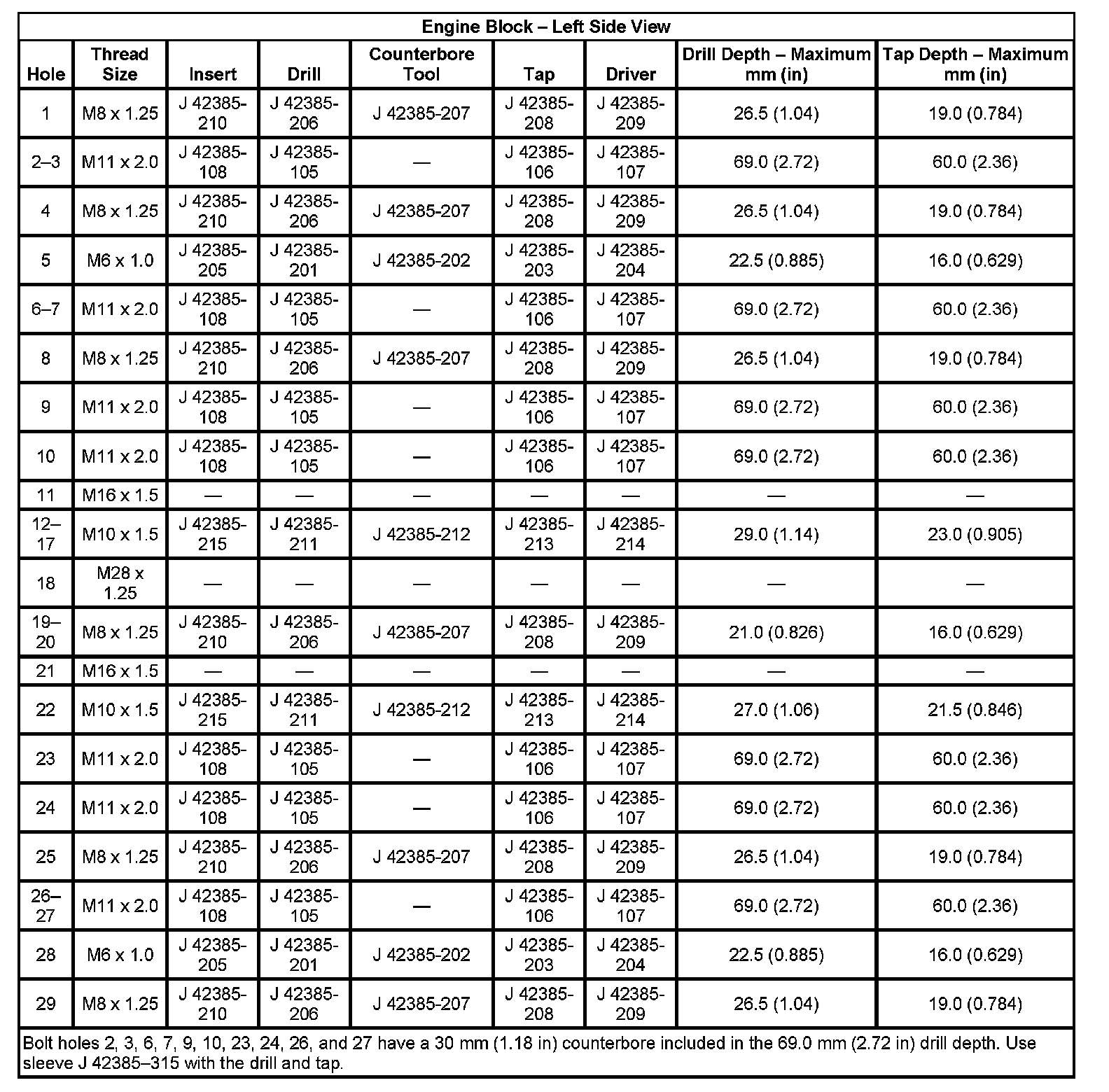

Engine Block - Left Side View
Engine Block:

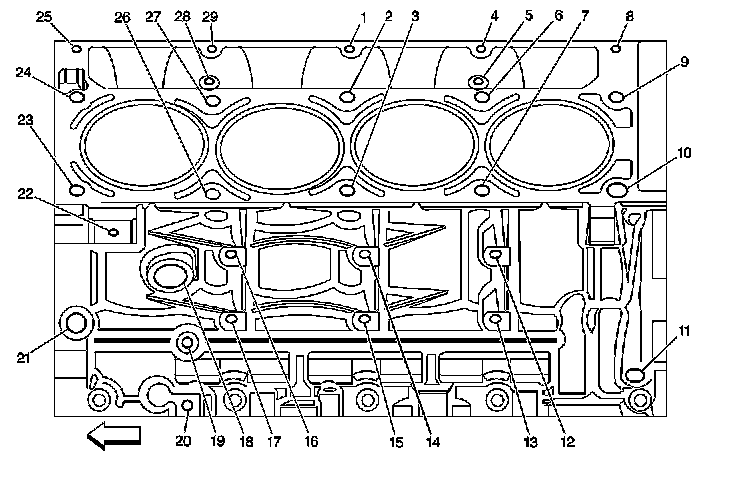

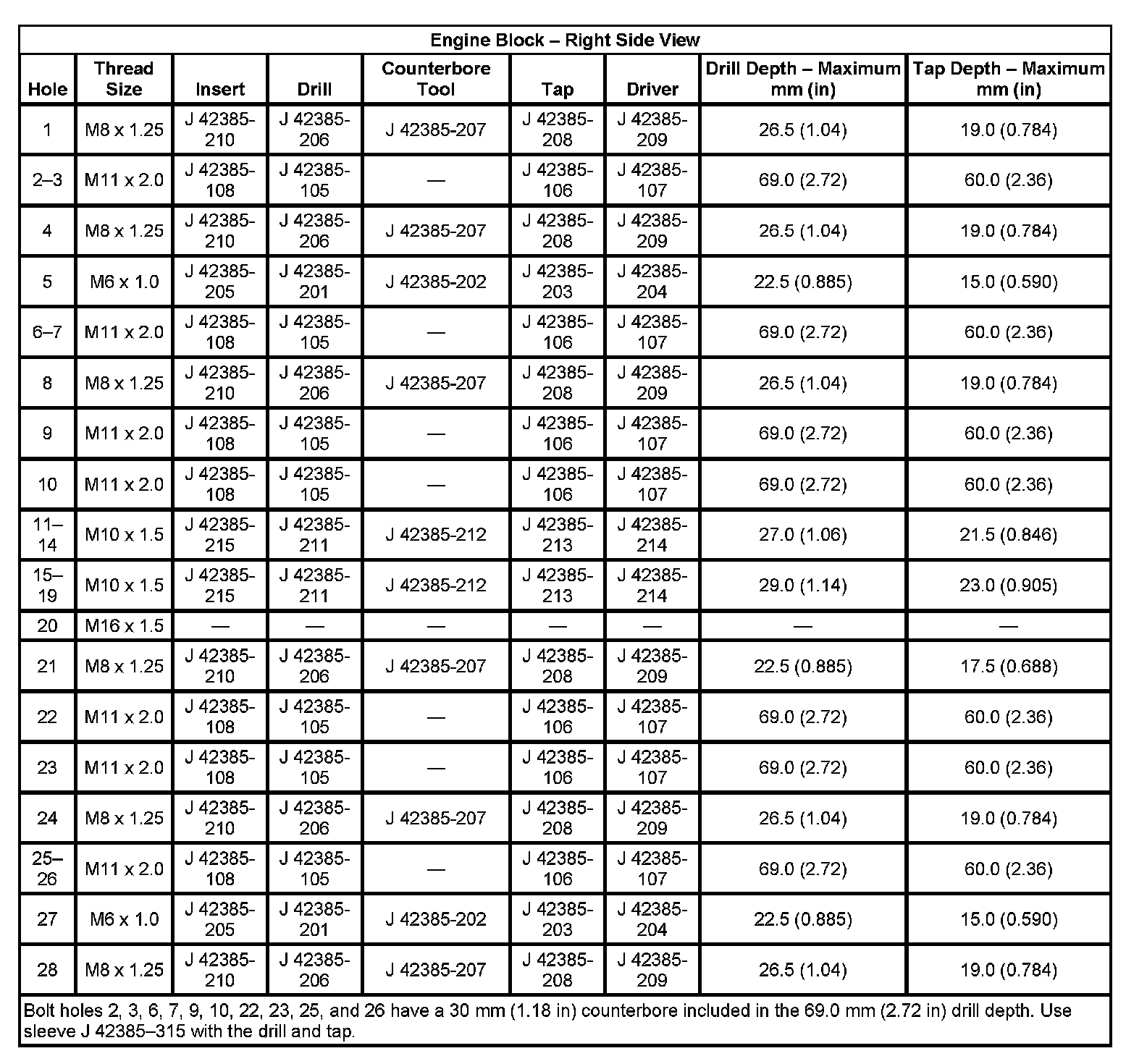

Engine Block - Right Side View
Engine Block:

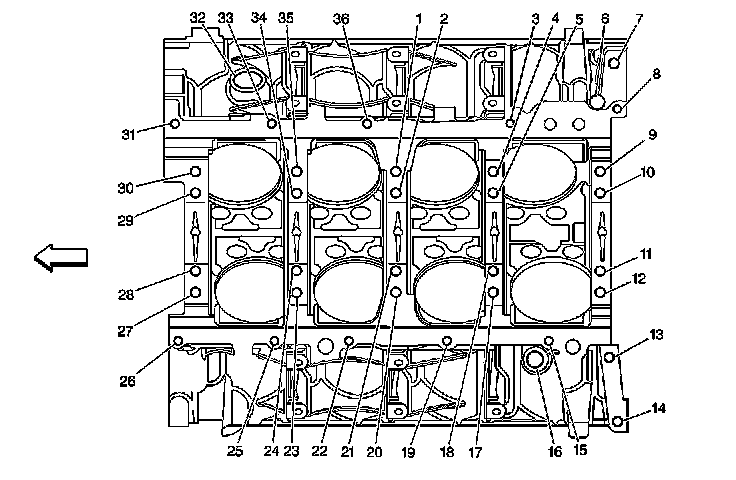

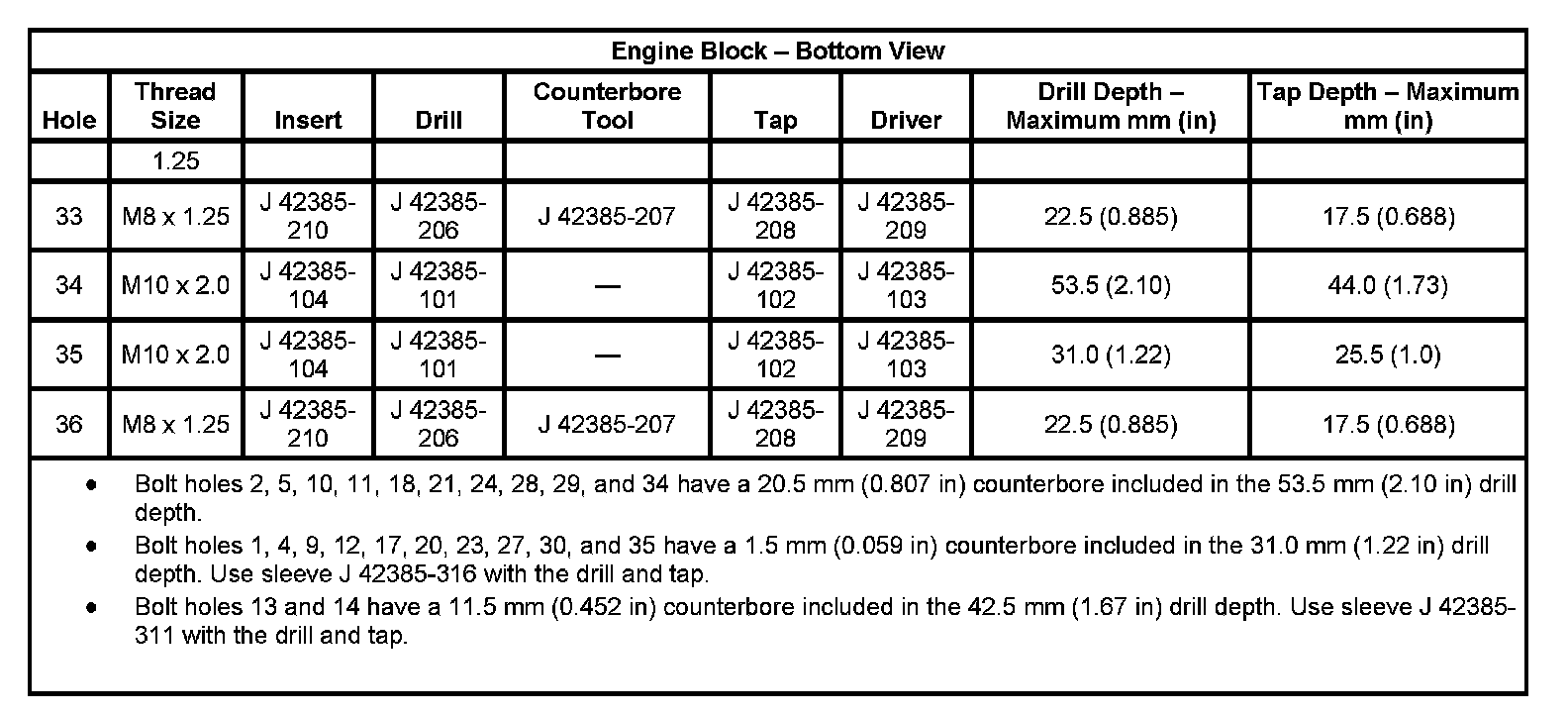

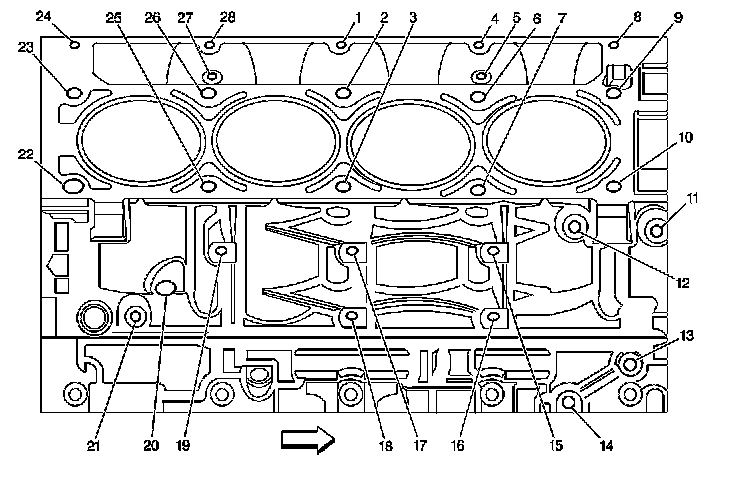

Engine Block - Bottom View
Engine Block:

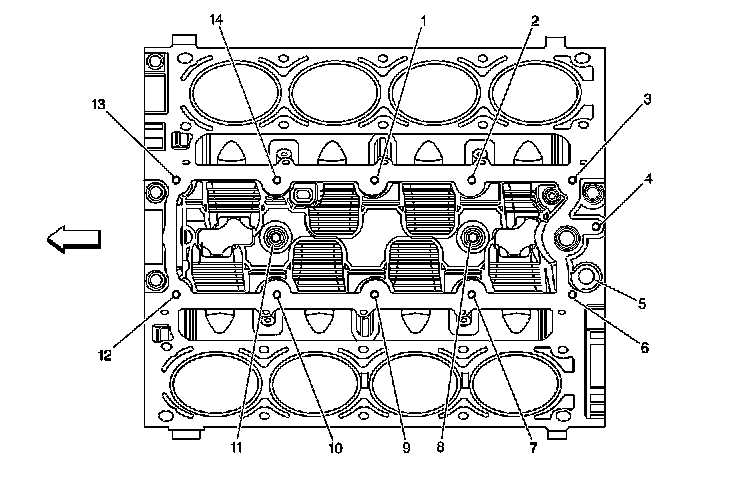

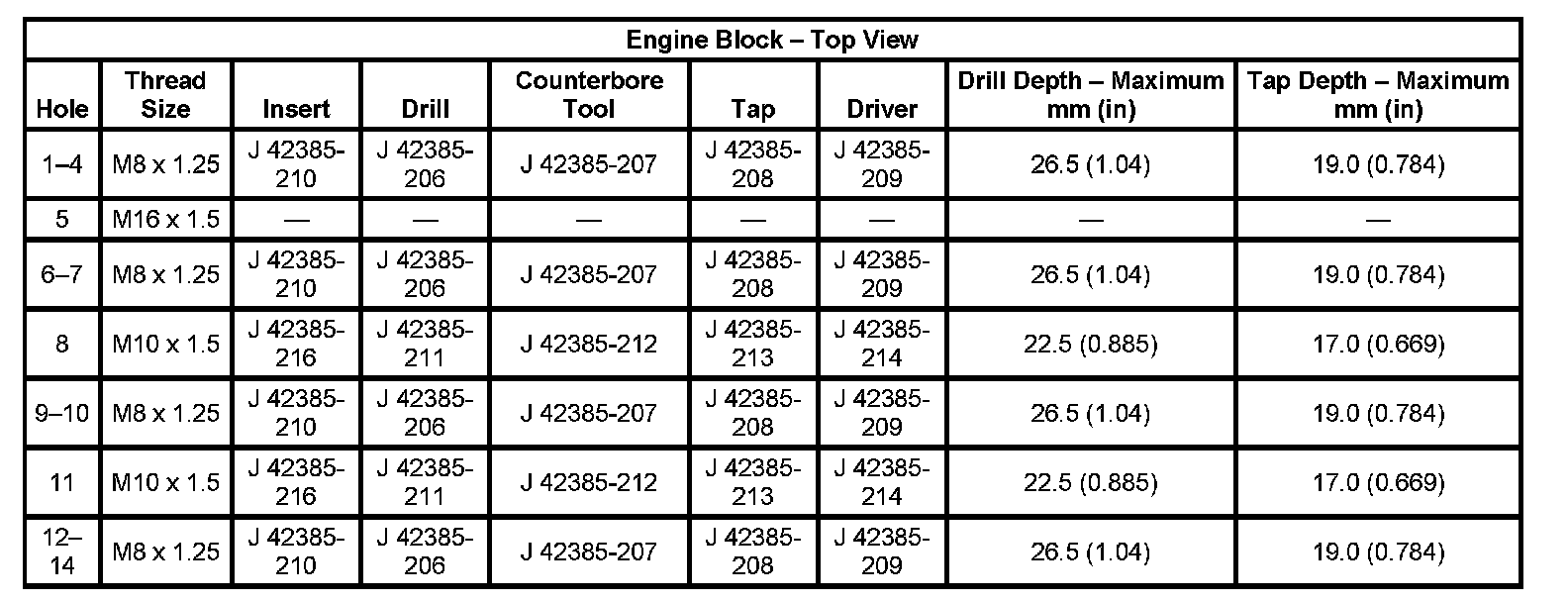

Engine Block - Top View
Cylinder Head:

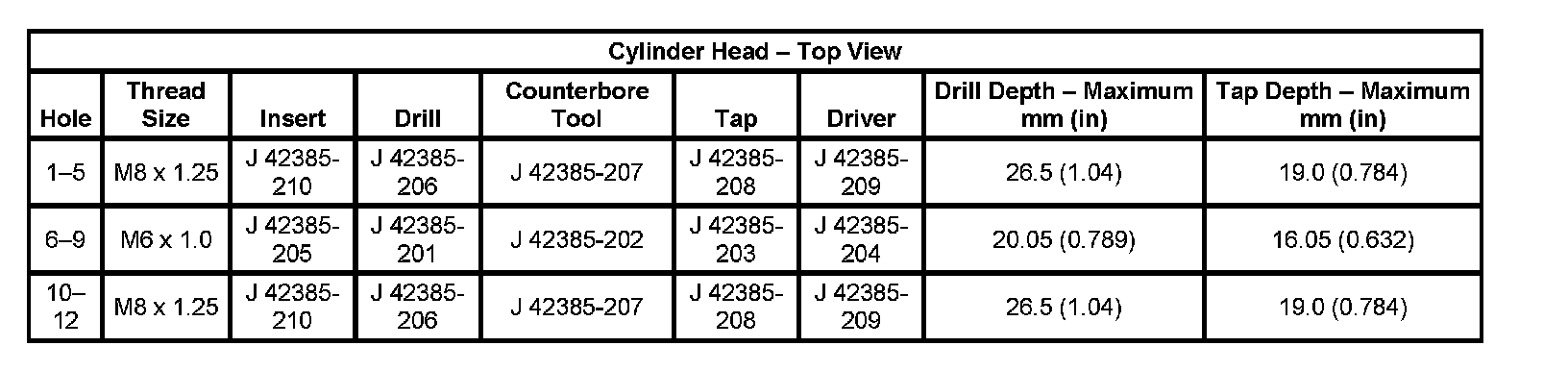

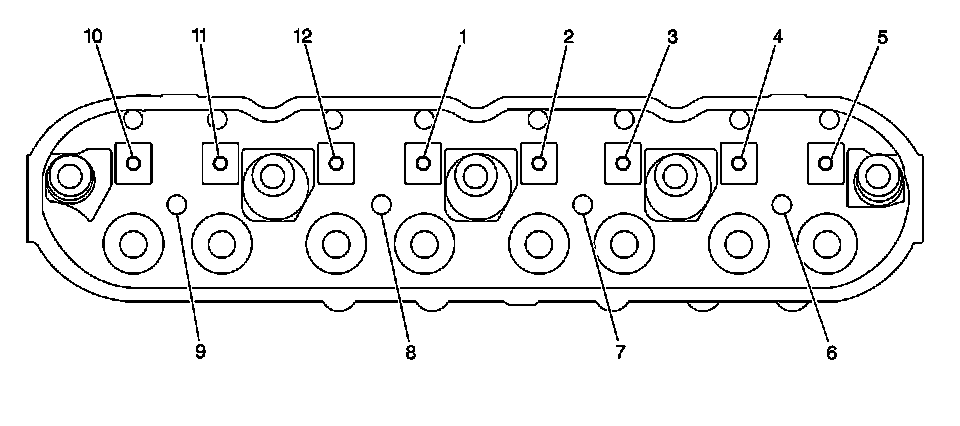

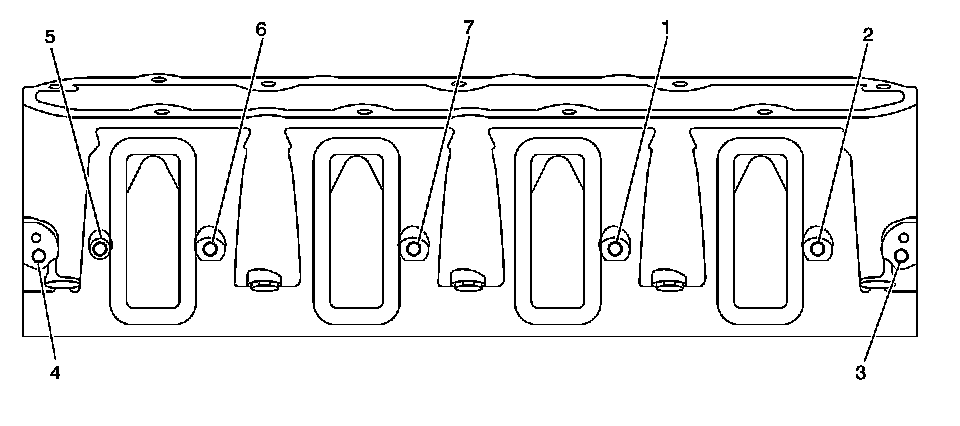

Cylinder Head - Top View
Cylinder Head:

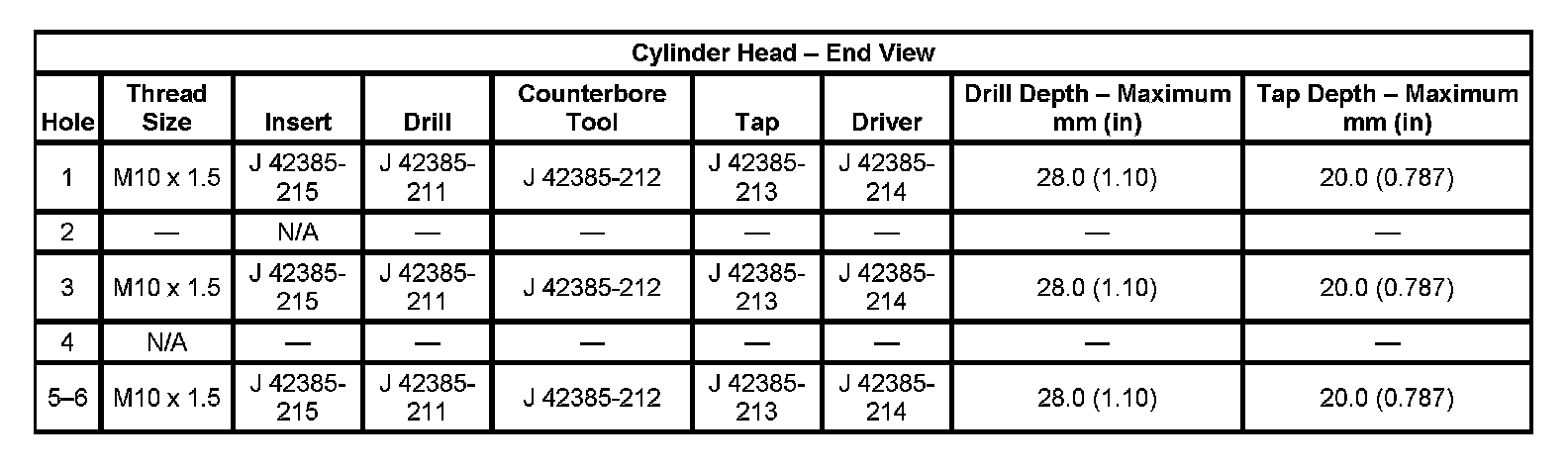

Cylinder Head - End View
Cylinder Head:

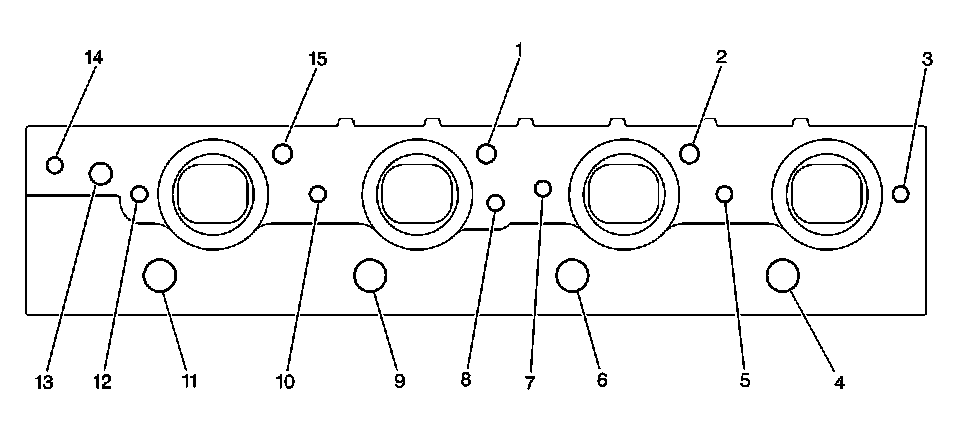

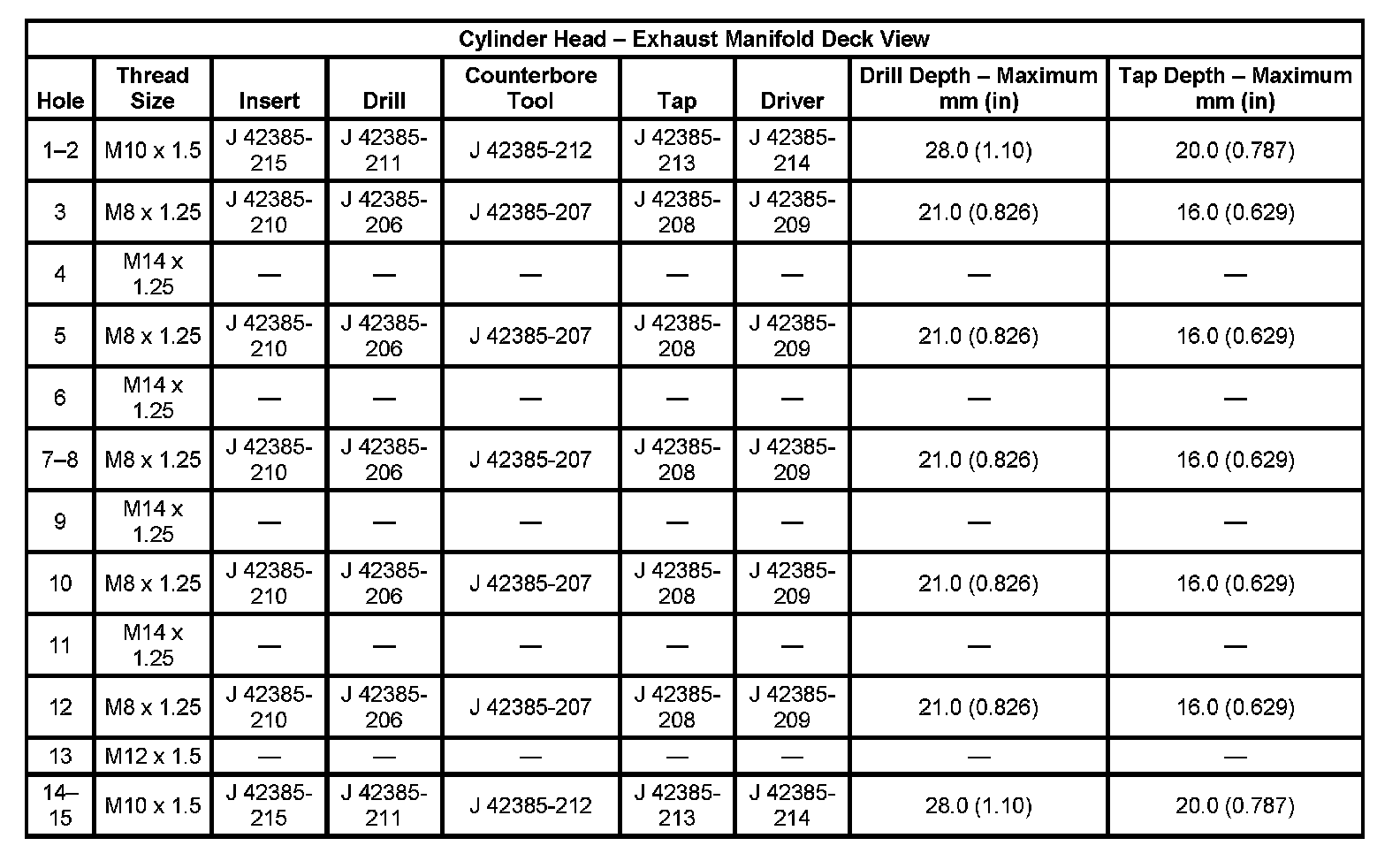

Cylinder Head - Exhaust Manifold Deck View
Cylinder Head:

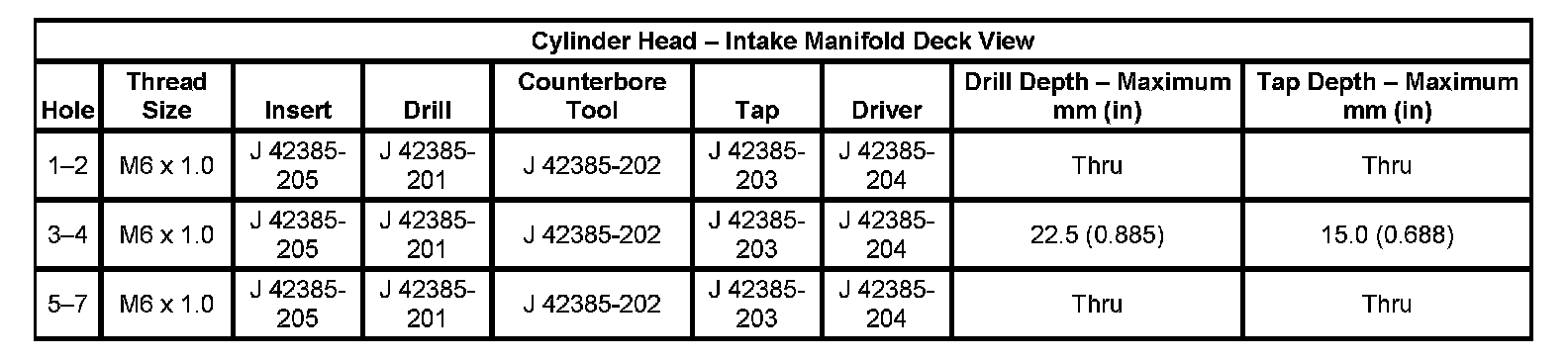

Cylinder Head - Intake Manifold Deck View
