2005 Chevrolet Tahoe 2WD V8-4.8L VIN VFACTORY OEM SERVICE PROCEDURE
Electronic Throttle Control Module: Service and Repair
THROTTLE ACTUATOR CONTROL (TAC) MODULE REPLACEMENT
REMOVAL PROCEDURE

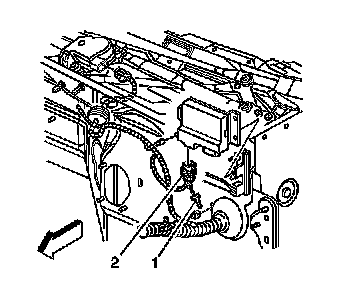

1. Disconnect the instrument panel (I/P) harness electrical connector (2).
2. Release the red connector position assurance (CPA) retainer.

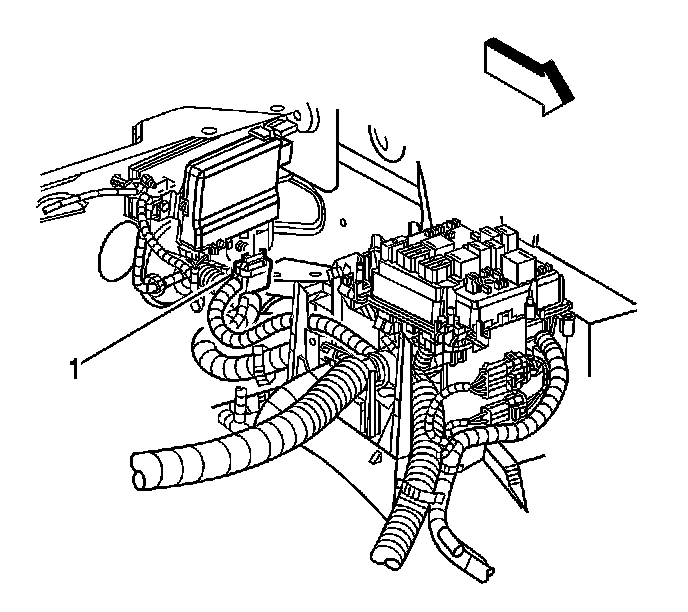

3. Disconnect the engine wiring harness electrical connector (1).

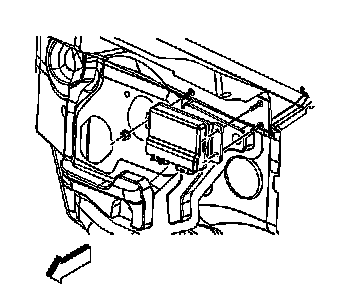

4. Remove the throttle actuator control (TAC) module nuts.
5. Remove the TAC module.
INSTALLATION PROCEDURE
1. Install the TAC module.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the TAC module nuts.
Tighten the nuts to 9 N.m (80 lb in).
3. Connect the engine wiring harness electrical connector (1).
4. Install the red CPA retainer.
5. Connect the I/P harness electrical connector (2).
