2005 Chevrolet Tahoe 2WD V8-4.8L VIN VFACTORY OEM SERVICE PROCEDURE
Mode 6 Data Vehicles With CAN System

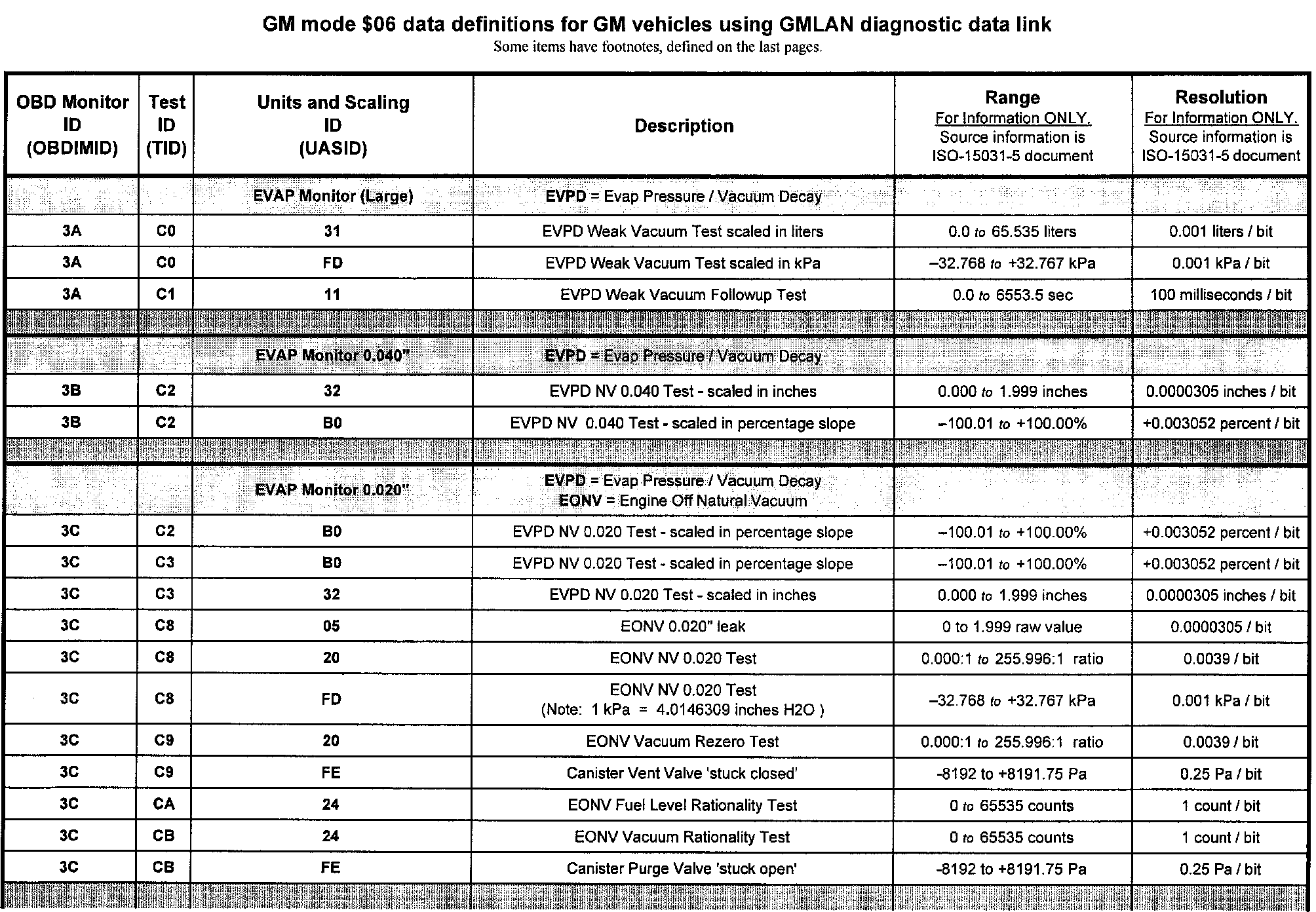

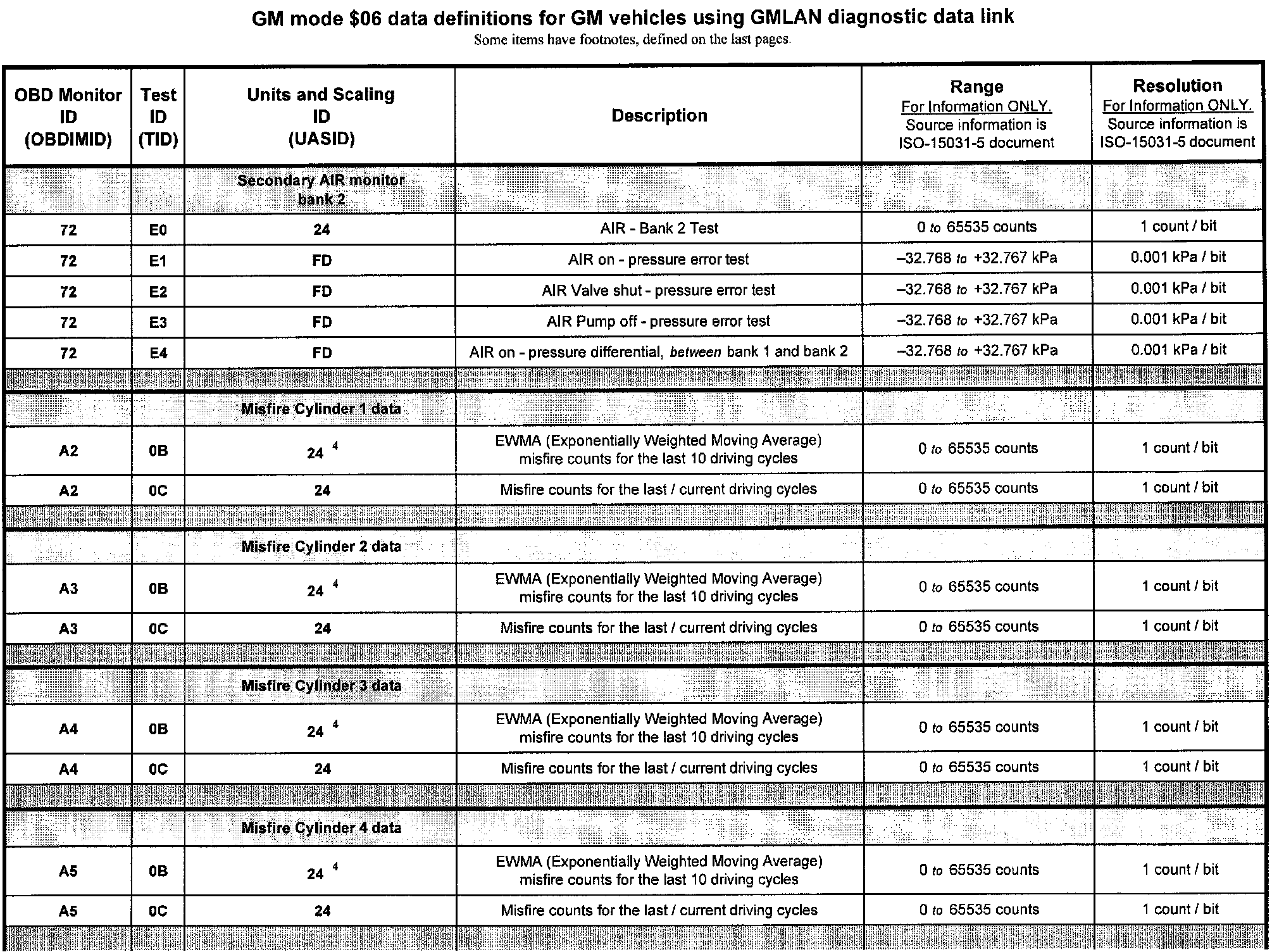

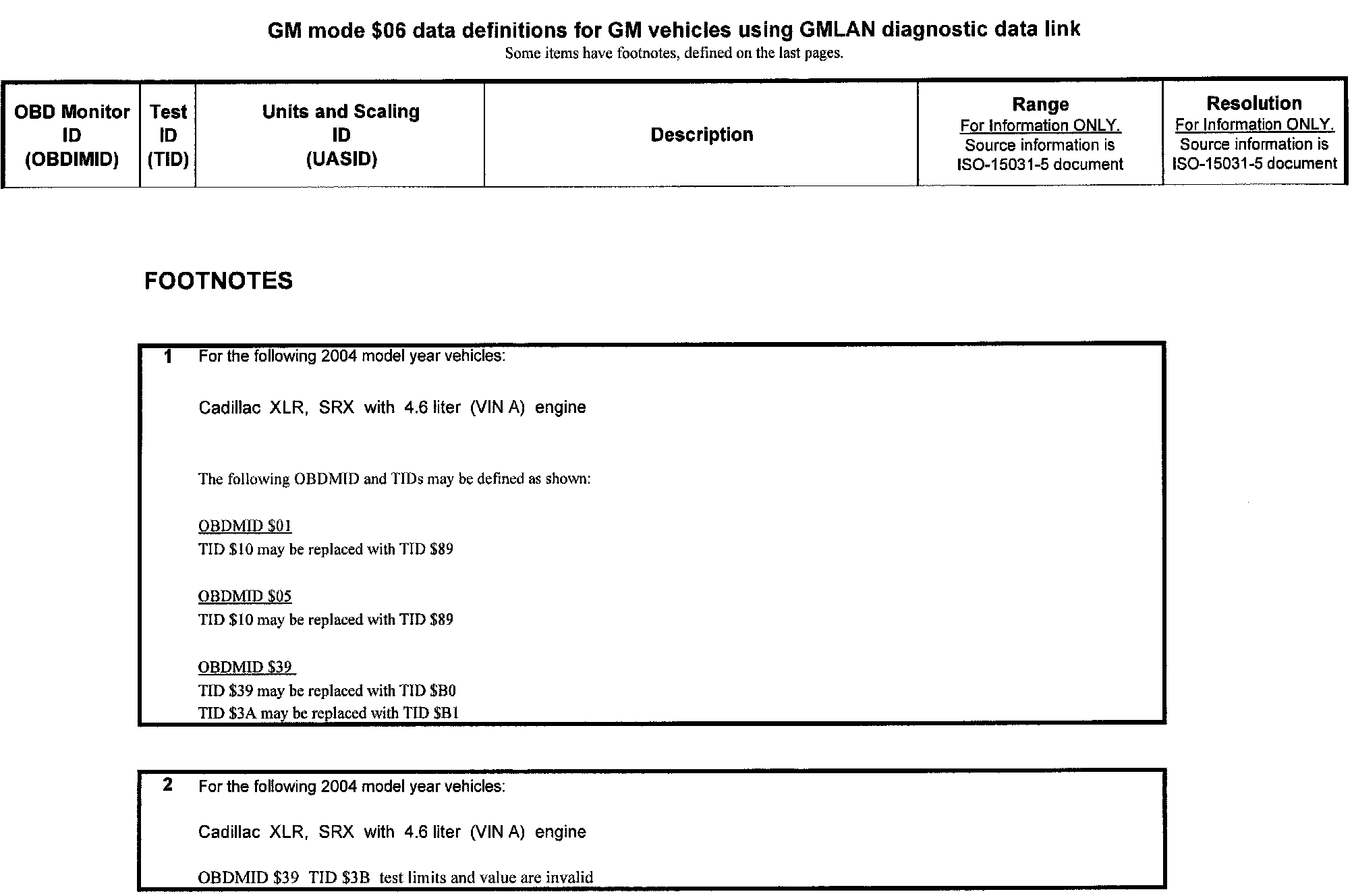

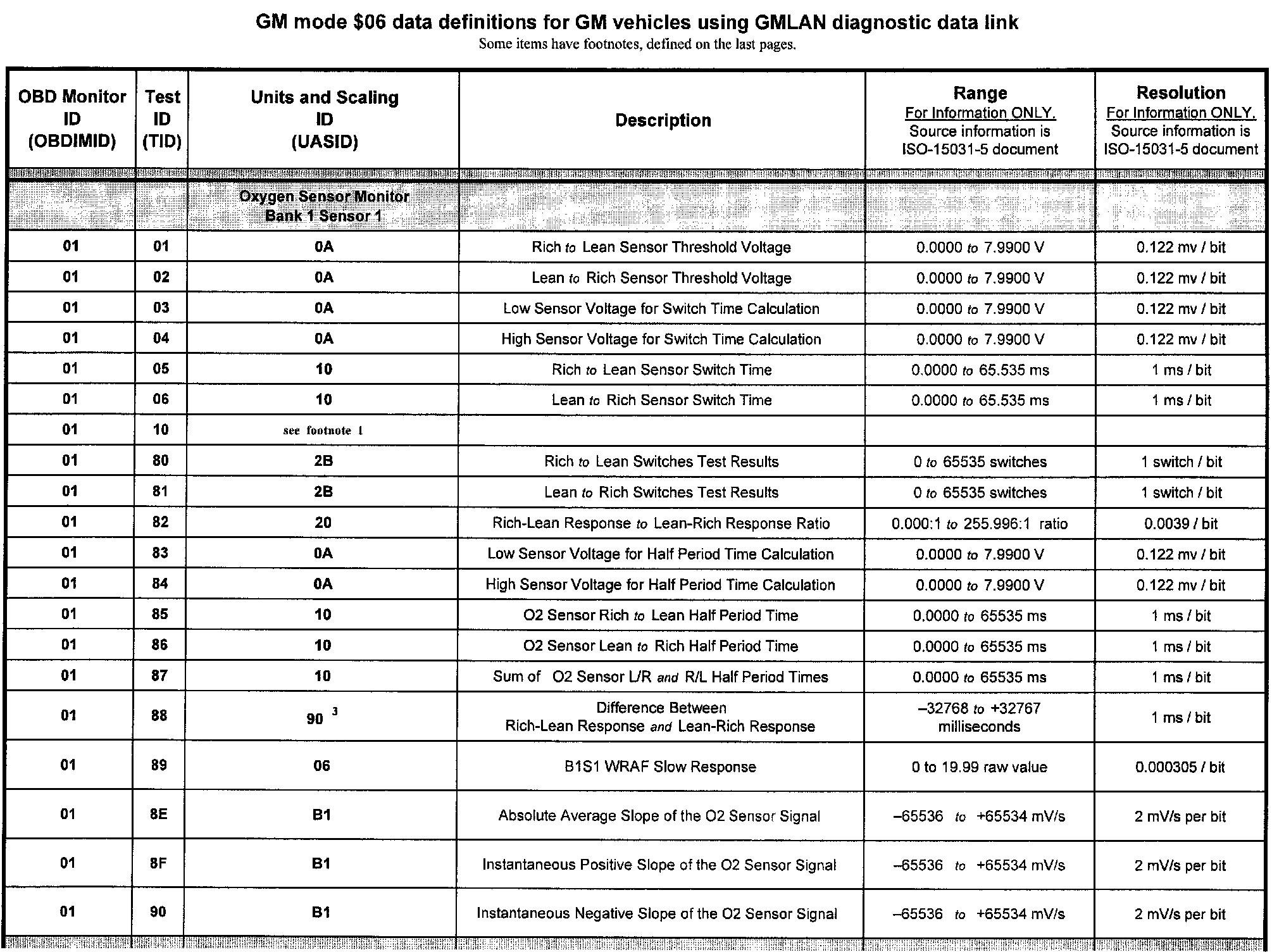

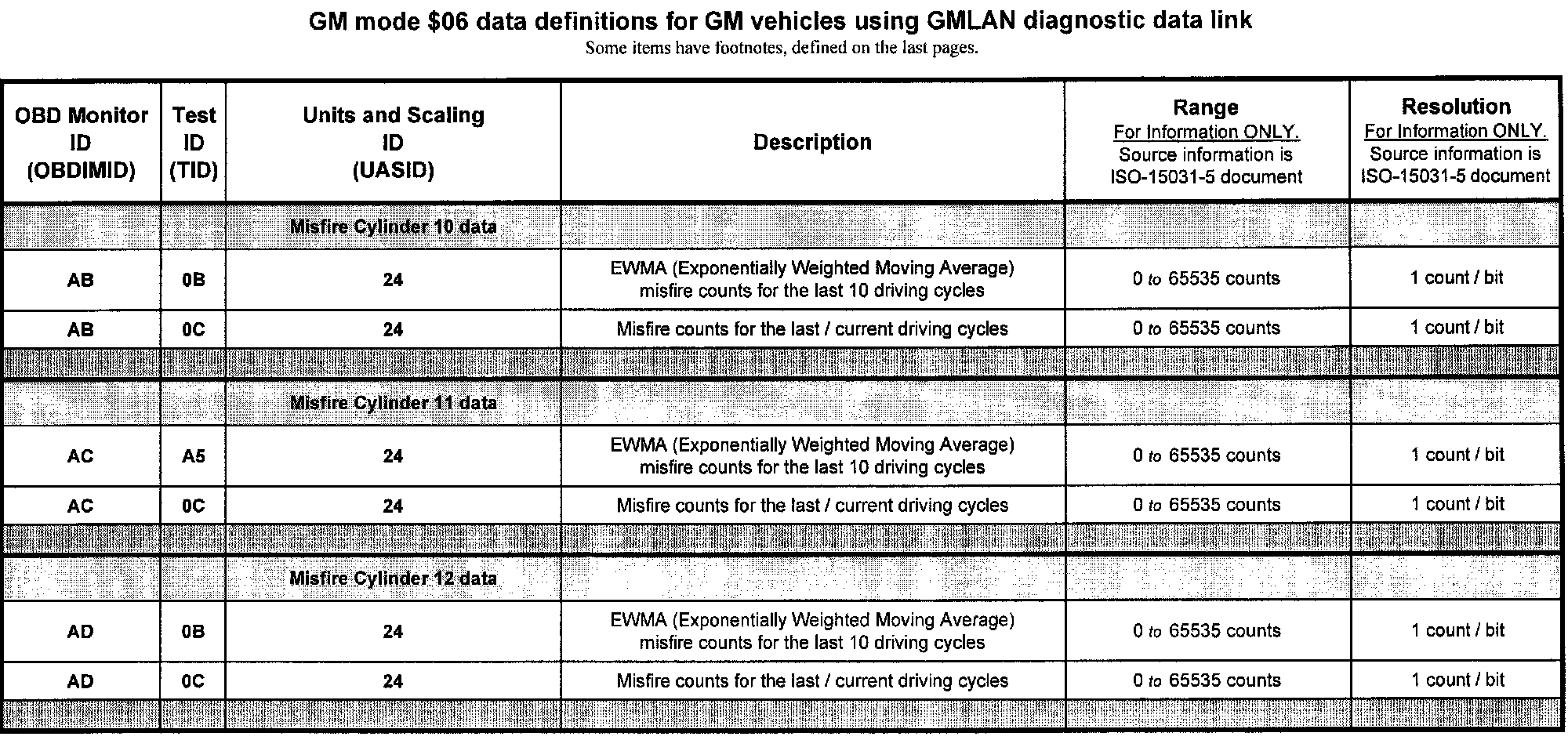

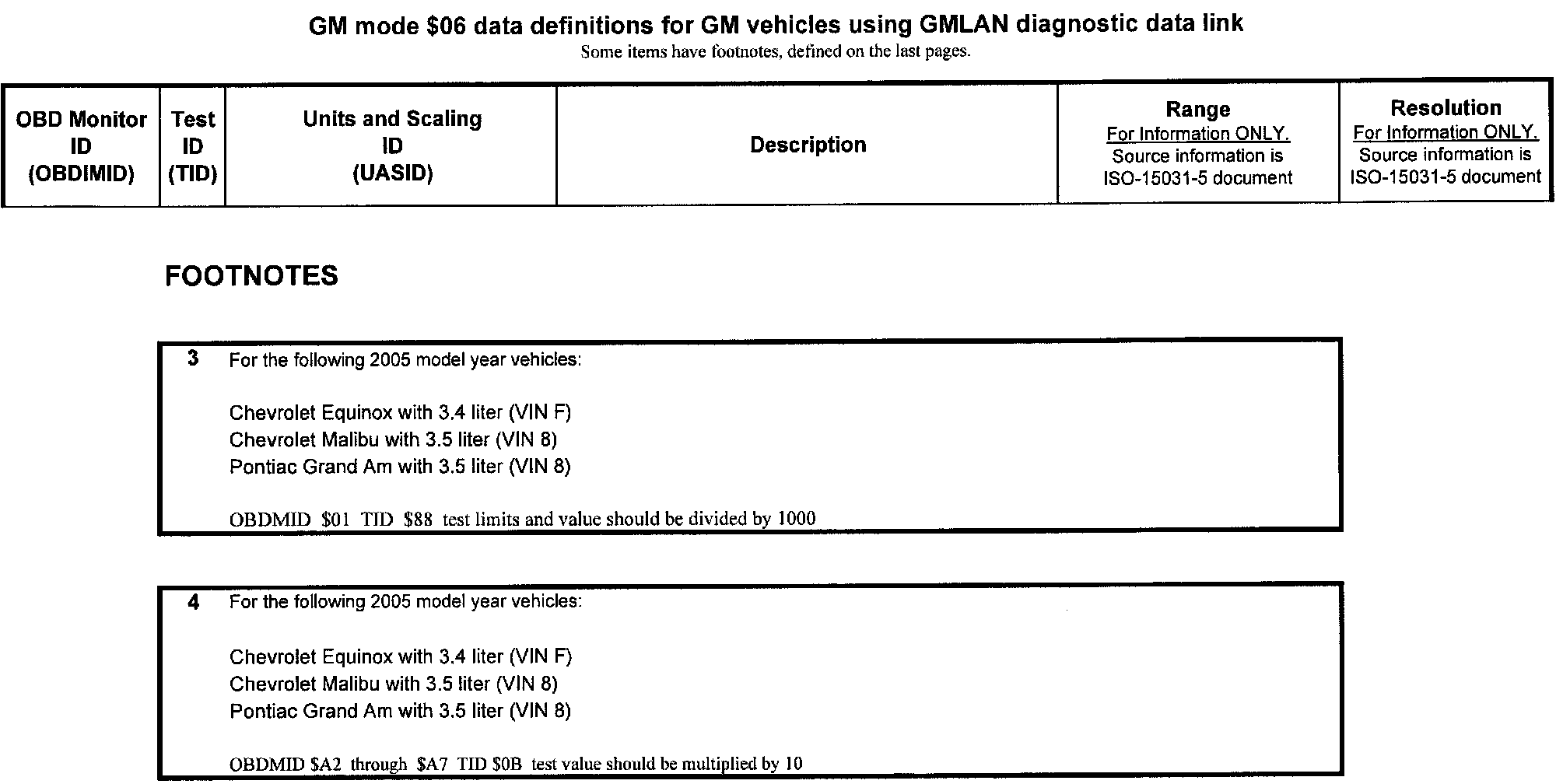

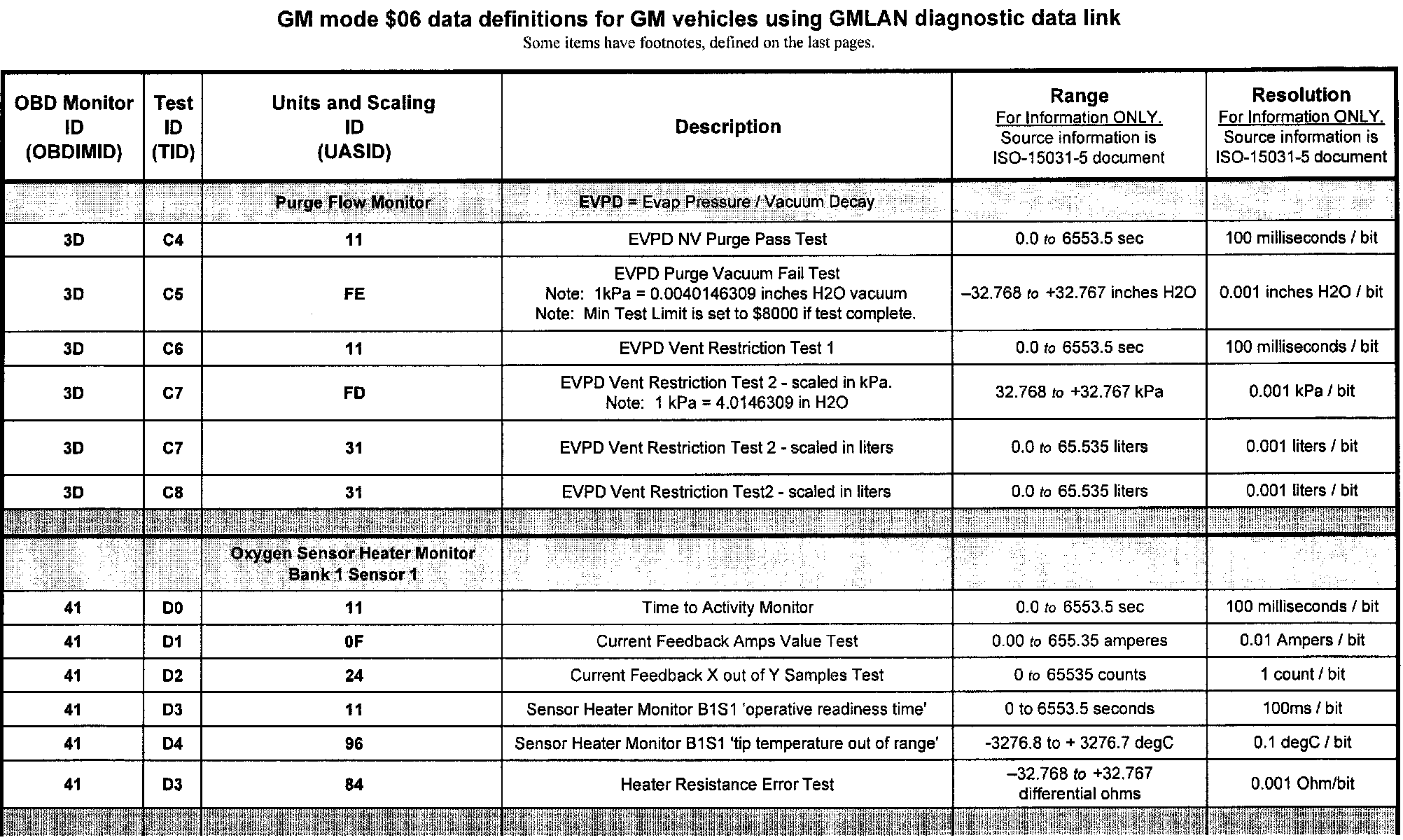

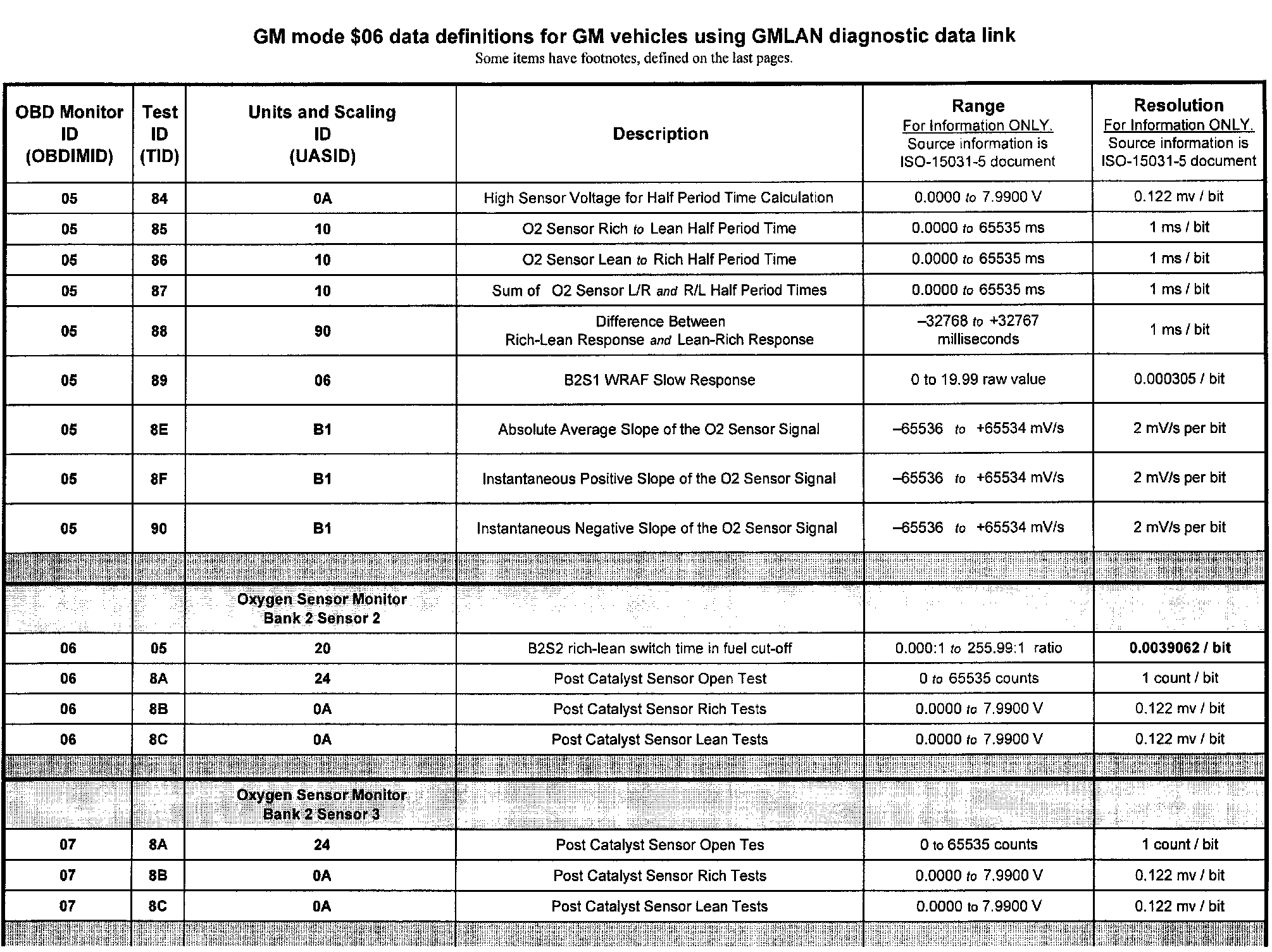

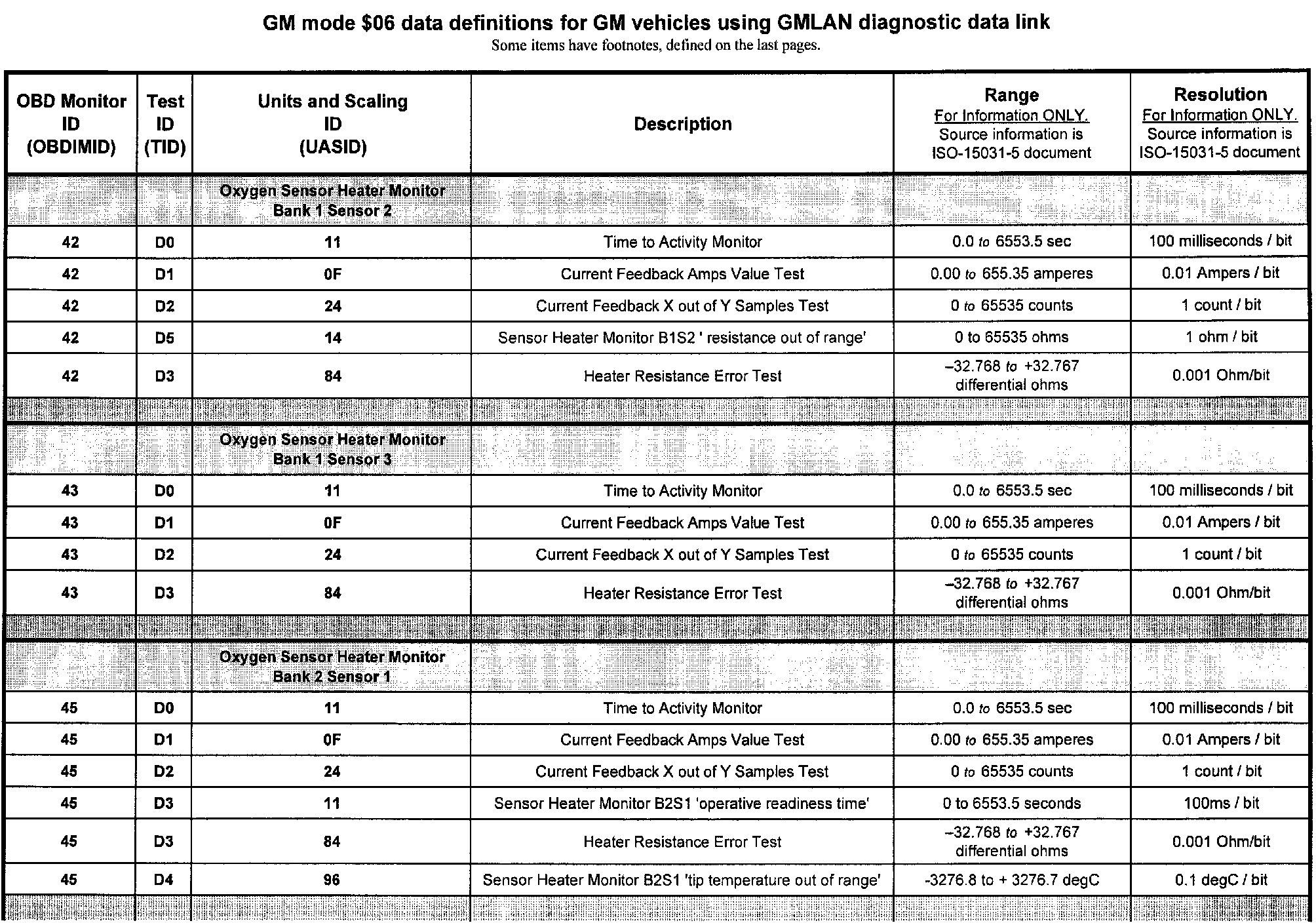

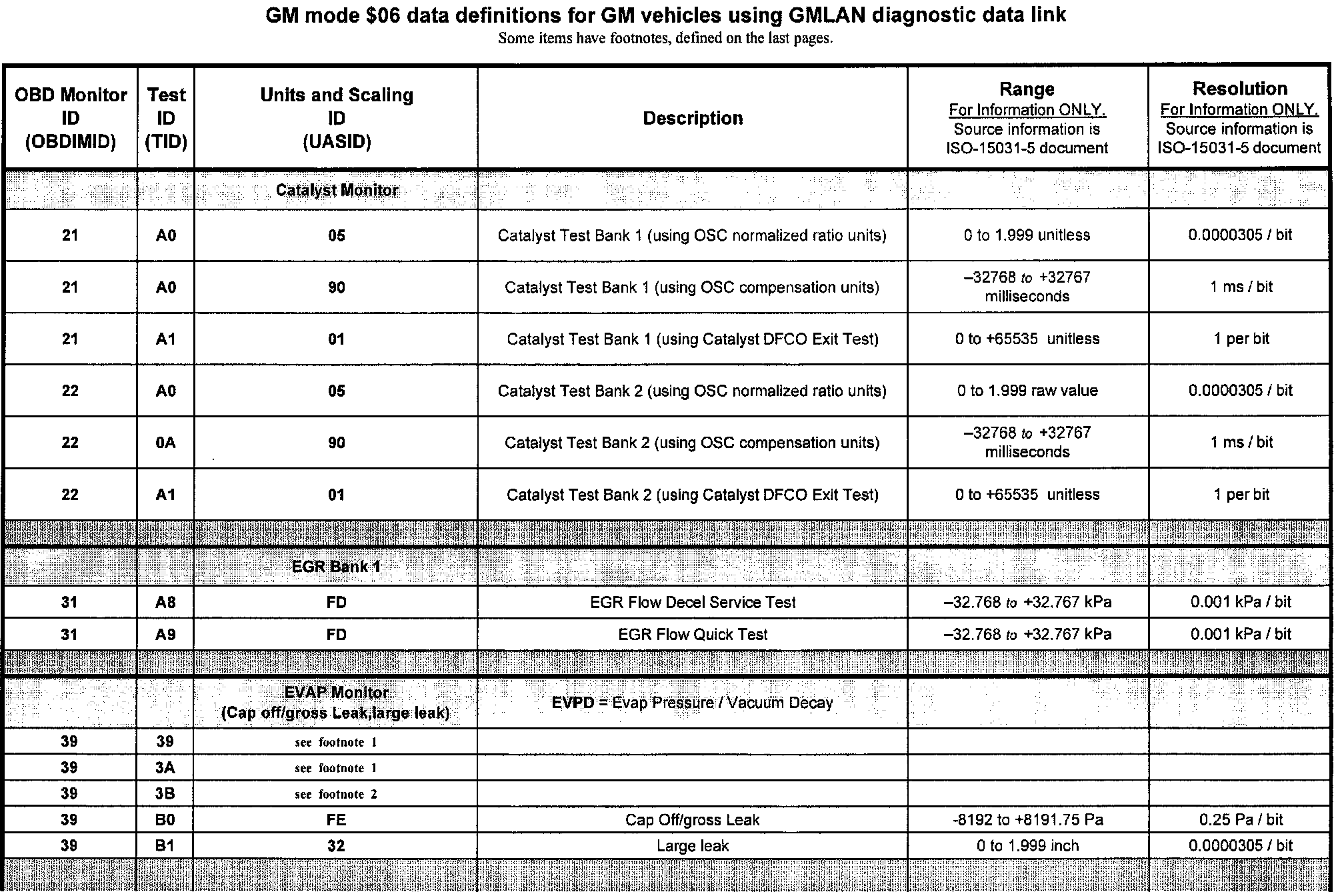

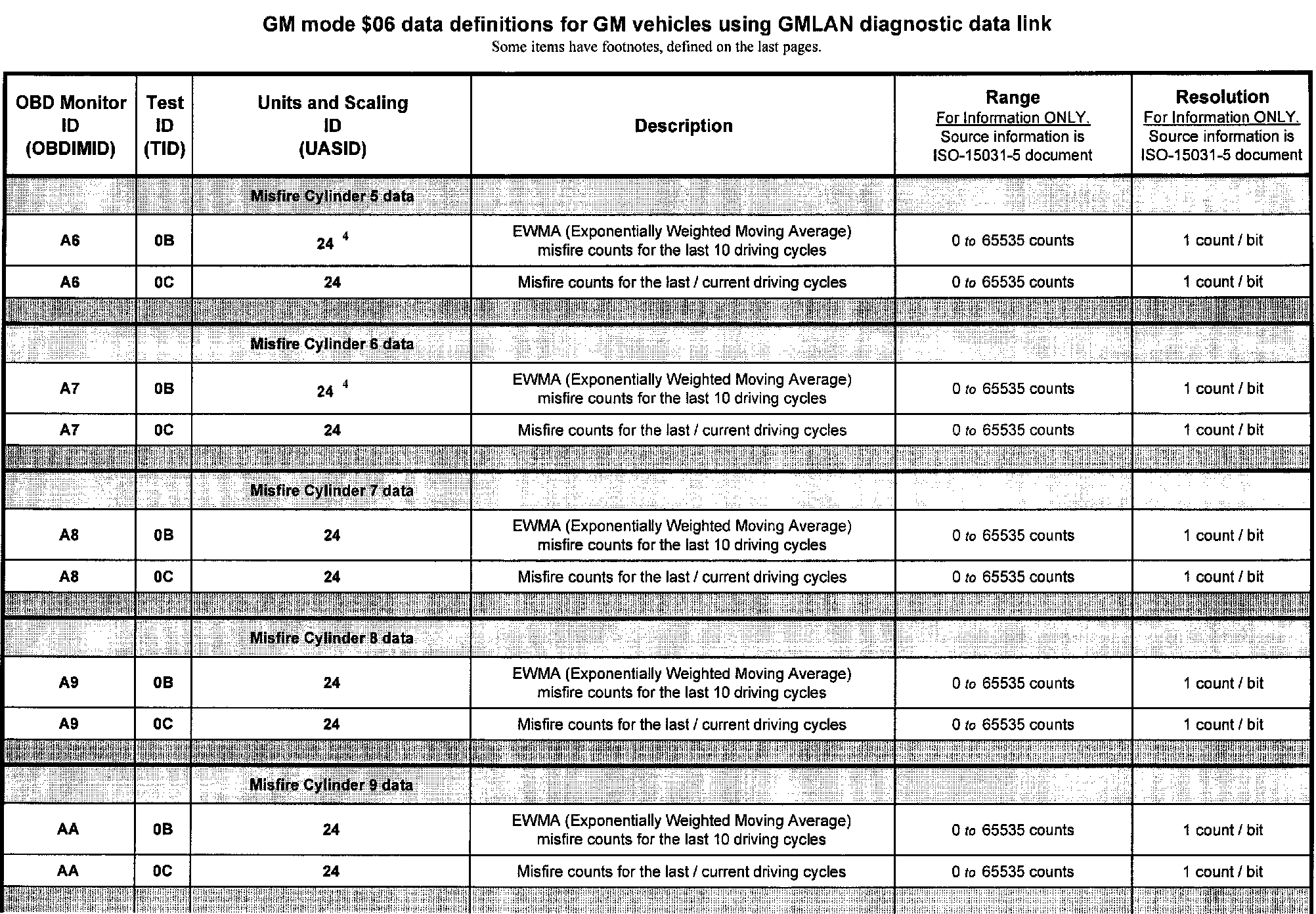

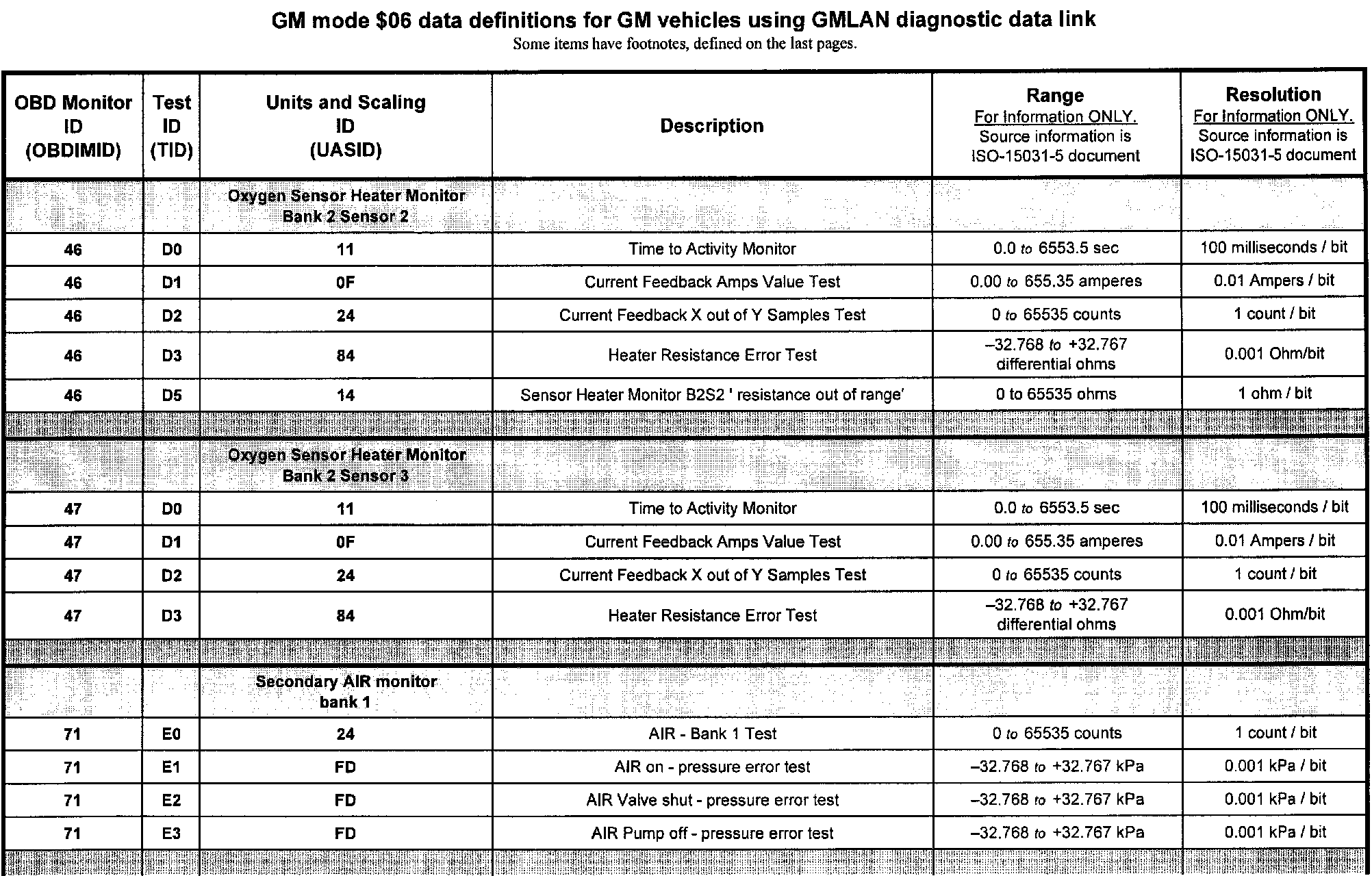

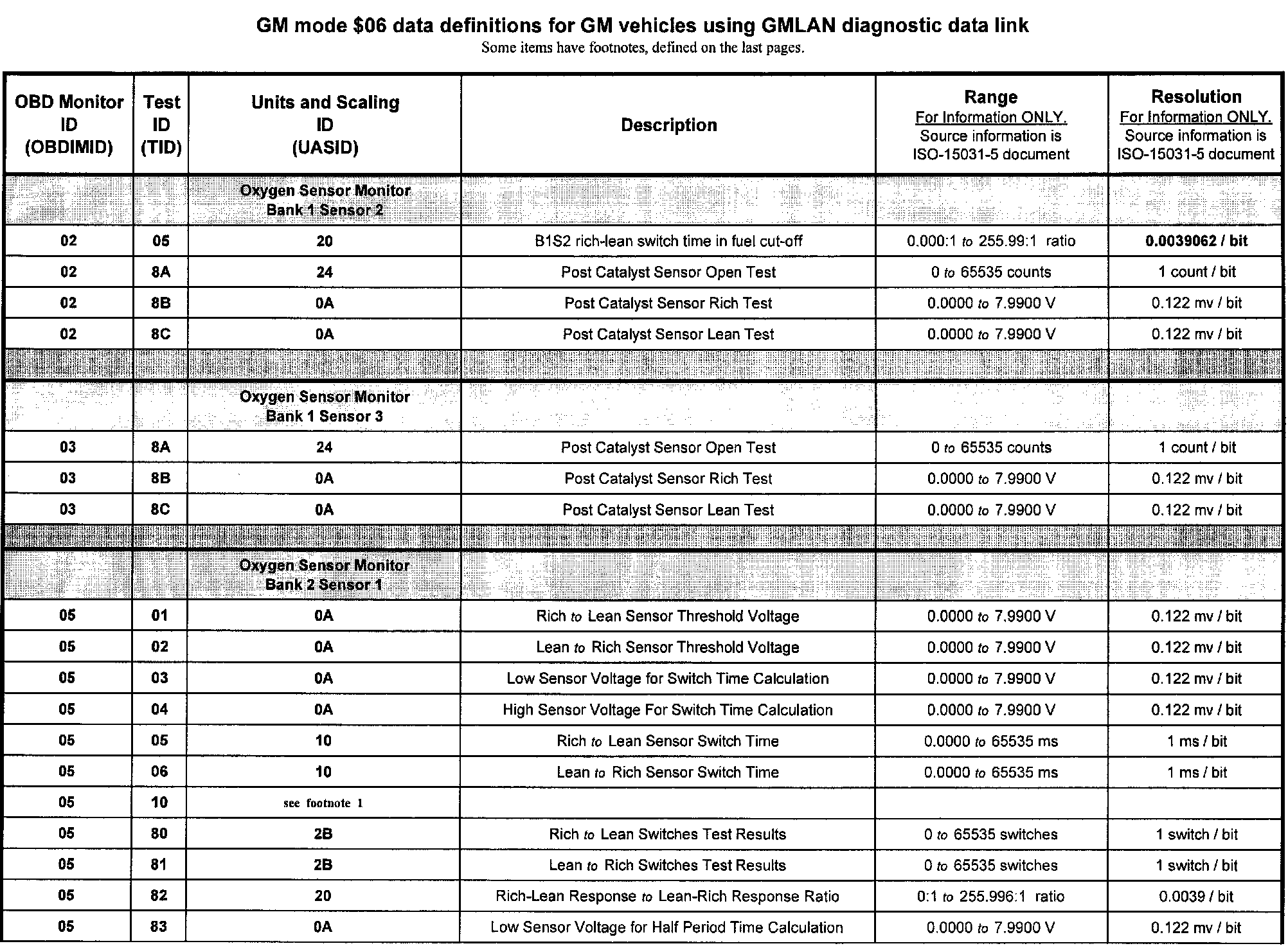

GMLAN Mode 6 Data Description Page 1:
GMLAN Mode 6 Data Description Page 2:
GMLAN Mode 6 Data Description Page 3:
GMLAN Mode 6 Data Description Page 4:
GMLAN Mode 6 Data Description Page 5:
GMLAN Mode 6 Data Description Page 6:
GMLAN Mode 6 Data Description Page 7:
GMLAN Mode 6 Data Description Page 8:
GMLAN Mode 6 Data Description Page 9:
GMLAN Mode 6 Data Description Page 10:
GMLAN Mode 6 Data Description Page 11:
GMLAN Mode 6 Data Description Page 12:
GMLAN Mode 6 Data Description Page 13:

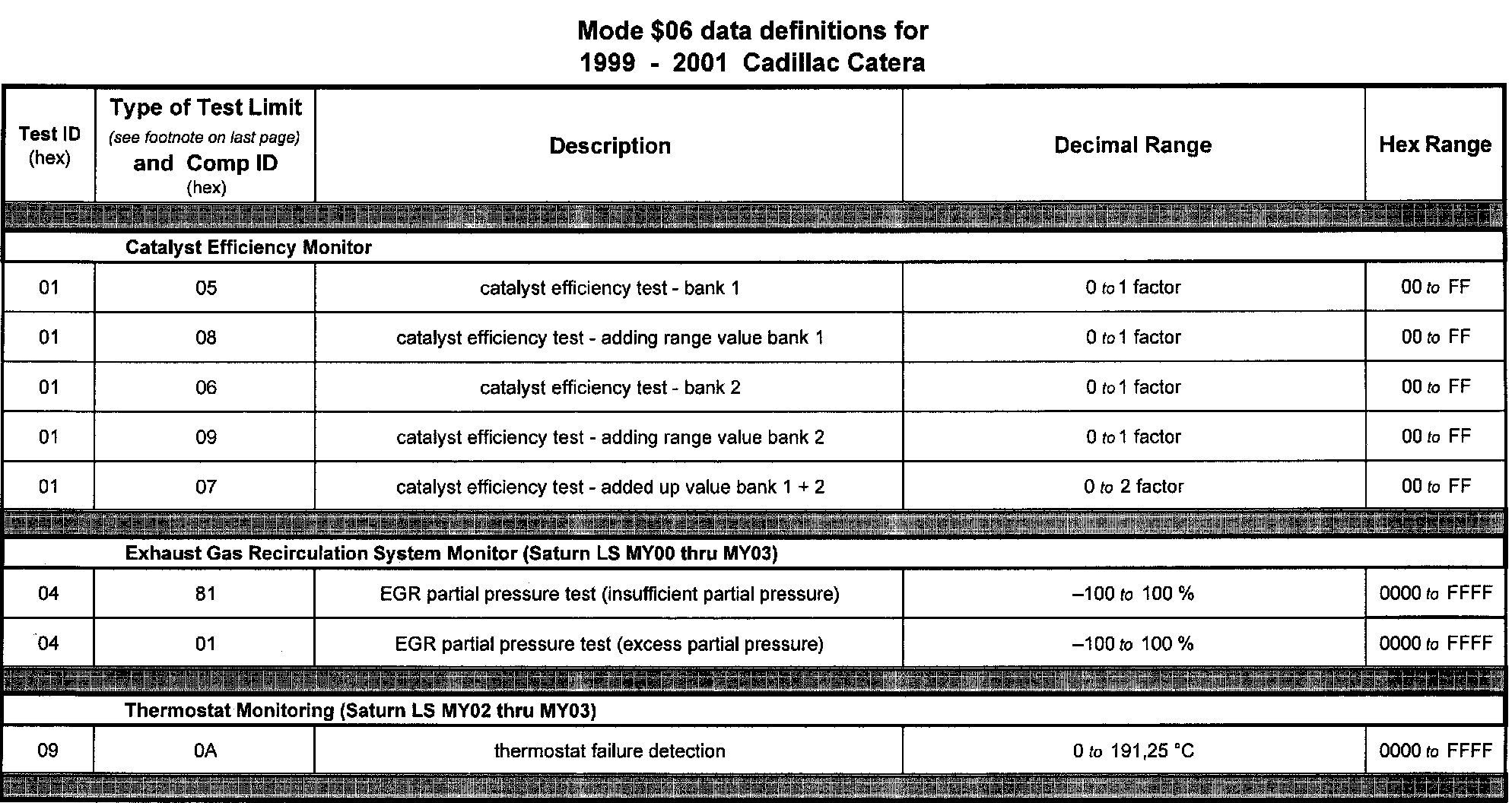

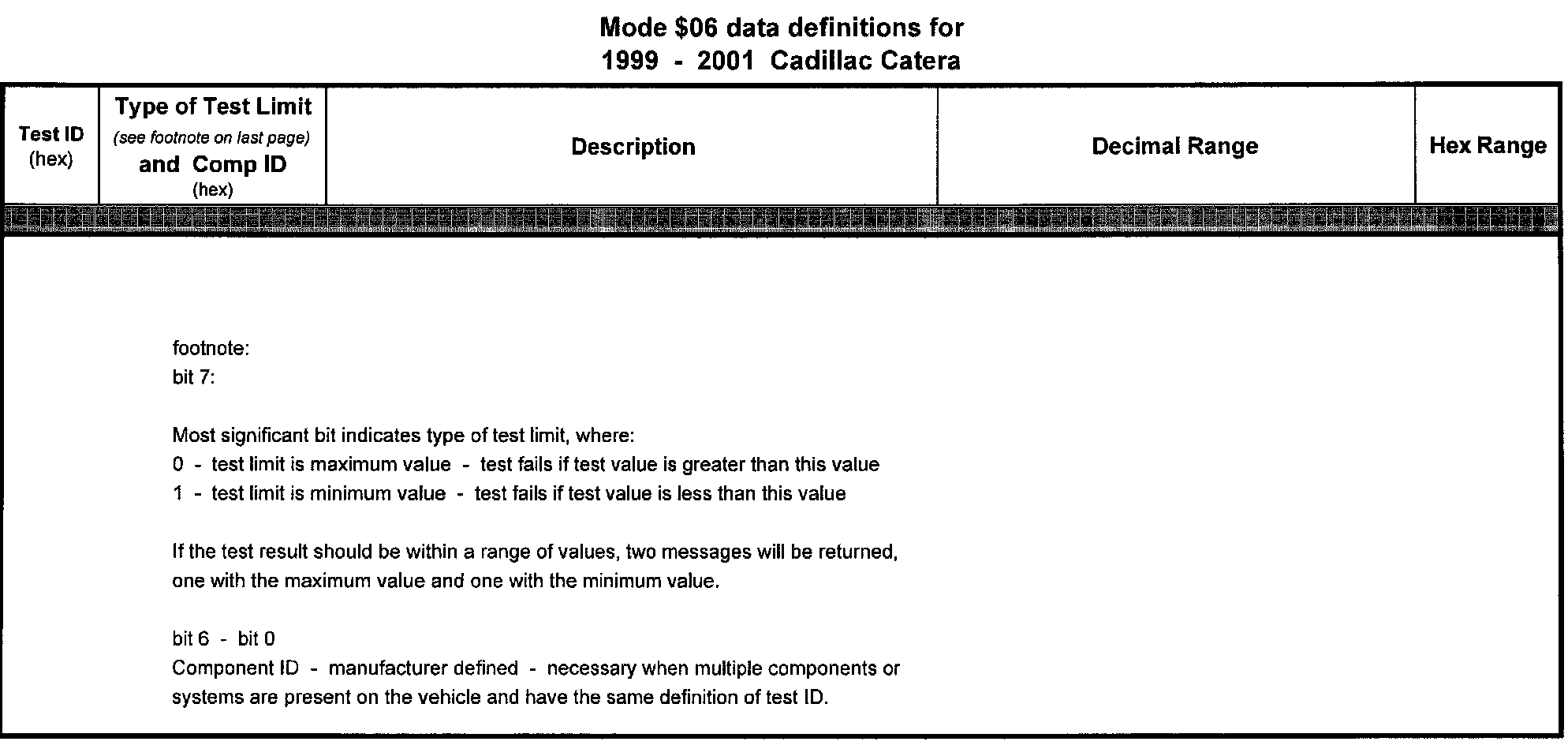

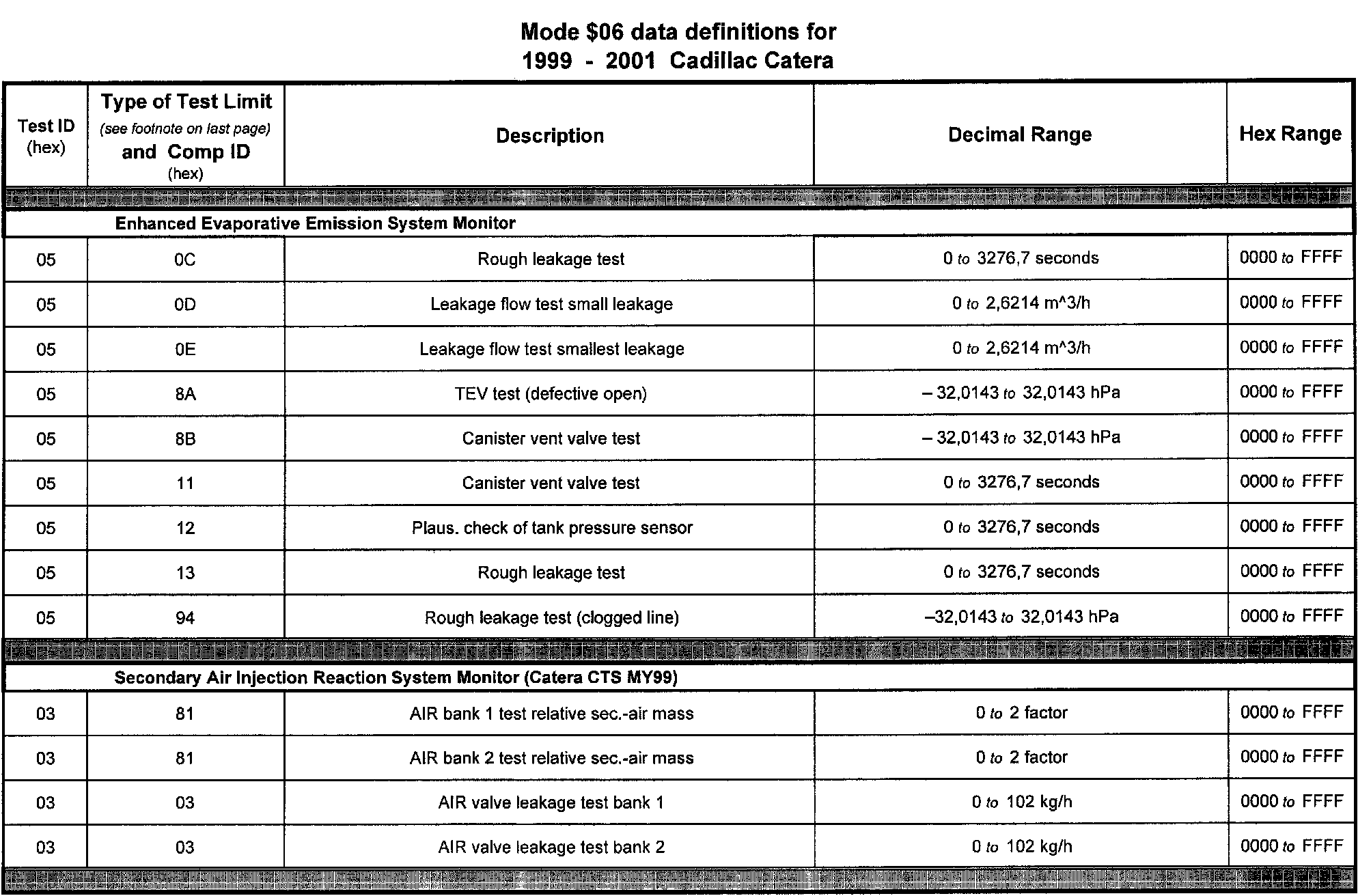

1999-2001 Cadillac Catera Mode 6 Description Page 1:
1999-2001 Cadillac Catera Mode 6 Description Page 2:
1999-2001 Cadillac Catera Mode 6 Description Page 3:
