2005 Chevrolet Tahoe 2WD V8-4.8L VIN VFACTORY OEM SERVICE PROCEDURE
Fuel Injector Balance Test With Special Tool
FUEL INJECTOR BALANCE TEST WITH SPECIAL TOOL
DESCRIPTION
The scan tool is first used to energize the fuel pump. The fuel injector tester is then used to pulse each injector for a precise amount of time, allowing a measured amount of fuel into the manifold. This causes a drop in system fuel pressure that can be recorded and used to compare each injector.
TEST DESCRIPTION

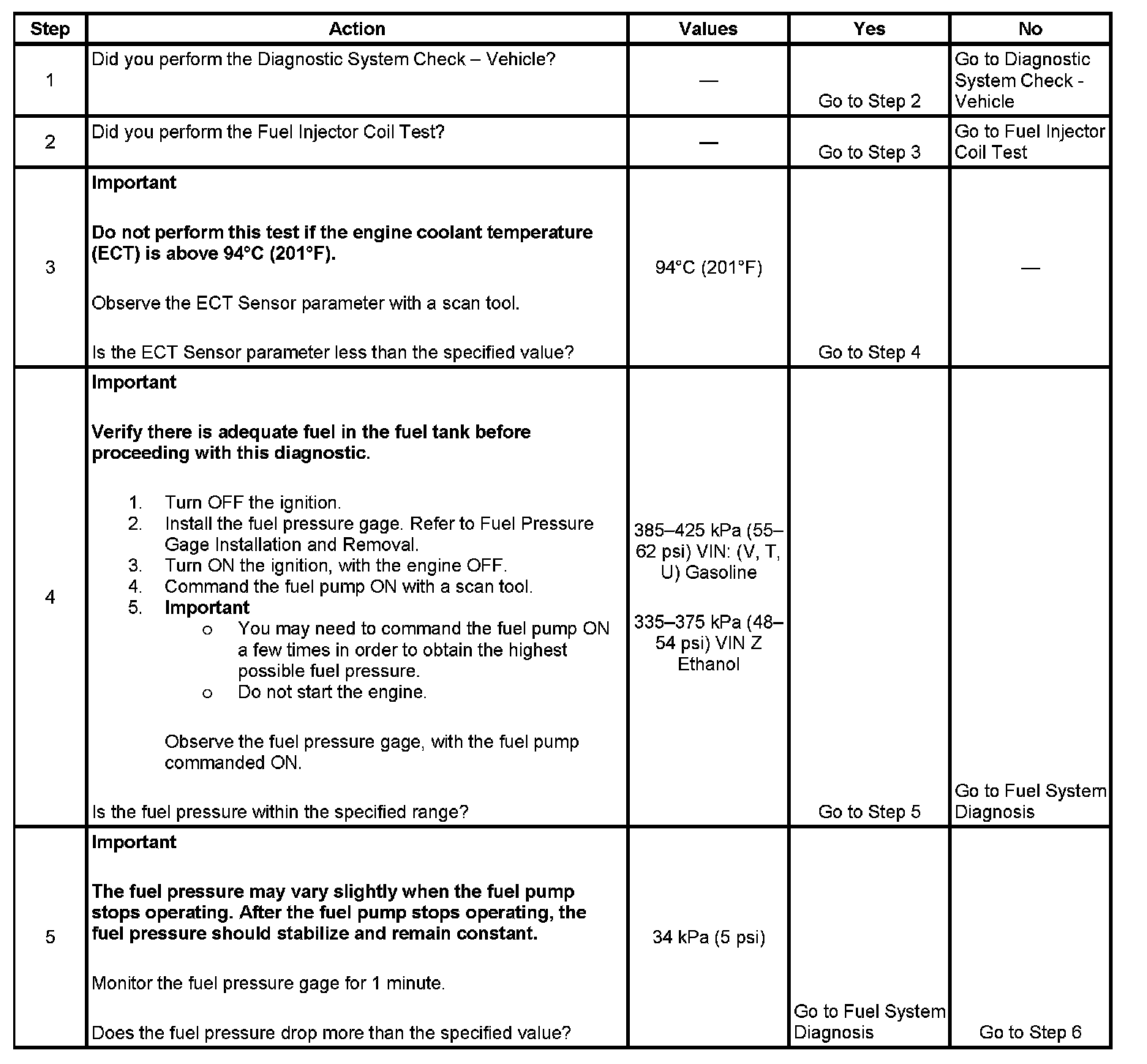

Steps 1 - 5:

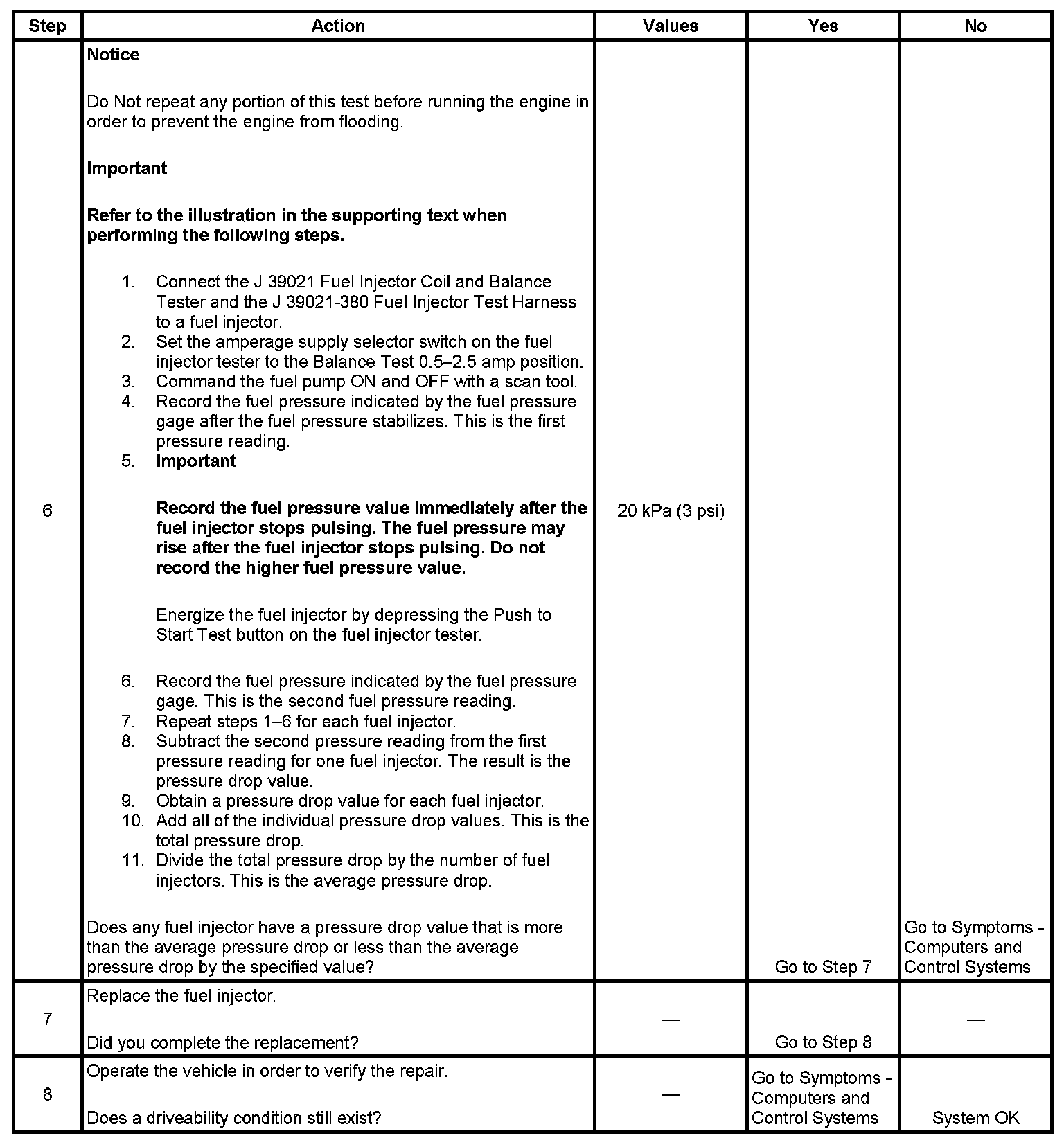

Steps 6 - 8:
The number below refers to the step number on the diagnostic table.

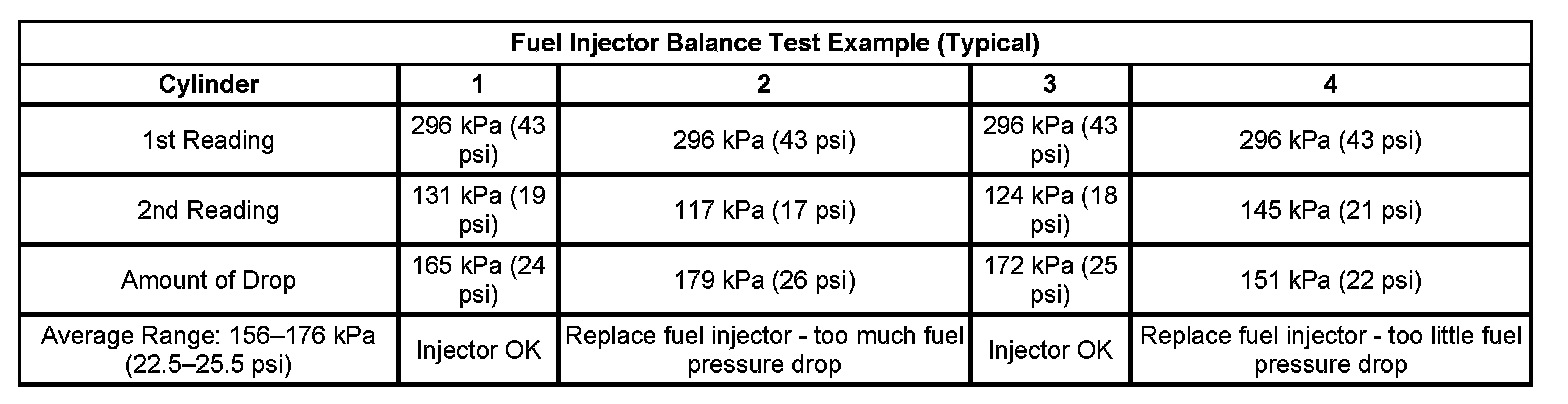

Fuel Injector Balance Test Example:

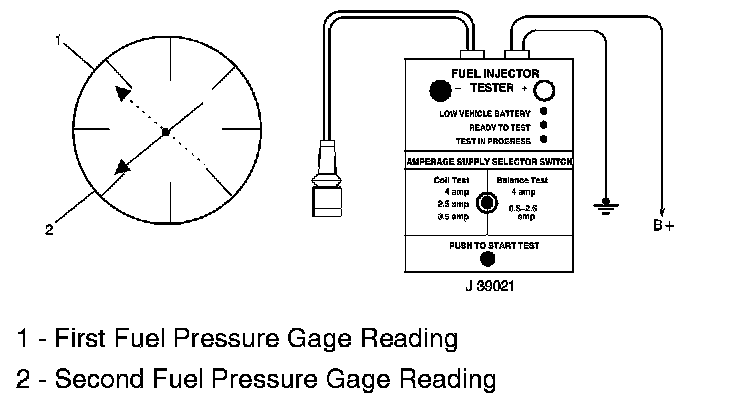

6. If the pressure drop value for each fuel injector is within 10 kPa (1.5 psi) of the average pressure drop value, the fuel injectors are flowing properly. Calculate the pressure drop value for each fuel injector by subtracting the second pressure reading from the first pressure reading. Refer to the illustration.
